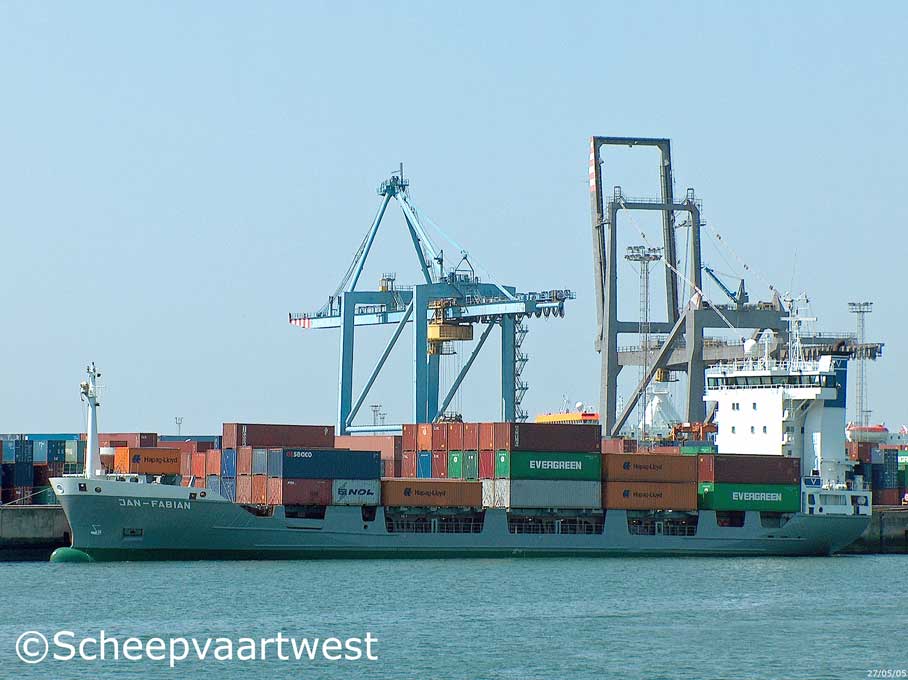

Jan Fabian
Zeebrugge 27 May 2005



Name

JAN FABIAN

Type

Containership - Feeder

IMO-number

9144689

Call sign

VQEF5

Flag

United Kingdom

Previous flag

19.01.2003 Germany

Port of registry

London

GT

3.999 t

DWT

Summer: 5.202 t

NT

2.176 t

Number of 20ft containers

508

Reefer capacity

68

Length

101,15 m overall
96,00 m between perpendiculars

96,13 m registered

Breadth

18,20 m over all

Draught

Summer: 6,547 m

Forecastle

9,33 m

Poop

9,00 m

Freeboard

1.700 mm

Speed

15,3 knots

Depth

8,25 m moulded

Built

1998

Keel laid

07.12.1995

Launch date

17.02.1995

Date of completion

03.1998

Builder

J.J. Sietas KG Schiffswerft GmbH & Co.
Neuenfelder Fährdeich 88
21129 Hamburg
Federal Republic of Germany

Yard number

1139

Hull material

Shipbuilding steel (standard)

Hull type

Single hull

Partly double bottom

Watertight bulkheads

5

Continuous decks

1

Main engine

1x MAK 9 M 32 - 4 stroke single acting 9 cylinder 320 x 480 mm diesel engine - 3.825 kW

Year of manufacture: 1998

Manufacturer: Krupp Mak Maschinenbau GmbH
Falckensteiner Str. 2
24159 Kiel
Federal Republic of Germany

Propeller

1x Controllable pitch propeller - aft

Electric installations

1x 380/220 V - 640 kVA

1x 380 V - 850 kVA

1x 380 V - 40 kVA

Shaft generator

1x 850 kVA

Generators

2x Main diesel generatorsets each 320 kVA

Emergency generator

1x Diesel generatorset 40 kVA

Compressed air receivers

2x Receivers, each 500 litres - 30,0 bar

Bow thruster

1x Transverse thruster JASTRAM - 400 kW, forward

Cargo capacity

Bale: 7.013 m³

Grain: 7.247 m³

Tank capacities

Ballast: 2.109 m³

Fuel oil: 406 m³

Anchor equipment

3x Anchors weight each 3.300 kg

Chain length: 495,00 m

Operator

Heinz Georg Vöge
Hamburg
Germany

Owner

Rederij Vöge
Hamburg
Germany

Renamed

22.11.2006 NOR Feeder
