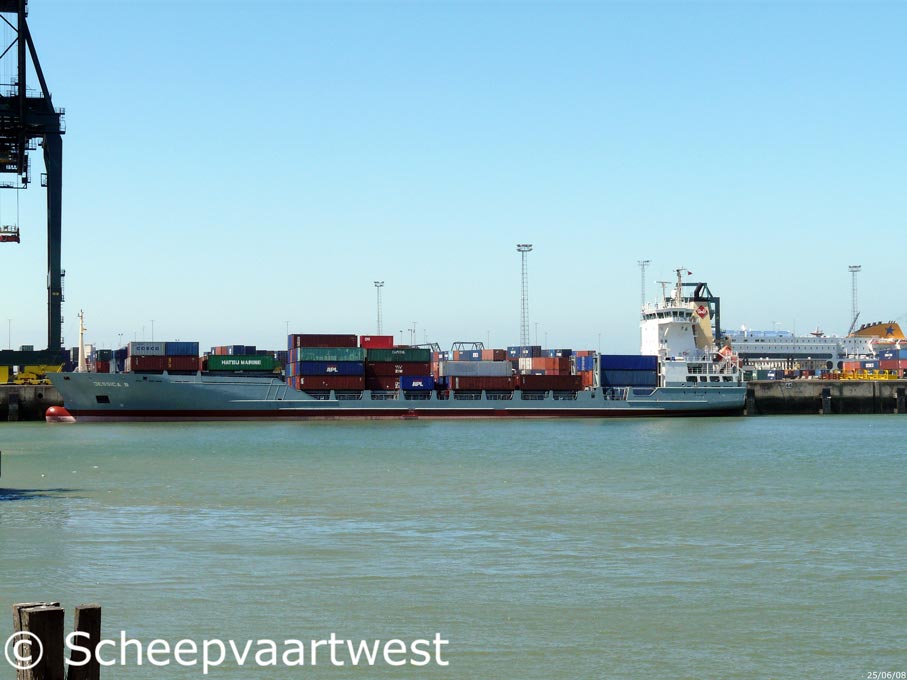

| Zeebrugge 25 June 2008 |
|
Name |
JESSICA B |
|
Previous names |
29.11.2000 Jessica 04.08.2002 Lucy Borchard 2002 Jessica B |
|
Type |
Cellular Containership |
|
IMO-number |
9226384 |
|
Call sign |
V2OU8 |
|
Flag |
Antigua & Barbuda |
|
Previous flags |
29.11.2000-Germany 21.10.2002-Antigua & Barbuda 15.10.2004-United Kingdom |
|
Port of registry |
St. John's |
|
GT |
6.326 t |
|
DWT |
7.975 t |
|
NT |
3.251 t |
|
Number of 20ft containers |
660 |
|
Container cap. at 14t |
400 |
|
Reefer containers |
102 |
|
Length |
133,21 m overall 125,30 m between perpendiculars 123,68 m registered |
|
Breadth |
18,70 m registered |
|
Draught |
Summer: 7,295 m |
|
Forecastle |
35,70 m |
|
Poop |
12,60 m |
|
Depth |
9,30 moulded |
|
Speed |
18,2 knots |
|
Built |
2000 |
|
Keel laid |
04.03.1999 |
|
Launch date |
05.11.2000 |
|
Date of completion |
12.2000 |
|
Builder |
J.J. Sietas KG Schiffswerft GmbH & Co. |
|
Yard number |
1152 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Single hull Partly double bottom |
|
Watertight bulkheads |
7 |
|
Continuous decks |
2 |
|
Main engine |
1x MaK 8 M 43 - 4 stroke single acting 8 cylinder 430 x 610 mm diesel engine - 6.600 kW Year of manufacture: 2000 Manufacturer: Caterpillar Motoren GmbH & Co. KG |
|
Number of screws |
1x Controllable pitch propeller - aft |
|
Boilers |
1x Thermal oil heater, oil fired - 10,0 bar 1x Thermal oil heater, exhaust gas heated - 10,0 bar Year of manufacture: 2000 Manufacturer: PWT Prozesswärmeträgertechnik GmbH |
|
Electric installations |
1x 380/220 V - 1.250 kVA 1x 380 V - 1.525 kVA 1x 380 V - 73 kVA |
|
Shaft generator |
1x 1.525 kVA |
|
Generators |
2x Main diesel generatorsets each 625 kVA |
|
Emergency generator |
1x Diesel generatorset 73 kVA |
|
Compressed air receivers |
2x Receivers each 500 litres - 30,0 bar |
|
Bow thruster |
1x Fixed pitch propeller LIPS - 720 kW, forward |
|
Cargo capacity |
Bale: 9.607 m³ Grain: 10.845 m³ |
|
Tank capacities |
Water ballast: 3.590 m³ Fuel oil: 745 m³ |
|
Anchor equipment |
3x Anchors weight each 4.050 kg Chain length: 522,50 m |
|
Crew size |
19 |
|
Gear |
None |
|
Manager |
Reederei Bartels Gerd+Mirko Bartels |
|
Owner |
MS "JESSICA" Schiffahrts-GmbH & Co. KG |
