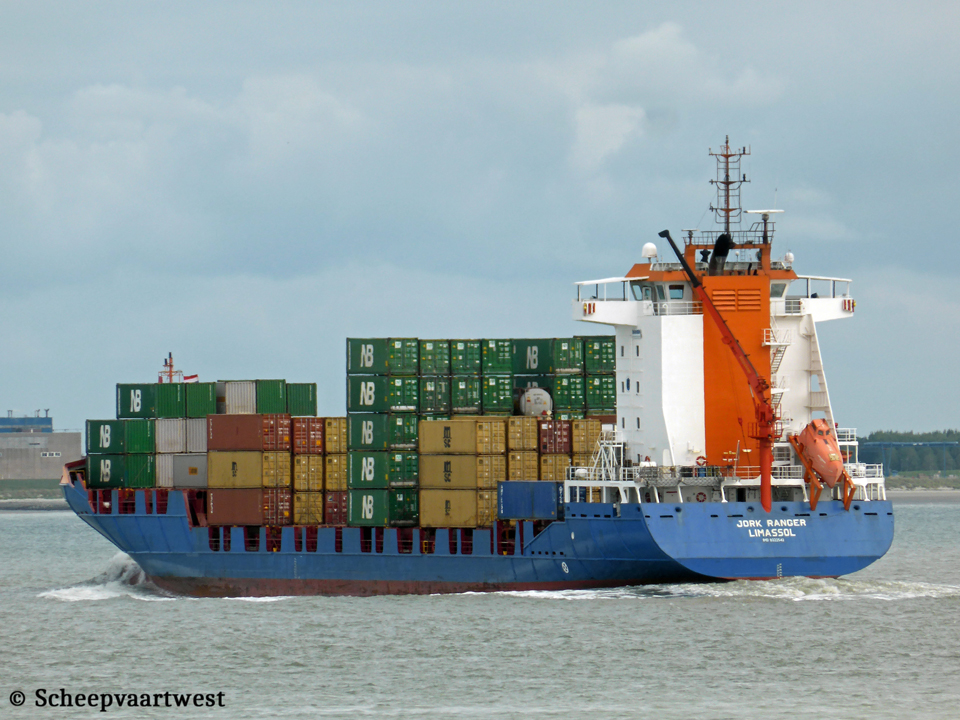

| Westerschelde 14 September 2012 |
 |
|

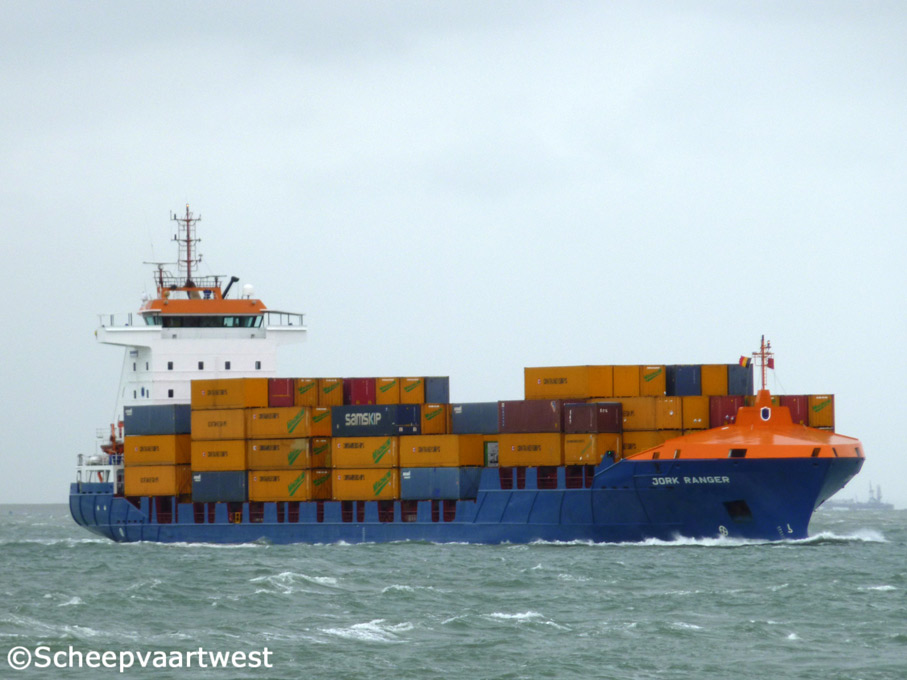

| Westerschelde 08/09/15 | |
|
Name |
JORK RANGER |
|
Previous names |
2005 Smaland 2007 Jork Ranger 2008 Eucon Progress 2009 Jork Ranger |
|
Type |
Containership |
|
IMO-number |
9322542 |
|
Call sign |
C4FA2 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
GT |
7.852 t |
|
DWT |
9.288 t |
|
NT |
3.363 t |
|
Number of 20ft containers |
804 |
|
Container capacity 14t |
518 |
|
Reefer capacity |
120 |
|
Length |
140,60 m overall 130,68 m registered |
|
Breadth |
21,79 m registered |
|
Draught |
7,327 m |
|
Forecastle |
37,92 m |
|
Poop |
9,60 m |
|
Depth |
9,50 m moulded |
|
Speed |
18,0 knots |
|
Built |
2005 |
|
Keel laid |
29/06/04 |
|
Launch date |
27/05/05 |
|
Date of completion |
27/10/05 |
|
Builder casco |
Santierul Naval Damen Galati S.A. Strada Moruzzi Alexandru 132 800223 Galati, Galati Romania Yard number: 1040 |
|
Builder completion |
Damen Hoogezand Scheepswerf B.V. Foxtol The Netherlands Yard number: 846 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
5 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 9M43C - 4 stroke 9 cylinder 430 x 610 mm combustion engine 8.400 kW / 11.420 hp at 500 rpm Year of manufacture: 2005 Manufacturer: Caterpillar Motoren GmbH & Co. KG Falckensteiner Str. 2 24159 Kiel Federal Republic of Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 140 rpm |
|
Boilers |
1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating Surface: 126,0 m² Year of manufacture: 2005 Manufacturer: Alfa Laval Aalborg B.V. Ohmweg 8 3208 KE Spijkenisse The Netherlands 1x Thermal oil heater, oil fired - 13,0 bar Heating Surface: 43,0 m² Year of manufacture: 2005 Manufacturer: Alfa Laval Aalborg A/S Gasvaerksvej 24 9100 Aalborg Kingdom of Denmark |
|
Electric installation |
1x Plant 440 V - 2.000 kVA 1x Plant 440 V - 123,8 kVA 1x Plant 24 V - 140 Ah 1x Plant 24 V - 600 Ah |
|
Shaft generator |
1x 2.000 kVA / 1.600 kW |
|
Generators |
2x Scania DI-16 44M diesel generatorsets each 433 kW |
|
Emergency generator |
1x Diesel generatorset 123,8 kVA |
|
Compressed air receivers |
2x Receivers each 1.000 litres - 30,0 bar 1x Receiver 500 litres - 11,0 bar |
|
Bow thrusters |
1x Transverse thruster - 700 kW, forward 1x Transverse thruster - 500 kW, aft |
|
Anchor equipment |
3x Anchors weight each 4.890 kg Chain length: 550,00 m Diameter: 54 mm |
|
Gear |
Gearless |
|
Crew size |
16 |
|
Manager |
Reederei Bernd Becker KG Königreicherstr. 114 21635 Jork Federal Republic of Germany |
|
Registered owner |
MS "JORK RANGER" Bernd Becker GmbH & Co. KG Königreicherstr. 114 21635 Jork Federal Republic of Germany |
|
Renamed |
2016 Ranger Cyprus, Limassol - Call sign: C4FA2 Owner: Contarga Ltd. Manager: Bernd Becker Shipmanagement GmbH & Co. KG; Jork - Germany |
|
Latest data adjustment |
23 March 2024 |
