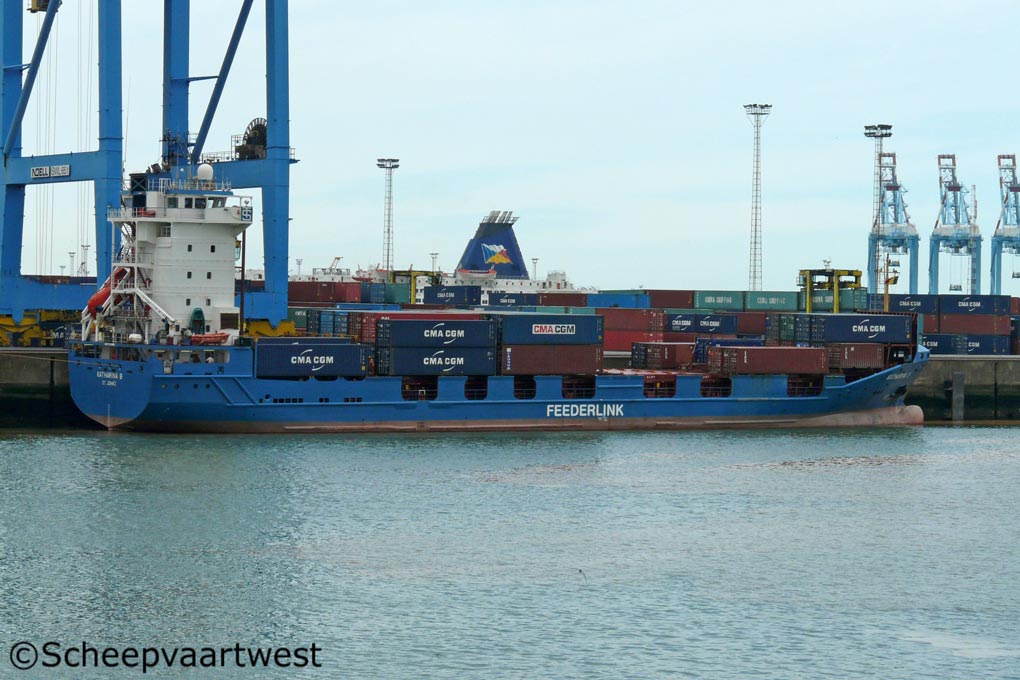

Katharina B 02
Zeebrugge 10 June 2012



Katharina B 01
Zeebrugge 10/06/12



Name

KATHARINA B

Previous names

Katharina B

HMS Portugal

Type

Cellular containership

IMO-number

9121869

Call sign

V2NA6

Flag

Antigua & Barbuda

Port of registry

St. John's

GT

3.999 t

DWT

5.276 t

NT

1.994 t

Number of 20ft containers

505

Container capacity 14t

280

Reefer capacity

75

Length

99,95 m overall

95,26 m registered

Breadth

17,90 m registered

Draught

6,616 m

Forecastle

6,92 m

Poop

7,64 m

Depth

8,50 m moulded

Speed

16,0 knots

Built

1997

Keel laid

13.02.1996

Launch date

19.07.1996

Date of completion

04.1997

Builder

Elbewerft Boizenburg GmbH
Fährweg 1
19258 Boizenburg
Federal Republic of Germany

Forebody built by Tuzla Gemi Endüstrisi A.S., Tuzla - Turkye

Yard number

231

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom

Watertight bulkheads

7

Continuous decks

2

Main engine

1x MaK 9M32 - 4 stroke 9 cylinder 320 x 480 mm diesel engine - 3.960 kW at 600 rpm

Reduced power: 2.249 kW

Year of manufacture: 1996

Manufacturer: MaK Motoren GmbH & Co. KG
Falckensteiner Str. 2
24159 Kiel
Federal Republic of Germany

Propellers

1x Controllable pitch propeller - aft 145 rpm

Boilers

1x Thermal oil heater, oil fired - 10,0 bar

Heating surface: 31,0 m²

1x Thermal oil heater, exhaust gas heated - 10,0 bar

Heating surface: 156,0 m²

Year of manufacture: 1996

Manufacturer: PWT Prozess-Wärmeträgertechnik GmbH
Justus-von-Liebig-Ring 4-6
25451 Quickborn
Federal Republic of Germany

Electric installations

2x Plant each 380/220 V - 435 kVA

1x Plant 380 V - 938 kVA

1x Plant 380 V - 200 kVA

Shaft generator

1x 750 kW / 938 kVA

Generators

2x Main diesel generatorsets each 348 kW / 435 kVA

Emergency generator

1x Diesel generatorset 200 kVA

Compressed air receivers

1x Receiver 500 litres - 30,0 bar

1x Receiver 250 litres - 30,0 bar

Bow thruster

1x Fixed pitch propeller SCHOTTEL - 500 kW, forward

Ballast water

1.670 m³

Anchor Equipment

3x Anchors weight each 3.780 kg

Chain length: 522,50 m

Cargo gear

Gearless

Crew

11

Manager

Tesch Bereederungsges. mbH
Boschstr. 18
49733 Haren/Ems
Federal Republic of Germany

Operator

Feederlink Shipping & Trading BV
Seattleweg 11
3195 ND, Rotterdam
The Netherlands

Registered owner

Tesch Bereederungsges. mbH & Co. KG MS "KATHARINA B"
Boschstr. 18
49733 Haren/Ems
Federal Republic of Germany
