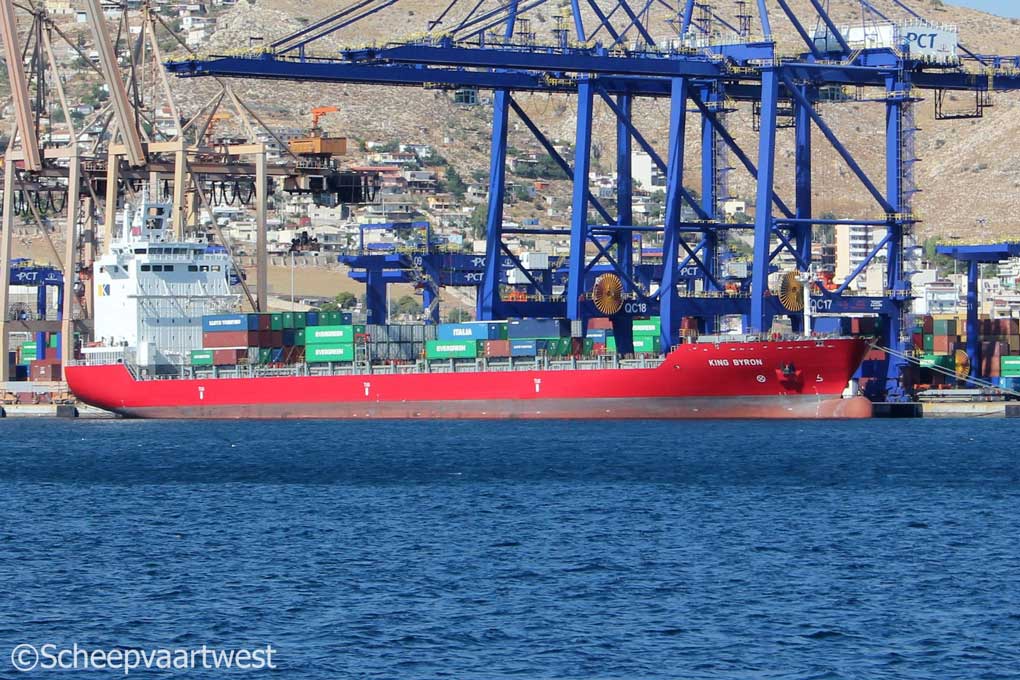

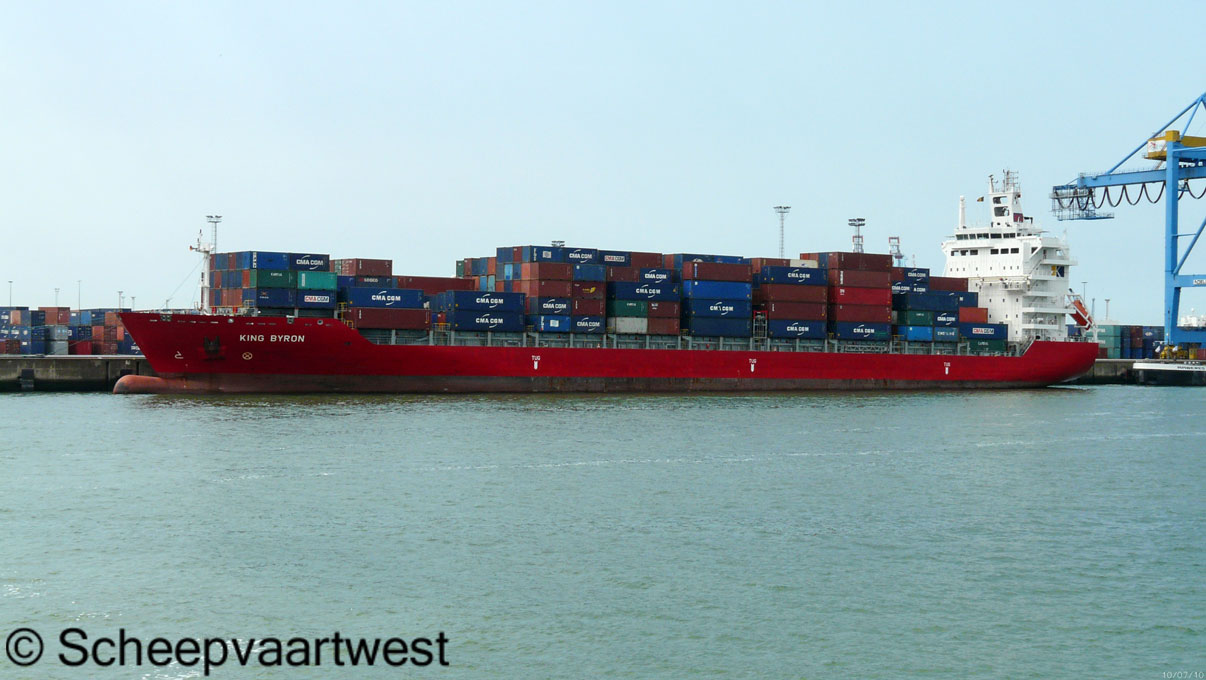

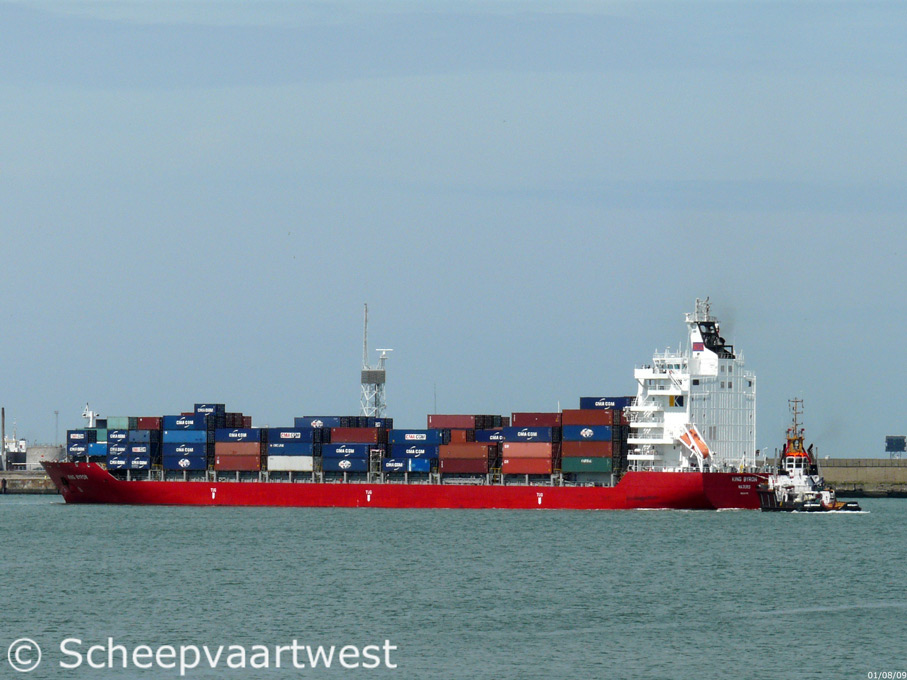

King Byron - IMO 9357781

Name

KING BYRON

Type

Cellular containership

IMO-number

9357781

Official number

2880

Call sign

V7MO8

Flag

Marshall Islands

Port of registry

Majuro

GT

17.964 t

DWT

Summer: 24.151 t

NT

8.666 t

Suez: 15.422,06 t

Number of 20ft containers

1.706

Container capacity 14t

1.250

Reefer point

300

Length

182,47 m overall

173,50 m between perpendiculars

175,31 m registered

Breadth

25,20 m

Draught

Summer: 10,00 m

Freeboard

4.200 mm

Depth

14,20 m moulded

Speed

19,9 knots

Built

2007

Keel laid

31.01.2007

Launch date

19.04.2007

Date of completion

15.06.2007

Builder

Wadan Yards MTW GmbH
Wendorfer Weg 5
23966 Wismar
Federal Republic of Germany

Yard number

141

Hull material

Shipbuilding steel (standard)

Hull type

Single hull

Double bottom

Watertight bulkheads

6

Continuous decks

1

Main engine

1x MAN-B&W 9 L58/64 CD - 4 stroke single acting 9 cylinder 580 x 640 mm diesel engine - 12.600 kW

Year of manufacture: 2006

Manufacturer: MAN Diesel SE
Stadtbachstr. 1
86153 Augsburg
Federal Republic of Germany

Propeller

1x Controllable pitch propeller - aft

Boilers

1x Steam boiler, oil fired - 9,0 bar

Heating surface: 15,0 m²

1x Exhaust gas heated - 9,0 bar

Heating surface: 158,0 m²

Year of manufacture: 2006

Manufacturer: Aalborg Industries A/S
Gasvaerksvej 24
9100 Aalborg

Kingdom of Denmark

Electric installations

1x 450 / 230 V - 3.939 kVA

1x 450 V - 1.250 kVA

1x 450 V - 220 kVA

1x 24 V - 560 Ah

Shaft generator

1.250 kVA / 1.000 kW

Generators

3x Main diesel generatorsets each 1.313 kVA / 1.050 kW

Emergency generator

1x Diesel generatorset 220 kVA

Batteries

1x Battery for automation - 140 Ah

2x Batteries for start emergency engine each - 140 Ah

1x Battery for UPS radio - 140 Ah

Compressed air receivers

2x Receivers each 2.000 litres - 30,0 bar

1x Receiver 30 litres - 30,0 bar

Bow thruster

1x Transverse thruster - 950 kW forward

Cargo gear

Gearless

Anchor Equipment

3x Anchors weight each 7.350 kg

Chain length: 605,00 m

Crew

19

Manager

Columbia Shipmanagement (Deutschland) GmbH
Anckelmannsplatz 1
20537 Hamburg
Federal Republic of Germany

Operator

CMA CGM

Owner

King Byron Shipping Co. Ltd.
Trust Company Complex Ajeltake Road, Ajeltake Island Ajeltake Island
Majuro
Republic of the Marshall Islands

Owner as complete

King Byron Schiffahrts GmbH & Co KG
Majuro
Marshall Islands
