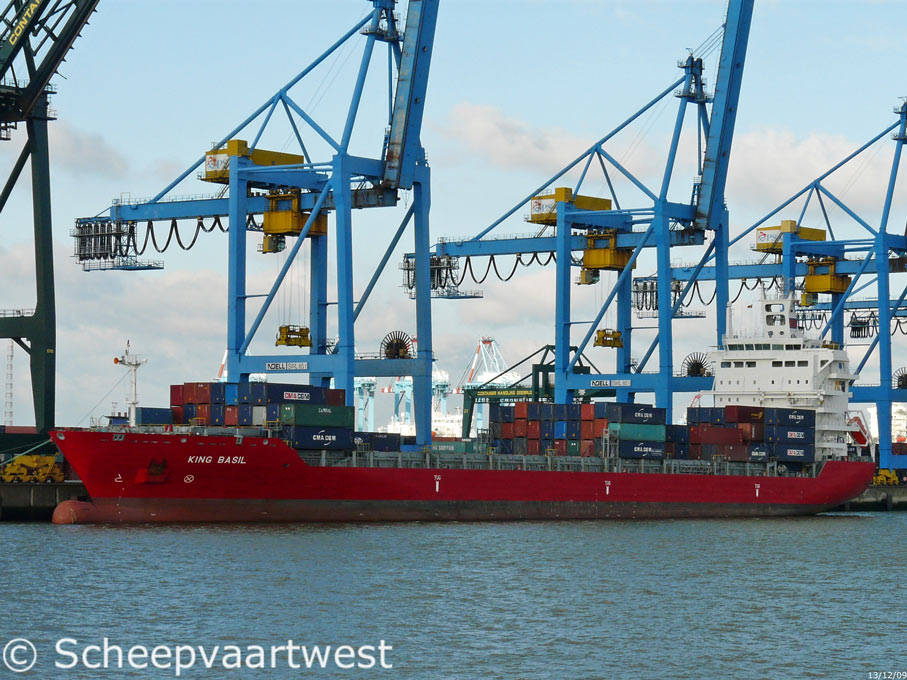

| Zeebrugge 13 December 2009 |
|
Name |
KING BASIL |
|
Type |
Cellular containership |
|
IMO-number |
9357808 |
|
Call sign |
9HLM9 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
17.964 t Suez: 18.580,52 t |
|
DWT |
24.092 t |
|
NT |
8.666 |
|
Number of 20ft containers |
1.706 |
|
Container capacity 14t |
1.250 |
|
Reefer point |
300 plugs (440 V - 60 Hz) |
|
Length |
182,43 m overall 173,50 m between perpendiculars 175,31 m registered |
|
Breadth |
25,20 m |
|
Draught |
Summer: 10,00 m |
|
Forecastle |
24,062 m |
|
Poop |
14,60 m |
|
Freeboard |
4.230 mm |
|
Depth |
14,20 m moulded |
|
Speed |
Service: 19,8 knots Max.: 21,0 knots |
|
Built |
2008 |
|
Keel laid |
22.10.2007 |
|
Launch date |
05.01.2008 |
|
Date of completion |
29.02.2008 |
|
Builder |
Wadan Yards MTW GmbH |
|
Yard number |
149 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
6 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 9L58/64 CD - 4 stroke single acting 9 cylinder 580 x 640 mm diesel engine - 12.600 kW at 428 rpm Year of manufacture: 2007 Manufacturer: MAN Diesel SE |
|
Number of screws |
1x Controllable pitch propeller - aft at 106 rpm |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar Heating surface: 15,0 m² 1x Exhaust gas heated - 9,0 bar Heating surface: 158,0 m² Year of manufacture: 2007 Manufacturer: Aalborg Industries A/S |
|
Electric Installations |
1x Plant 450 / 230 V - 3.939 kVA 1x Plant 450 V - 1.250 kVA 1x Plant 450 V - 220 kVA 1x Plant 24 V - 140 Ah 1x Plant 24 V - 140 Ah 1x Plant 24 V - 140 Ah |
|
Shaft generator |
1.000 kW / 1.250 kVA |
|
Generators |
3x Main diesel generatorsets each 1.050 kW / 1.313 kVA |
|
Emergency generator |
1x Diesel generatorset 220 kVA |
|
Batteries |
1x Battery for automation 140 Ah 2x Batteries for start emergency engine each 140 Ah 1x Battery for UPS radio 140 Ah |
|
Compressed air receivers |
2x Receivers each 2.000 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster 950 kW, forward |
|
Anchor equipment |
3x Anchors weight each 7.350 kg Chain length: 605,00 m |
|
Cargo gear |
Gearless |
|
Crew |
19 |
|
Manager |
Columbia Shipmanagement (Deutschland) GmbH |
|
Operator |
CMA CGM |
|
Owner |
King Basil Navigation Co. Ltd. |
