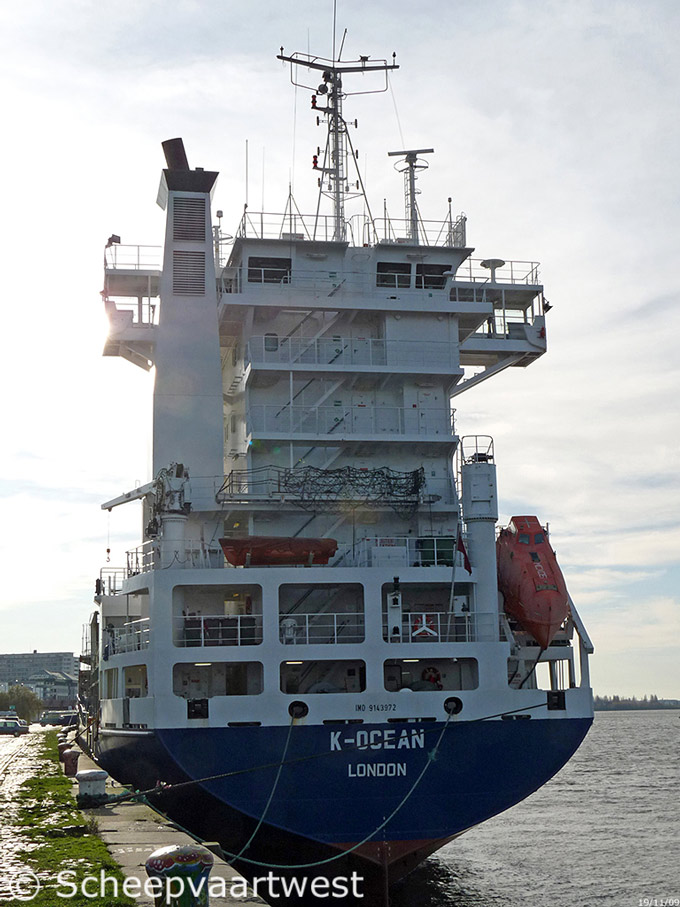

| Antwerpen 19 November 2009 |
|
Name |
K-OCEAN |
|
Previous names |
City of Oporto K-Ocean |
|
Type |
Container Ship |
|
IMO-number |
9143972 |
|
Call sign |
MCXD5 |
|
Flag |
United Kingdom |
|
Port of registry |
London |
|
GT |
6.362 t |
|
DWT |
7.224 t |
|
NT |
3.998 t |
|
Number of 20ft containers |
700 |
|
Reefer capacity |
100 |
|
Length |
121,76 m overall 114,90 m between perpendiculars 115,04 m registered |
|
Breadth |
18,20 m registered |
|
Draught |
6,69 m |
|
Forecastle |
76,30 m |
|
Poop |
9,05 m |
|
Freeboard |
1.620 mm |
|
Depth |
8,30 m moulded |
|
Speed |
16,4 knots |
|
Built |
1998 |
|
Keel laid |
07.12.1995 |
|
Launch date |
22.06.1998 |
|
Date of completion |
08.1998 |
|
Builder |
J.J. Sietas KG Schiffswerft GmbH & Co. |
|
Yard number |
1148 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Partly double bottom |
|
Watertight bulkheads |
5 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN 8 L 40/54 - 4 stroke single acting 8 cylinder 400 x 540 mm diesel engine - 5.300 kW at 514 rpm Year of manufacture: 1997 Manufacturer: MAN B&W Diesel GmbH |
|
Number of screws |
1x Controllable pitch propeller - aft at 188 rpm |
|
Electric installations |
1x Plant 380/220 V - 800 kVA 1x Plant 380 V - 695 kVA 1x Plant 380 V - 100 kVA |
|
Shaft generator |
556 kW/ 695 kVA |
|
Generators |
2x Main diesel generatorsets each 400 kVA |
|
Emergency generator |
1x Diesel generatorset 100 kVA |
|
Compressed air receivers |
2x Receivers each 500 litres - 30,0 bar |
|
Bow thruster |
1x Fixed pitch propeller Lips - 546 kW, forward |
|
Cargo capacity |
Grain: 13.852 m³ Bales: 12.536 m³ |
|
Tank capacities |
Ballast water: 2.135 m³ Fuel oil: 625 m³ |
|
Anchor equipment |
3x Anchors weight each 4.050 kg Chain length: 522,50 m |
|
Cargo gear |
None |
|
Manager |
Knüppel Schiffahrts GmbH |
|
Owner |
K-Ocean Sechste RST Schiffahrtsges. mbH & Co. KG |
