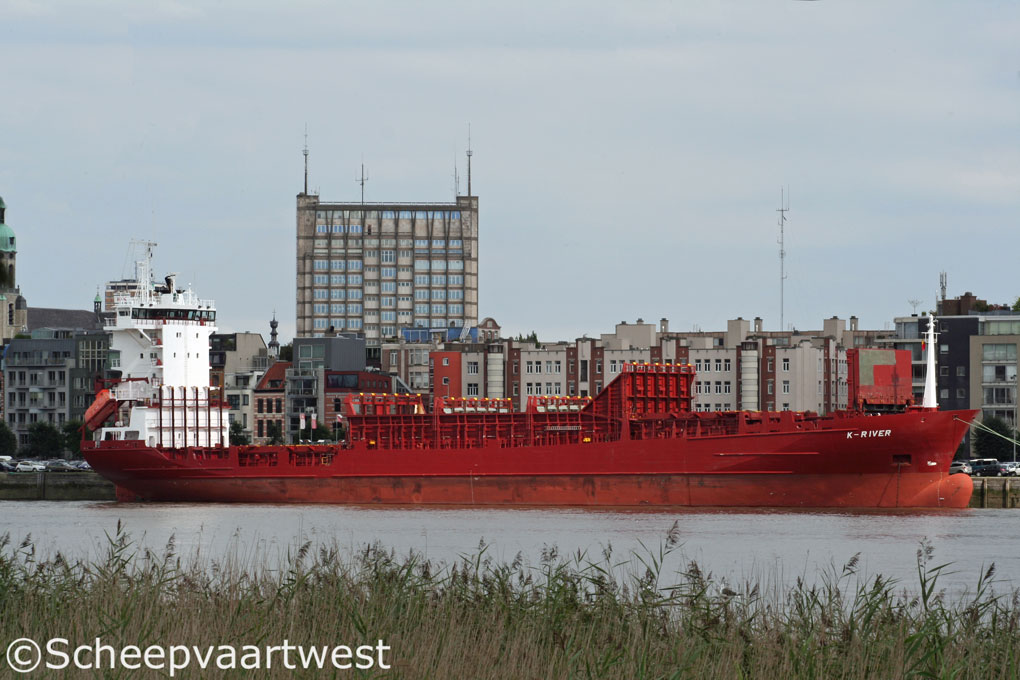

K-River 02
Antwerpen 15 August 2011



Name

K-RIVER

Previous names

1997 Mary Ann

1997-1998 CTE Valencia

1998-2007 Mary Ann

2007 K-River

Type

Containership

IMO-number

9138355

Call sign

2011 - 2EHP7

Previous call sign

V2DB8

Flag

2011 United Kingdom

Previous flag

Antigua & Barbuda

Port of registry

London

GT

6.362 t

DWT

7.221 t

NT

3.998 t

Number of 20ft containers

700

Container capacity at 14t

400

Reefer containers

100

Length

121,99 m overall

115,04 m registered

Breadth

18,20 m

Draught

6,690 m

Forecastle

6,30 m

Poop

9,05 m

Freeboard

1.620 mm

Depth

8,30 m

Speed

Max.: 16,4 knots

Built

1997

Keel laid

19.09.1995

Launch date

02.10.1997

Date of completion

11.1997

Builder

J.J. Sietas KG Schiffswerft GmbH & Co.
Neuenfelder Fährdeich 88
21129 Hamburg
Federal Republic of Germany

Yard number

1146

Hull materail

Shipbuilding steel (higher tensile)

Hull type

Partly double bottom

Watertight bulkheads

6

Continuous decks

1

Main engine

1x MAN-B&W 8L40/54 - 4 stroke 8 cylinder 400 x 540 mm diesel engine - 5.300 kW at 514 rpm

Reduced Power: 3.055 kW

Built: 1996

Manufacturer: MAN B&W Diesel GmbH
Stadtbachstr. 1
86153 Augsburg
Federal Republic of Germany

Propeller

1x Controllable pitch propeller - aft at 188 rpm

Electric Installation(s)

1x Plant 380/220 V - 400 kVA

1x Plant 380/220 V - 400 kVA

1x Plant 380 V - 695 kVA

1x Plant 380 V - 100 kVA

Shaft generator

1x 695 kVA / 556 kW

Generators

2x Caterpillar main diesel generatorsets each 400 kVA / 320 kW

Emergency generator

1x Diesel generatorset 100 kVA

Compressed air receivers

2x Receivers each 500 litres - 30,0 bar

Bow thruster

1x Fixed pitch propeller LIPS - 546 kW, forward

Cargo capacity

Grain:13.852 m³

Bales: 12.833 m³

Water ballast

2.135 m³

Anchor equipment

3x Anchors weight each 4.050 kg

Chain length: 522,50 m

Crew size

15

Manager

K&K Schiffahrts GmbH & Co. KG
Ballindamm 17
20095 Hamburg
Federal Republic of Germany

Registered owner

MS "K-RIVER" Schiffahrts GmbH & Co. KG
Ballindamm 17
20095 Hamburg
Federal Republic of Germany

Previous owner

Eicke Schiffahrt
