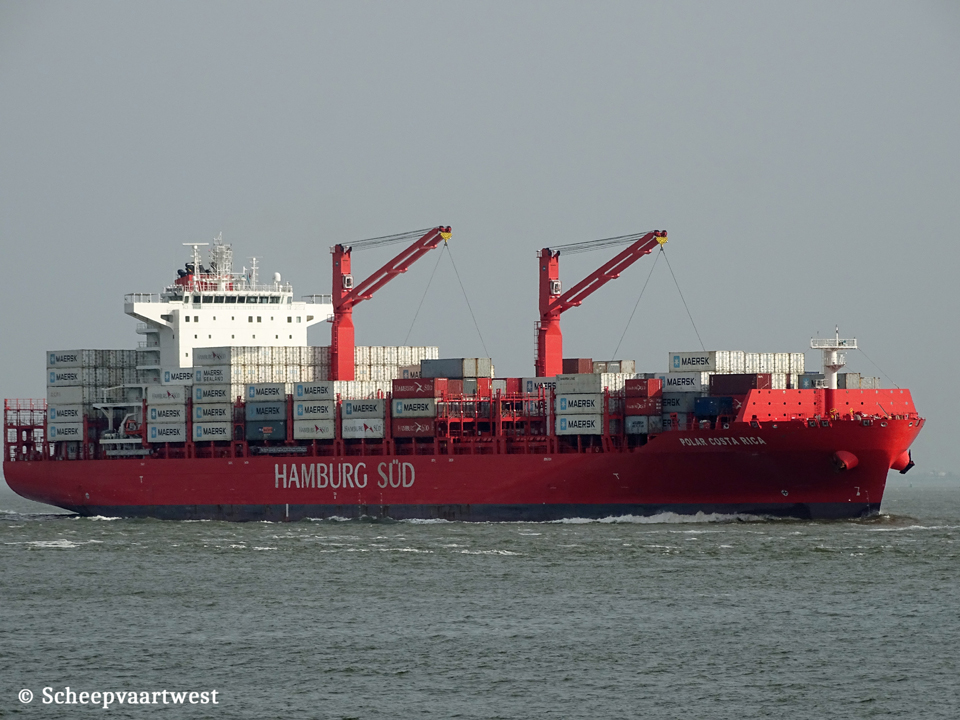

Polar Costa Rica IMO 9786786 04

Westerschelde 23 April 2019

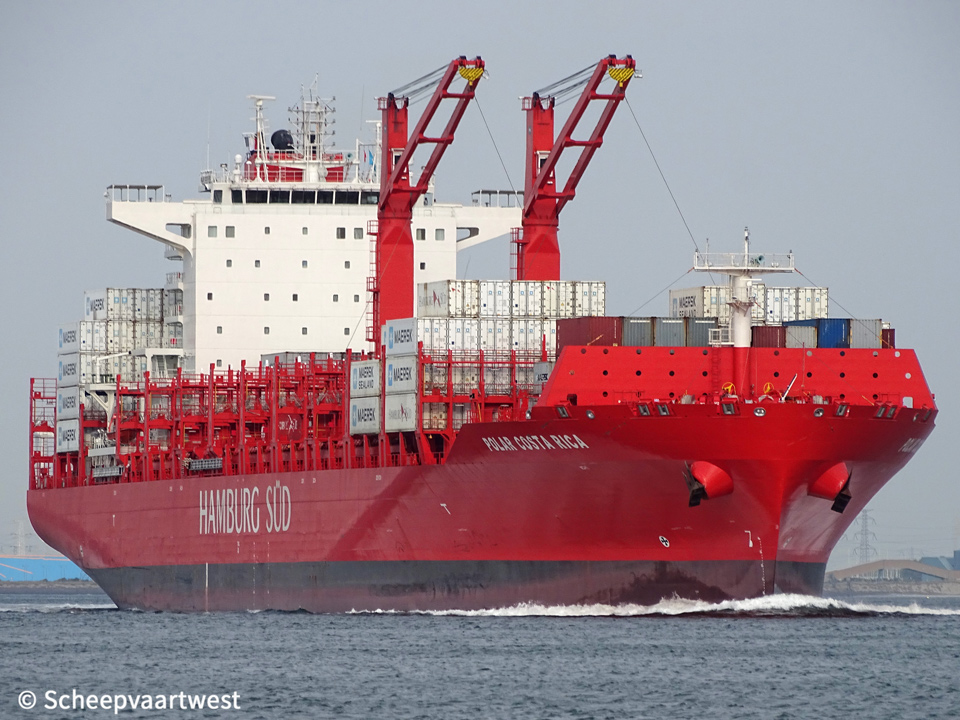

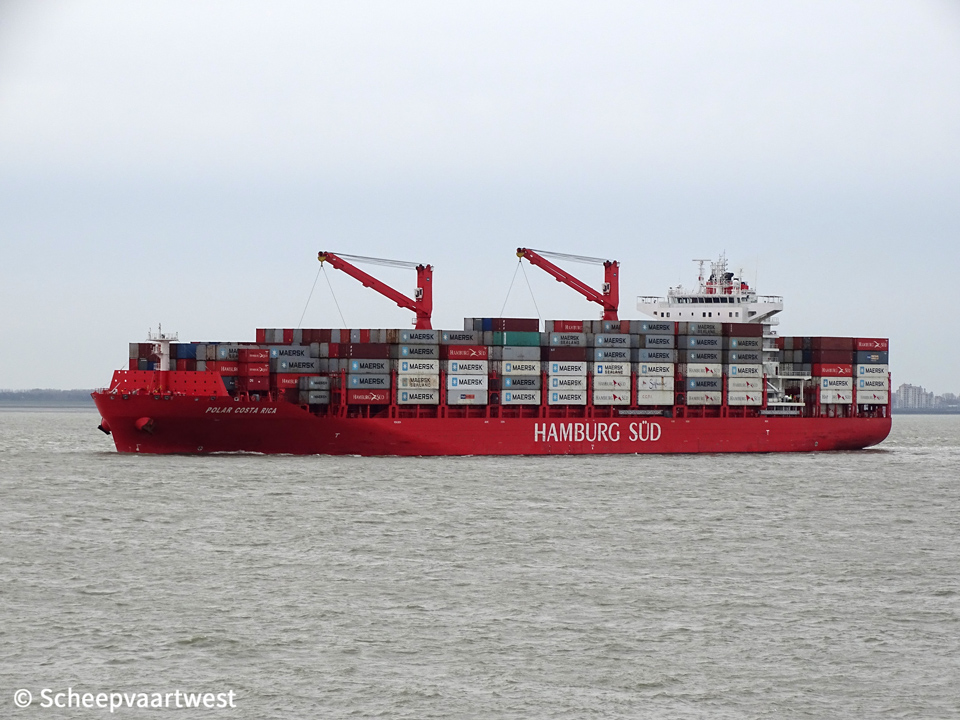

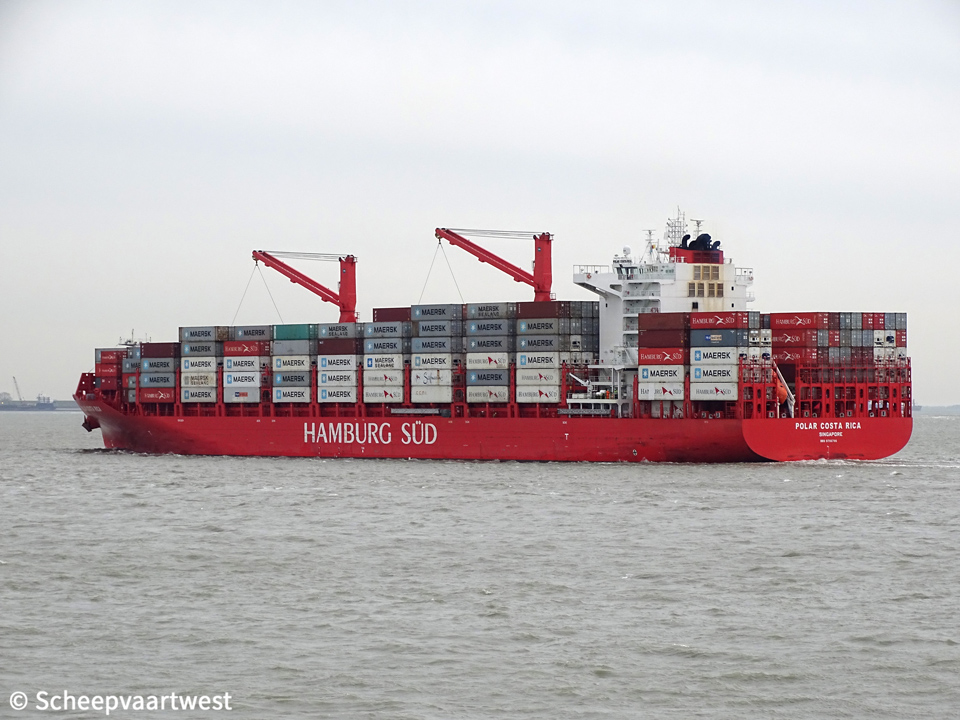

Polar Costa Rica 02   Polar Costa Rica 03   Polar Costa Rica 01
Westerschelde 28/02/20 Westerschelde 28/02/20 Westerschelde 03/07/18


Name

POLAR COSTA RICA

Type

Cellular containership - Carriage of dangerous goods

IMO-number

9786786

Call sign

9V9325

Flag

Republic of Singapore

Port of registry

Singapore City

Previous flags

12/2017 - 04/2018 Republic of Liberia, Monrovia - Call sign: D5OZ3

GT

43.328 t registered

Suez: 45.663,24 t

DWT

52.119,8 t

NT

17.495 t registered

Panama: 36.023 t

Suez: 40.184,6 t

Displacement

69.815,1 t

Number of 20ft containers

3.884

Reefer capacity

870

Length

230,00 m overall

220,80 m between perpendiculars

Breadth

37,30 m moulded

Draught

Max: 12,50 m

Freeboard

7.139 mm

Depth

19,60 m moulded

Speed

18,0 knots

Built

2017

Keel laid

24/12/2015

Launch date

17/07/2017

Delivery date

06/10/2017

Builder

Jiangsu New Yangzi Shipbuilding Co., Ltd.

Jingjiang Park Of Jiangyin Economic Development Zone Of Jiangsu Province, 214532

China

Yard number

YZJ2015-1203

Hull material

Ordinary strength steel

High strength steel

Watertight bulkheads

8

Main engine

1x MAN-B&W/HHI 6S70ME-C8.5 - 6 cylinder 700 x 2.800 mm combustion engine 19.620 kW at 91,0 rpm

Manufacturer: HHI Engine & Machinery Div.

Propellers

1x Fixed pitch propeller

Manufacturer: Mecklenburger Metallguss GmbH

Boilers

1x Composite boiler - 9,0 bar

1x Unfired exhaust gas boiler - 9,0 bar

Manufacturer: Saacke Qingdao Marine Boiler Co., Ltd.

Generators

1x Daihatsu 6DE33 main diesel generatorset 3.080 kW

3x Daihatsu 8DE33 main diesel generatorsets each 4.520 kW

Manufacturer: HHI Electro Electric System

Bow thrusters

1x 1.500 kW, forward

1x 1.500 kW, aft

Number of holds

5

Hold Capacity

77.177,05 m³

Number of tanks

Ballast: 26

Fuel oil: 14

Lubricating oil: 8

Waste water: 5

Sludge: 5

Diesel oil: 4

Fresh water: 4

Chain: 2

Sewage: 1

Tank capacities 100%

Diesel oil: 434,68 m³

Fresh water: 469;12 m³

Fuel Oil: 4.830,64 m³

Lube Oil: 297,46 m³

Tank Ballast: 20.288,23 m³

Lifting equipment

1x Engine room overhead crane - SWL 6,3 t

Manufacturer: Jiangyin Jianghai Mechnical Manufacture Co.,Ltd.

1x Hose crane - SWL 4,0 t

Manufacturer: Taizhou Kaixin Shipping Machine Co., Ltd.

1x Monorail Provision crane - SWL 6,2 t

Manufacturer: Oriental Prec & Eng'g Co.

Cargo gear

2x Deck cranes - SWL 44,0 t each

Manufacturer: TTS Bohai Machinery Dalian Co., Ltd.

Manager

Columbus Shipmanagement GmbH

Willy-Brandt-Str. 59-61

Hamburg, 20457

Germany

Operator

Hamburg Süd

Hamburg Südamerikanische Dampfschifffahrts-Gesellschaft A/S & Co KG

Willy-Brandt-Straße 59-65

20457 Hamburg

Germany

Registered owner

A.P. Moller Singapore Pte. Ltd.

200 Cantonment Road #10-00 Southpoint

Singapore, 089763

Republic of Singapore

Previous owners

Reederei Monte GmbH & Co KG

Latest data adjustment

11 April 2022
