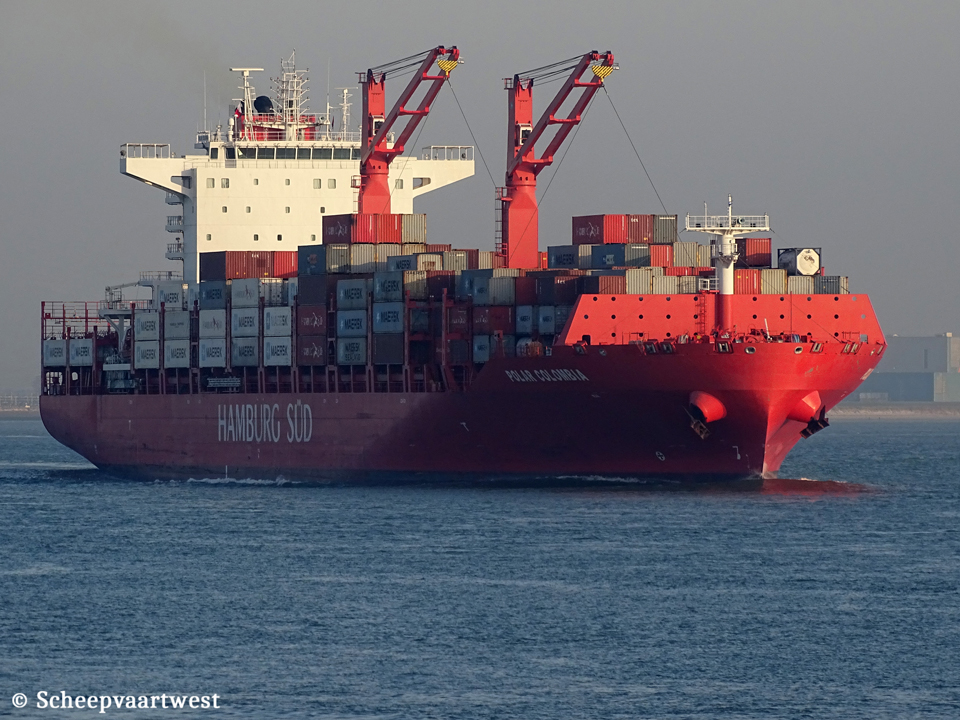

| Westerschelde 07 November 2020 |
|
Name |
POLAR COLOMBIA |
|
Previous names |
09/2017 - 11/2017 Polar Colombia 11/2017 - 09/2020 Joao De Solis |
|
Type |
Cellular containership |
|
IMO-number |
9786762 |
|
Call sign |
9V6726 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore city |
|
Previous flags |
09/2017 -11/2017 Portugal - Call sign: CQIM3 11/2017 - 11/2017 Liberia, Monrovia 11/2017 - 09/2020 Brazil - Call sign: PPXU |
|
GT |
43.628 t Suez: 45.663,24 t |
|
DWT |
55.762,8 t |
|
NT |
17.495 t Suez: 40.184,60 t Panama: 36.023 t |
|
Displacement |
73.417,8 t |
|
Number of 20ft containers |
3.883 |
|
Reefer capacity |
870 |
|
Length |
230,00 m overall 220,80 m between perpendiculars |
|
Breadth |
37,30 m moulded |
|
Draught |
Summer: 12,50 m |
|
Freeboard |
6.639 mm |
|
Depth |
19,60 m moulded |
|
Speed |
Maw: 21,6 knots |
|
Built |
2017 |
|
Keel laid |
10/12/2015 |
|
Launch date |
07/04/2017 |
|
Delivery date |
08/09/2017 |
|
Builder |
Jiangsu New Yangzi Shipbuilding Co., Ltd. Jingjiang Park Of Jiangyin Economic Development Zone Of Jiangsu Province, 214532 China |
|
Yard number |
YZJ2015-1201 |
|
Hull material |
Ordinary strength steel High strength steel |
|
Watertight bulkheads |
8 |
|
Main engine |
1x MAN - B&W/HHI 6S70ME-C8.5 - 2 stroke 6 cylinder 700 x 2.800 mm combustion engine 19.620 kW at 91,0 rpm |
|
Propellers |
1x Fixed pitch propeller Manufacturer: Mecklenburger Metallguss GmbH |
|
Boilers |
1x Exhaust gas boiler - 9,0 MPa 1x Composite boiler - 9,0 MPa Manufacturer: Saacke Qingdao Marine Boiler Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 4.520 kW 1x Main diesel generatorset 3.080 kW Manufacturer: HHI Electro Electric System |
|
Thrusters |
1x 1.500 kW, forward 1x 1.500 kW, aft |
|
Number of holds |
5 |
|
Hold capacity |
77.177,05 m³ |
|
Number of tanks |
Ballast: 26 Fuel oil: 14 Lubricating oil: 8 Waste water: 5 Sludge: 5 Diesel oil: 4 Fresh water: 4 Chain: 2 Sewage: 1 |
|
Tank capacities |
Diesel oil: 434,68 m³ Lub oil: 297,46 m³ Fuel oil: 4.830,64 m³ Ballast: 20.288,23 m³ Fresh water: 469,12 m³ |
|
Lifting equipment |
1x Engine room overhead crane - SWL 6,3 t Manufacturer: Jiangyin Jianghai Mechanical Manufacture Co., Ltd. 1x Hose davit/Suez boat davit - SWL 4,0 t Manufacturer: Taizhou Kaixin Shipping Machine Co., Ltd. 1x Monorail provision crane - SWL 6,5 t Manufacturer: Oriental Prec & Eng'g Co. |
|
Cargo gear |
2x Deck cranes - SWL 44,0 t each Manufacturer: TTS Bohai Machinery Dalian Co., Ltd. |
|
Crew |
32 |
|
Operator |
Hamburg Süd A/S & Co., KG Rödingsmarkt 16 20459 Hamburg German |
|
Registered owner |
Möller Singapore AP Pte Ltd. 13-01, Paya Lebar Quarter, 1, Paya Lebar Link Singapore 408533 Republic of Singapore |
|
Latest data adjustment |
15 November 2022 |
