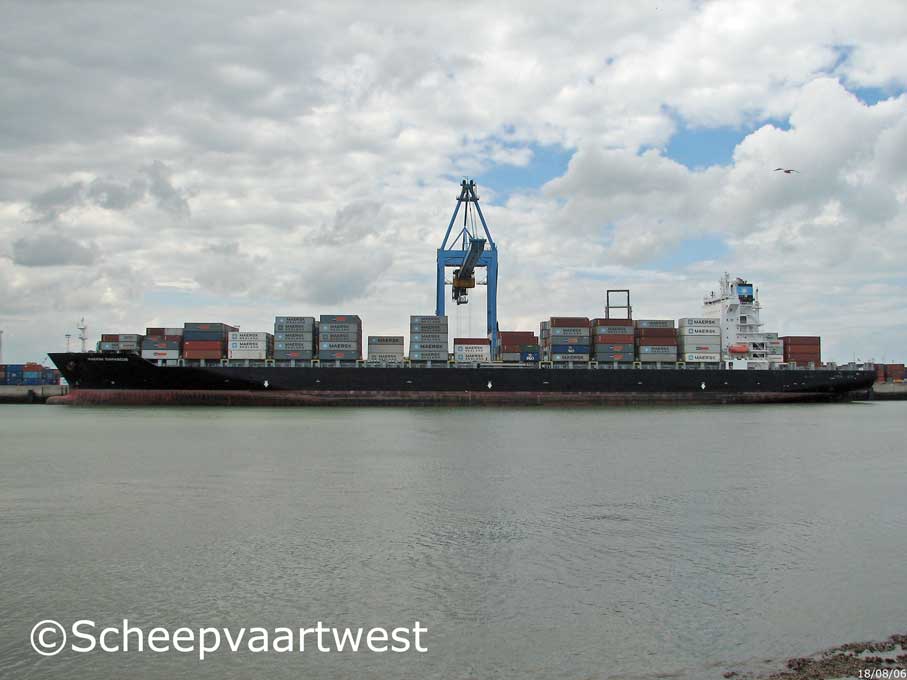

Maersk Damascus - IMO 9227338

Name

MAERSK DAMASCUS

Previous names

Santa Romana
22.03.2006 P&O Nedlloyd Palliser

Type

Cellular Containership

IMO-number

9227338

Call sign

A8RK9

Previous call sign

DAWC

Flag

Liberia

Previous flag

01.10.2002 Germany

Port of registry

Monrovia

GT

45.803 t

DWT

Summer: 53.081 t

NT

25.077 t

Number of 20ft containers

4.112

Number of 40ft containers

718

Container capacity at 14t

2.840

Reefer capacity

1.300

Length

281,00 m overall
268,00 m between perpendiculars

268,86 m registered

Breadth

32,20 m over all

Draught

Summer: 12,50 m

Bridge

118,64 m

Forecastle

134,05 m

Poop

15,40 m

Freeboard

7.500 mm

Depth

15,538 m moulded

Speed

25,12 knots

Built

2002

Keel laid

14.05.2002

Launch Date

03.08.2002

Date of completion

10.10.2002

Builder

Samsung Heavy Industries Co., Ltd. Geoje Shipyard
530, Jangpyeong-ri, Sinhyeon-eup
Geoje , Gyeongsangnam-do 656-710
Republic of Korea

Yard number

1361

Hull material

Shipbuilding steel (higher tensile)

Hull type

Single hull

Double bottom

Watertight bulkheads

9

Continuous decks

2

Main engine

1x Sulzer 9 RTA 96 C-B - 2 stroke single acting 9 cylinder 960 x 2.550 mm diesel engine - 52.480 kW

Year of manufacture: 2002

Manufacturer: HSD Engine Co., Ltd.

Propeller

1x Solid propeller (keyless) - aft

Boilers

1x Steam boiler, oil fired – 9,0 bar
Heating surface: 40,2 m²

1x Steam boiler, exhaust gas heated – 9,0 bar
Heating surface: 591,0 m²

Year of manufacture: 2002

Manufacturer: Aalborg Industries A/S Division Heaters

Electric installations

1x 6.600/440 V - 21.198 kVA

1x 440 V - 250 kVA

1x 24 V - 200 Ah

Shaft generator

1x 3.714 kVA

Generators

4x Main diesel generatorsets each 4.371 kVA

Emergency generator

1x Diesel generatorset 250 kVA

Compressed air receivers

2x Receivers each 12.900 litres - 33,0 bar

1x Receiver 300 litres - 33,0 bar

1x Receiver 150 litres - 7,7 bar

Bow thruster

1x Transverse thruster NAKASHIMA - 1.600 kW, forward

Tank capacities

Water ballast: 14.286 m³

Fuel oil: 8.519 m³

Largest hatch

Length: 12,40 m
Breadth: 28,04 m

Anchor equipment

3x Anchors weight each 12.300 kg

Chain Length: 687,50 m

Crew size

30

Manager

Reederei Claus-Peter Offen GmbH & Co. KG
Bleichenbrücke 10
20354 Hamburg
Federal Republic of Germany

Operator

Maersk Line Ltd.

Owner

Kommanditgesellschaft MS "SANTA ROMANA" Offen Reederei GmbH & Co.
Bleichenbrücke 10
20354 Hamburg
Federal Republic of Germany
