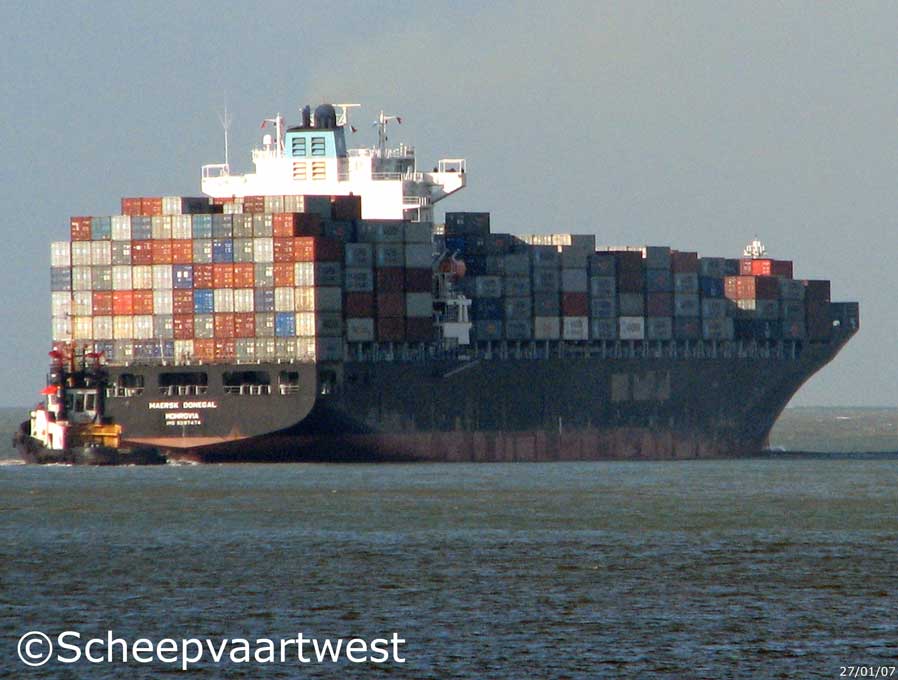

| Zeebrugge 27 January 2007 |
|
Name |
MAERSK DONEGAL |
|
Previous names |
Launch as: Santa Priscilla |
|
Type |
Cellular Containership |
|
IMO-number |
9297474 |
|
Call sign |
A8KN6 |
|
Previous call sign |
DCPK2 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flag |
Germany |
|
Previous port of registry |
Hamburg |
|
GT |
54.809 t |
|
DWT |
67.222 t |
|
NT |
34.226 t |
|
Number of 20ft containers |
5.042 |
|
Container capacity at 14t |
3.300 |
|
Reefer capacity |
550 |
|
Length |
294,51 m overall 284,26 m registered |
|
Breadth |
32,20 m registered |
|
Draught |
Summer: 13,65 m |
|
Forecastle |
141,909 m |
|
Bridge |
125,933 m |
|
Poop |
15,975 m |
|
Freeboard |
3.780 mm |
|
Depth |
23,30 m 18,40 m m tonnage |
|
Speed |
25,0 knots |
|
Built |
2005 |
|
Keel laid |
18.04.2005 |
|
Launch date |
01.07.2005 |
|
Date of completion |
05.09.2005 |
|
Builder |
Hyundai Heavy Ind. Co., Ltd. |
|
Yard number |
H1598 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
9 |
|
Continuous decks |
1 |
|
Main engine |
1x Sulzer 8RTA96C-B - 2 stroke single acting 8 cylinder 960 x 2.500 mm diesel engine - 45.760 kW Year of manufacture: 2005 Manufacturer: Hyundai Heavy Industries Co., Ltd. |
|
Propeller |
1x Solid propeller (keyless) - aft |
|
Boilers |
1x Steam boiler, oil fired - 10,0 bar Heating surface: 26,8 m² 1x Steam boiler, exhaust gas heated - 10,0 bar Heating surface: 399,0 m² Year of manufacture: 2005 Manufacturer: Aalborg Industries Ltd. |
|
Electric installations |
1x 450/230 V - 9.975 kVA 1x 450 V - 313 kVA 1x 24 V - 15 Ah 1x 24 V - 24 Ah 1x 24 V - 200 Ah 1x 24 V - 200 Ah |
|
Generators |
2x Main diesel generatorsets each 2.850 kVA 2x Main diesel generatorsets each 2.137.5 kVA |
|
Emergency generator |
1x Diesel generatorset 313 kVA |
|
Batteries |
1x Battery for UPS radio 200 Ah 1x Battery for start emergency engine 15 Ah |
|
Bow thruster |
1x Transverse thruster - 2.100 kW, forward |
|
Compressed air receivers |
2x Receivers each 11.500 litres - 30,0 bar 1x Receiver 250 litres - 30,0 bar 1x Receiver 250 litres - 8,8 bar 1x Receiver 2000 litres - 8,0 bar |
|
Anchor equipment |
3x Anchors weight each 12.900 kg Chain length: 715,00 m |
|
Cargo gear |
None |
|
Manager |
Reederei Claus-Peter Offen GmbH & Co. KG |
|
Operator |
Maersk |
|
Owner |
Kommanditgesellschaft MS "SANTA PRISCILLA" Offen Reederei GmbH & Co. |
