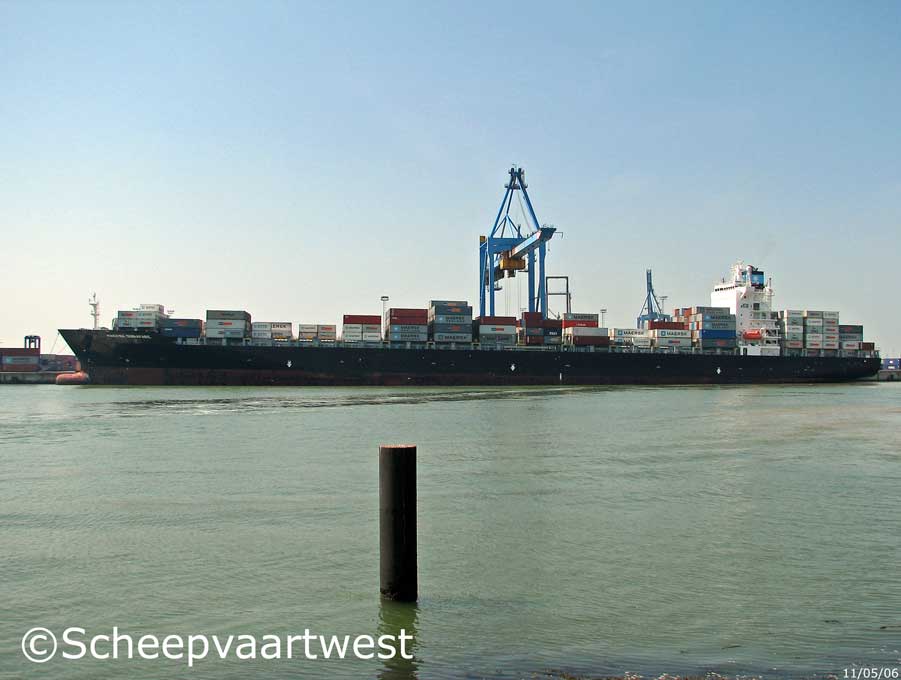

Maersk Dunafare
Zeebrugge 11 May 2006



Name

MAERSK DUNAFARE

Previous names

Launch as: Santa Ricardo
2002-2005 P&O Nedlloyd Botany
2005 Maersk Dunafare

Type

Cellular Containership

IMO-number

9227314

Call sign

DPJK

Flag

Germany

Port of registry

Hamburg

GT

45.803 t

DWT

53.452 t

NRT

25.077 t

Number of 20ft containers

4.112

Number of 40ft containers

718

Container capacity at 14t

2.840

Reefer capacity

1.300

Length

281,04 m overall
268,00 m between perpendiculars
268,86 m registered

Breadth

32,20 m registered

Draught

Summer: 12,50 m

Forecastle

134,05 m

Bridge

118,64 m

Poop

15,40 m

Freeboard

3.035 mm

Depth

15,538 m moulded

Speed

25,1 knots

Built

2002

Keel laid

10.12.2001

Launch date

03.03.2002

Date of completion

28.05.2002

Builder

Samsung Heavy Industries Co., Ltd. Geoje Shipyard
530, Jangpyeong-ri, Sinhyeon-eup
Geoje , Gyeongsangnam-do 656-710
Republic of Korea

Yard number

1359

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom

Watertight bulkheads

9

Continuous decks

2

Main engine

1x Sulzer 9RTA96C-B - 2 stroke single acting 9 cylinder 960 x 2.550 mm diesel engine - 51.480 kW
Year of manufacture: 2002
Manufacturer: HSD Engine Co., Ltd.
69 Sinchon-dong
Changwon , Kyungnam 641-370
Republic of Korea

Propeller

1x Solid propeller (keyless) - aft

Boilers

1x Steam boiler, oil fired - 9,0 bar
Heating surface: 40,2 m²
1x Steam boiler, exhaust gas heated - 9,0 bar
Heating surface: 672,0 m²
Year of manufacture: 2001
Manufacturer: Aalborg Industries A/S Division Heaters
Gasvaerksvej 24
9100 Aalborg
Kingdom of Denmark

Electric installations

1x 6.600/440 V - 21.198 kVA
1x 440 V - 250 kVA
1x 24 V - 200 Ah

Generators

4x Main diesel generatorsets each 4.371 kVA / 3.497 kW
1x Generator - 3.714 kVA / 2.971 kW

Emergency generator

1x Diesel generatorset 250 kVA

Bow thruster

1x Transverse thruster NAKASHIMA - 1.600 kW, forward

Compressed air receivers

2x Receivers each 12.900 litres - 33,0 bar
1x Receiver 300 litres - 33,0 bar
1x Receiver 150 litres - 7,7 bar

Tank capacities

Fuel oil: 8.519 m³
Ballast water: 14.286 m³

Anchor equipment

3x Anchors weight each 12.300 kg
Chain length: 687,50 m

Crew size

30

Crew

26

Manager

Reederei Claus-Peter Offen GmbH & Co. KG
Bleichenbrücke 10
20354 Hamburg
Federal Republic of Germany

Operator

Maersk

Owner

Kommanditgesellschaft MS "SANTA RICARDA" Offen Reederei GmbH & Co.
Bleichenbrücke 10
20354 Hamburg
Federal Republic of Germany
