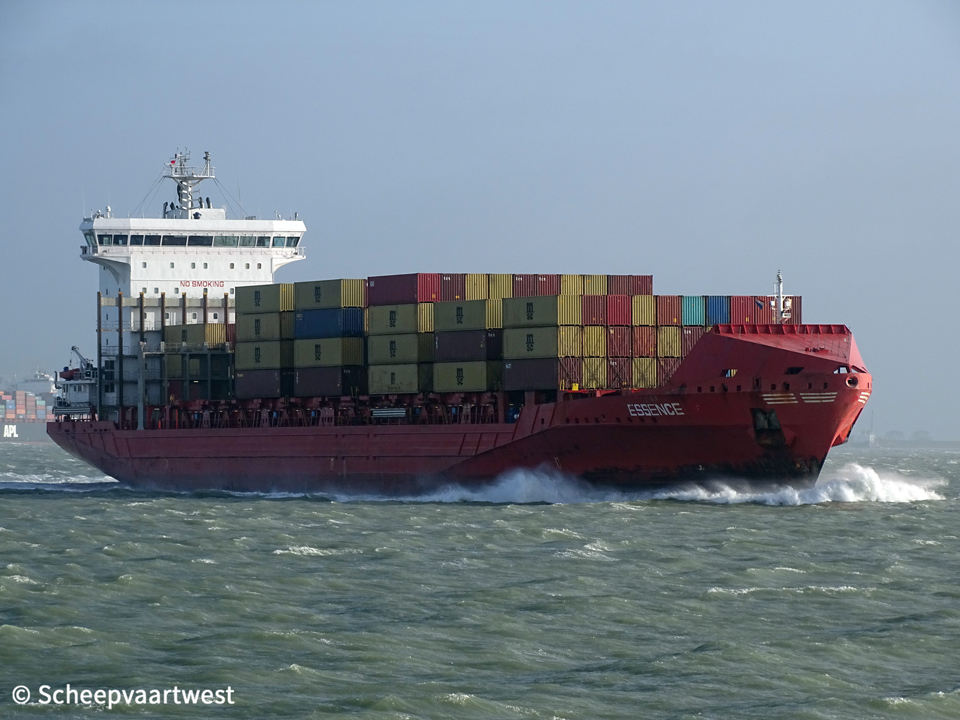

Westerschelde 24 December 2019 |
 |
 |
 |
||

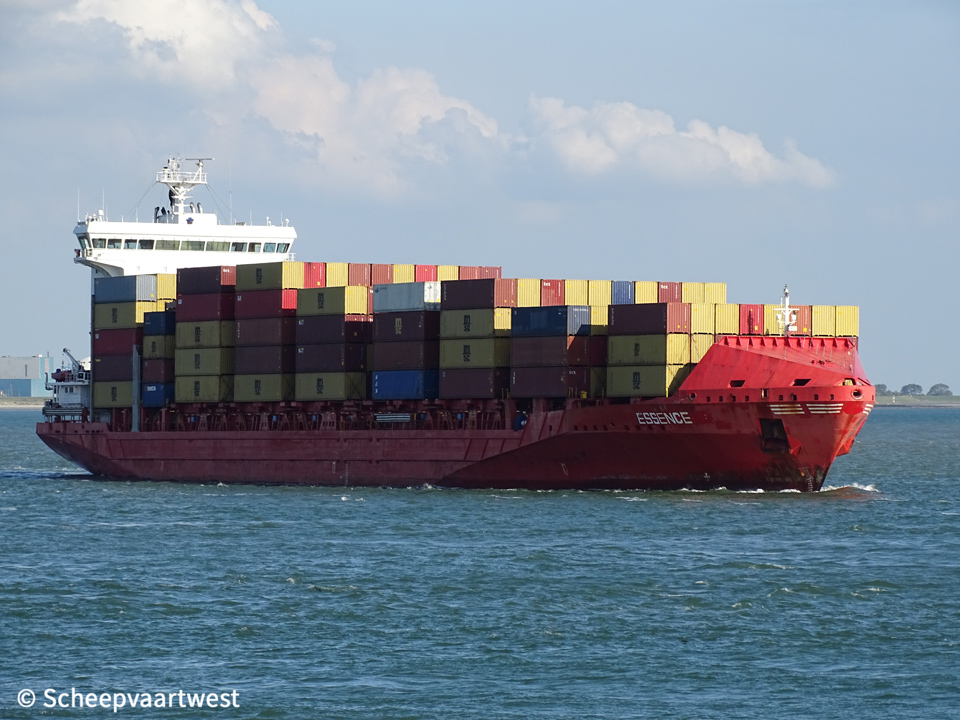

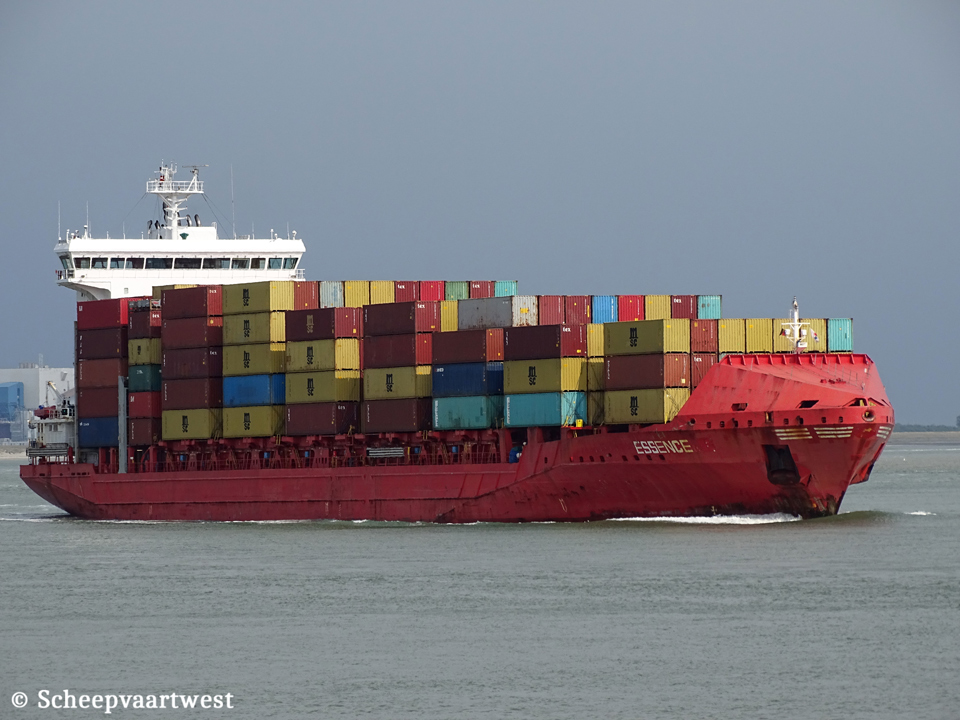

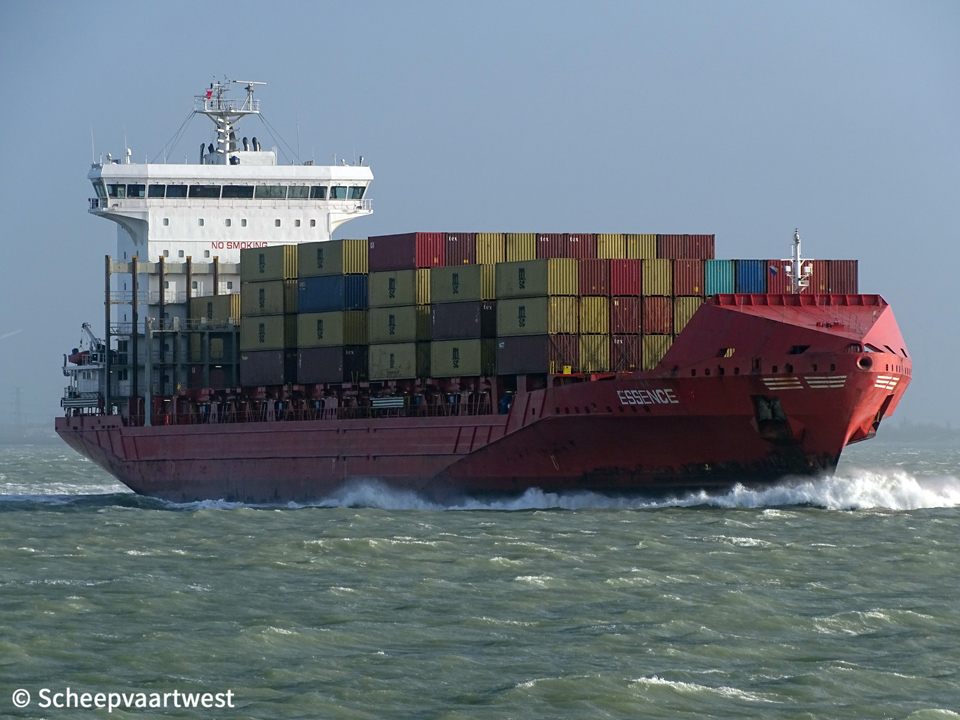

| Westerschelde 24/12/19 | Westerschelde 10/09/19 | Westerschelde 10/06/20 |
|
Name |
ESSENCE |
|
Previous names |
2011 - 2019 Aalderdijk |
|
Type |
Cellular feeder containership |
|
IMO-number |
9491496 |
|
Call sign |
PBNL |
|
Flag |
The Netherlands |
|
Port of registry |
Harlingen |
|
Previous flags |
2011 - 2019 Liberia, Monrovia - Call sign: A8VB7 |
|
GT |
17.368 t |
|
DWT |
Summer: 21.298 t |
|
NT |
7.822 t |
|
Number of 20ft containers |
1.436 |
|
Container capacity 14t |
1.054 |
|
Reefer capacity |
431 |
|
Length |
168,13 m overall 159,80 m registered |
|
Breadth |
25,60 m registered |
|
Draught |
10,50 m |
|
Depth |
15,20 m moulded |
|
Speed |
20,0 knots |
|
Built |
2011 |
|
Keel laid |
15/12/2008 |
|
Launch date |
23/03/2011 |
|
Date of completion |
22/09/2011 |
|
Builder |
Sainty Shipbuilding (Yangzhou) Corp., Ltd. 18, Binjiang East Road Economic Development Zone, Yizheng Yangzhou City, 211404 Jiangsu People's Republic of China |
|
Yard number |
07STIG141 |
|
Hull material |
Shipbuilding steel (standard) Higher tensile steel |
|
Hull type |
Partly double bottom (e.g. interrupted in way of machinery space) |
|
Watertight bulkheads |
8 |
|
Continuous decks |
1 |
|
Main engine |
1x QMD/Wärtsilä 6RTflex 60C-B - 2 stroke 6 cylinder 600 x 2.250 mm combustion engine 14.520 kW at 114,0 rpm Year of manufacture: 2010 Manufacturer: Wärtsilä Qiyao Diesel Co., Ltd. 2988 Jiang Shan Road Lingang New Industrial Area Shanghai 201306 People's Republic of China |
|
Propellers |
1x Controllable pitch propeller - aft at 114,0 rpm |
|
Boilers |
1x Thermal oil heater, oil fired - 10,0 bar Heating surface: 58,0 m² Manufacturer: Göteborgs Energy Systems AB Angpannegatan 15A 417 05 Göteborg Sweden 1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 248,2 m² Manufacturer: Gesab (Shaoxing) Emission System Co., Ltd. Sanjie Town Industry Zone Shengzhou City, 312452 Zhejiang People's Republic of China Year of manufacture: 2009 |
|
Electric installations |
4x plants each 450 V - 1.500 kVA 1x Plant 450 V - 400 kVA 1x Plant 24 V - 200 Ah 2x Plants each 24 V - 200 Ah 2x Plants each 24 V - 200 Ah |
|
Generators |
4x Wärtsilä 8L20 main diesel generatorsets each1.500 kVA |
|
Emergency generator |
1x Diesel generatorset 400 kVA |
|
Batteries |
1x Battery for automation 200 Ah 2x Batteries for UPS navigation each 200 Ah 2x Batteries for start emergency engine each 200 Ah |
|
Compressed air receivers |
2x Receivers each 2.600 litres - 33,0 bar 1x Receiver30 litres - 30,0 bar 1x Receiver 1.000 litres - 7,0 bar |
|
Bow thruster |
1x Transverse thruster 1.000 kW, forward |
|
Tank capacities |
Ballast: 6.440 m³ |
|
Anchor equipment |
3x Anchors weight each 7.350 kg Chain length: 605,00 m Diameter: 66 mm |
|
Cargo gear |
Gearless |
|
Crew size |
24 |
|
Manager |
JR Shipping B.V. Harlingen The Netherlands |
|
Previous managers |
Navigia Shipmanagement B.V., 9723 AZ Groningen - The Netherlands |
|
Registered owner |
Essence Bewaarder B.V. Harlingen The Netherlands |
|
Previous owners |
Aalderdijk Navigation Ltd., Groningen - The Netherlands |
|
Latest data adjustment |
23 September 2020 |
