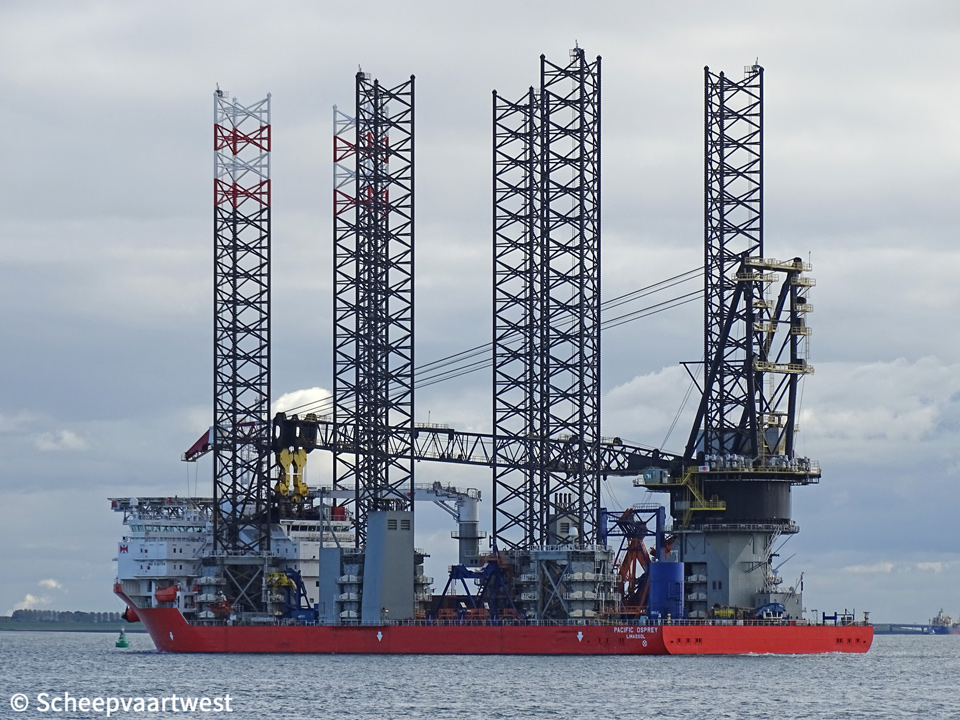

Westerschelde 20 October 2015 |
|
Name |
PACIFIC OSPREY |
|
Type |
Windform installation vessel - Self-elevating unit - Crane operation |
|
IMO-number |
9621704 |
|
Call sign |
5BUF3 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
GT |
24.586 t |
|
DWT |
Summer: 13.174,2 t |
|
NT |
7.376 t |
|
Length |
160,90 m overall 155,60 m between perpendiculars |
|
Breadth |
49,03 m extreme |
|
Draught |
Max: 6,00 m |
|
Depth |
10,40 m to main deck |
|
Speed |
Service: 13,5 knots |
|
Built |
2012 |
|
Keel laid |
22/12/2011 |
|
Launch date |
14/07/2012 |
|
Date of completion |
28/12/2012 |
|
Builder |
Samsung Heavy Industries Co., Ltd. Geoje Shipyard South Korea |
|
Yard number |
2012 |
|
Hull material |
Steel |
|
Propulsion |
Diesel/electric Engine: MAN-B&W 9L27/38 - 9 cylinder Main generator sets: 8x 2,8 MWe Stern thrusters: 4x 3,4 MW Compact Azipod Bow thrusters: 2x 2,2 MW retractable + 2x 2,2 MW tunnel |
|
Cargo area |
Main deck area: 4.300 m² Deck loading: 15,0 t/m² |
|
Legs & jacking system |
Number of legs: 6 Sets of 3-Chord truss type Jacking system: High speed rack & Pinion Speed: VFDs 0,1 - 2,4 m/min |
|
Operating conditions for jacking |
Service Restrictions when Jacking: Wind Speed: 20 m/s Significant wave height: 2,50 m Leg length: 105,00 m Maximum leg protrusion: 80,00 m below the hull |
|
Tank capacities |
Marine gas oil: 4.200 m³ Lube oil: 32 m³ Fresh water - potable: 1.500 m³ Water ballast, 12.000 m³ (approx.) Sewage (black + grey): 630 m³ |
|
Anchor equipment |
Length: 713,60 m Diameter: 87 mm |
|
Cargo gear |
Main crane: Main hoist SWL in tandem 1.425 t @ 31,00 m (2 x 712,5 t hoists) Auxiliary hoist: 700 t @ 40,00 m Whip hoist: 50 t @ 113,00 m (man-riding) Max operating wind speed: 20 m/s 4 Load control hoists 25 t SWL each 3 Block control tuggers 25 t SWL each Auxiliary cranes: Main hoist SWL: 35 t @ 6,50 to 30,00 m (man-riding) Aux hoist SWL: 25 t @ 6,50 to 40,00 m Knuckle boom crane 4,0 T @ 14,00 m, 1,0 t @ 30,00 m (man-riding) |
|
Heli-deck |
Helicopter landing deck: Diameter: 22,00 m @ 12,8 t |
|
Accommodation |
Cabins: 111 Single berth cabins Recreation facilities: Cafeteria with seating for 70 personnel 2x Day rooms Fitness centre 2x TV lounges Offices: Operations office 2x Conference rooms 4x Multi-use offices |
|
Manager |
Swire Blue Ocean A/S Arne Jacobsens Allé 7 2300 København Denmark |
|
Registered owner |
Swire Pacific Offshore (Cyprus) Ltd. |
|
Latest data adjustment |
06 August 2020 |
