Westerschelde 02 October 2014 |
 |
| Westerschelde 02/10/14 |
|
Name |

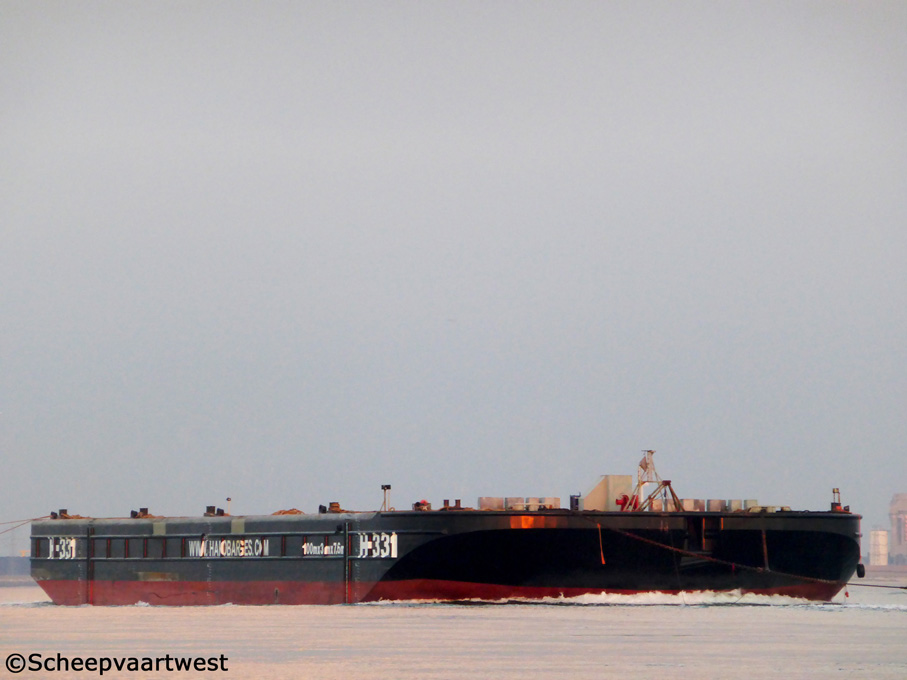

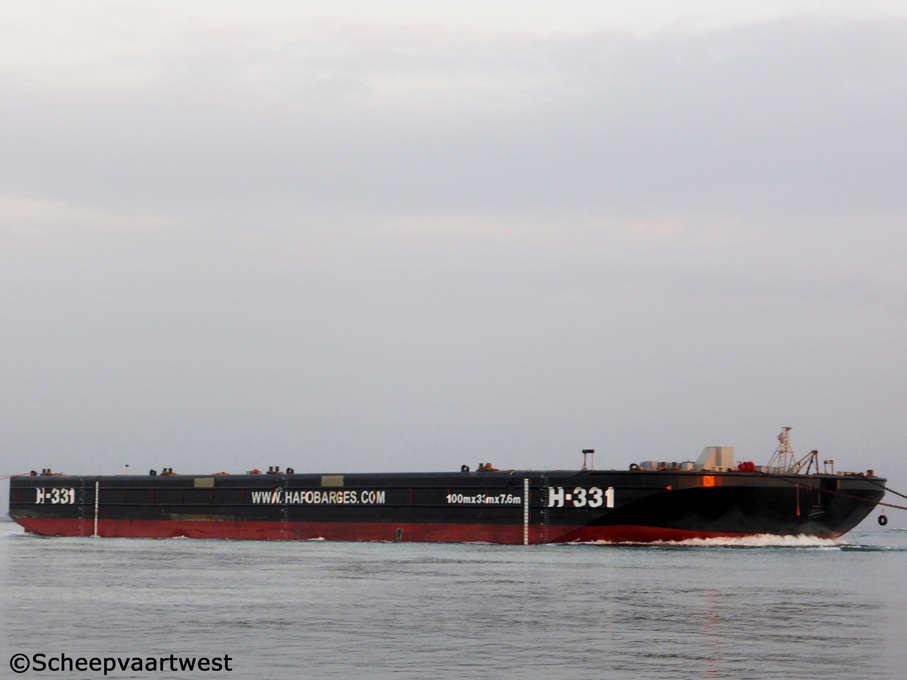

PONTOON H-331 |
|
Type |
Pontoon Thanks to the special design of the aft ship they can also be used as a launch barge for large off-shore platform jackets or as a 'roll on roll of' barge |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
6.756 t registered |
|
DWT |
16.415 t |
|
NT |
2.026 t registered |
|
Light weight |
2.500 t |
|
Length |
100,00 m |
|
Breadth |
33,50 m |
|
Draught |
Summer: 6,05 m |
|
Hull material |
Steel |
|
Deck load |
15,0 t/m² |
|
Deck area |
2.900 m² |
|
Max. load capacity |
15.420 t |
|
Mooring equipment |
10x Bollard sets of 500 kN 6x Polypropylene lines of 90 mm x 100,00m length |
|
Towing arrangement |
1x Forerunner, 60 mm Studlink chain, length 10,00m 2x 60 mm studlink chain length 25,00 m 1x Steel retrieval wire, 25 mm, length 40,00 m Greenpin steel shackles D type - SWL 120 t Delta plate 50 mm Smit towing brackets 150 t Emergency towing wire 76 mm / 110,00 m |
|
Tank capacities |
Sludge: 8,0 m³ Cooling water tank: 80 m³ Water ballast tanks: 18 tanks – Total 21.325 m³ |
|
Owner |
Hapo International Barges The Netherlands |
|
Latest data adjustment |
20 November 2014 |
