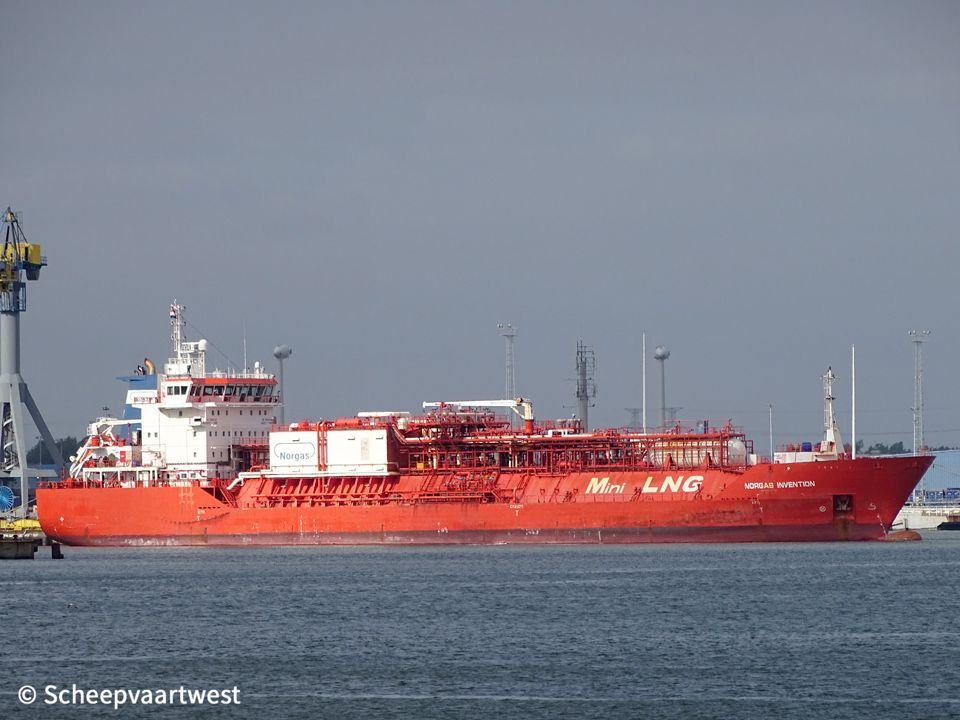

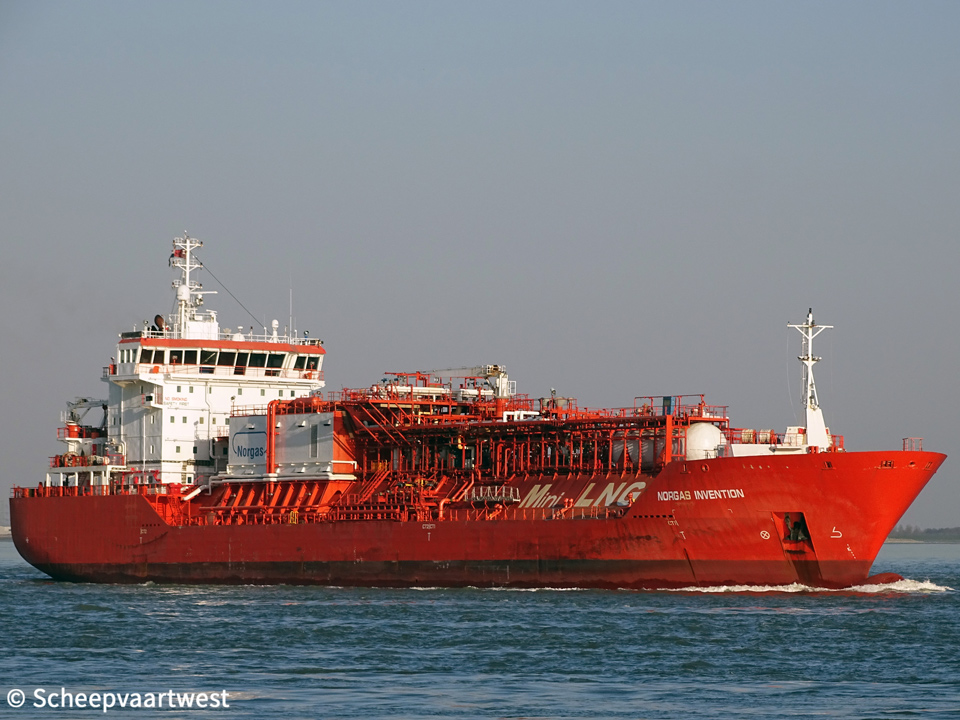

Norgas Invention - IMO 9378292

Westerschelde 27 March 2017

Name

NORGAS INVENTION

Type

Liquefied natural gas carriage - LNG

IMO-number

9378292

Call sign

9V8220

Flag

Republic of Singapore

Port of registry

Singapore City

GT

10.105 t

DWT

Summer: 10.441,3 t

NT

3.032 t

Length

137,01 m overall

127,16 m between perpendiculars

Breadth

19,83 m extreme

Draught

Max: 8,29 m

Depth

11,50 m

Speed

Max: 16,0 knots

Built

2011

Keel laid

18/01/2009

Launch date

15/05/2010

Date of completion

01/01/2011

Builder

Taizhou Wuzhou Ship Industry Co., Ltd.

Taizhou Jiangsu

China

Yard number

WZL0603

Hull material

Steel

Hull type

Double side

Main engine

1x MaK 7M43C - 4 stroke 7 cylinder 430 x 610 mm combustion engine 7.000 KW kW/ 9.520 bhp

Builder: Caterpillar, Kiel - Germany

Propellers

1x Controllable pitch propeller

Boilers

1x Thermal oil heater, exhaust heated QFK750-0.7

90,0 m²

1x Thermal oil heater, oil fired QXC-150W

77 m²

Shaft generator

1.200 kW

Generators

3x Caterpillar 3508 B - 4 stroke 8 cylinder 170 x 190 diesel engine each 950 kW connected to generators each 775 kW

Emergency generator

1x MWM TBD234V6 diesel generatorset 150 kVA / 120 kW

Builder: MWM GmbH Werk Mannheim - Germany

Bow thruster

1x 700 kW

Number of cargo tanks

2

Cargo tank capacity

10.000 m³

Number of pumps

1x Cargo pump 640 m³/h

1x Cargo pump 380 m³/h

Min. temp

-163°C

Pressure

5,2 bar

Tank capacities

Ballast: 5.787,7 m³

Anchor equipment

Length: 550,00 m

Diameter: 54 mm

Crew

15

Manager

Norgas Carriers Pte Ltd.

Singapore

Republic of Singapore

Registered owner

Singco Gas Pte Ltd.

c/o Norgas Carriers Pte Ltd.

Singapore

Republic of Singapore

Renamed

2019 Coral Fungia

Liberia, Monrovoa - Call sign: D5SB8

Owner: Coral Fungia Shipping BV, Rotterdam – The Netherlands

Manager: Anthony Veder Rederijzaken B.V., Rotterdam – The Netherlands

Latest data adjustment

06 May 2024
