Westerschelde 18 June 2018 |
 |
|
| Westerschelde 09/04/16 | |
|
Name |

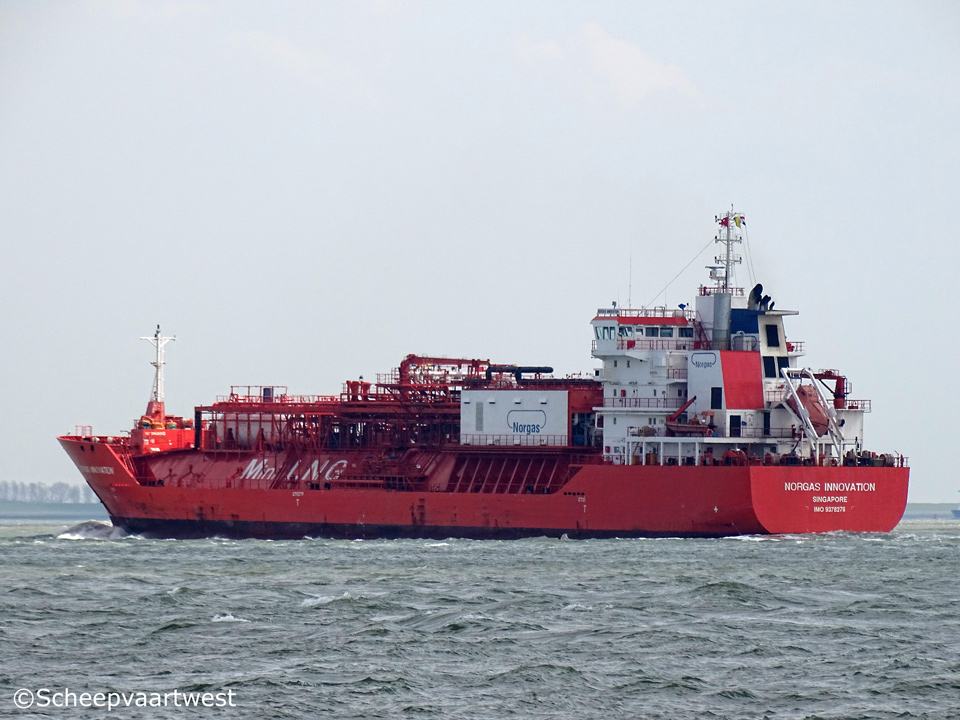

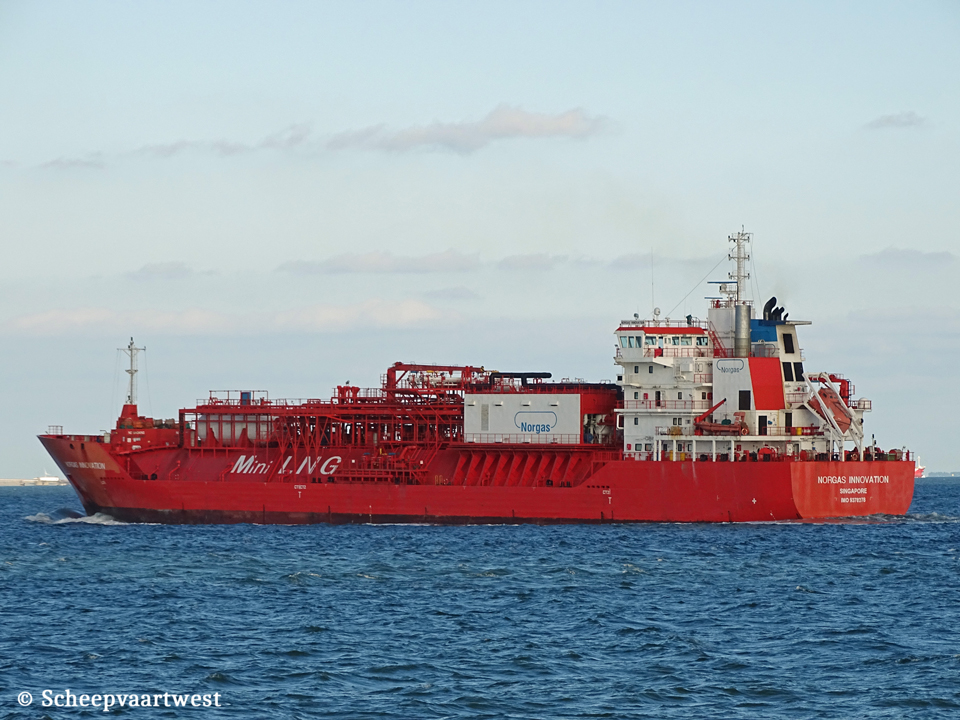

NORGAS INNOVATION |
|
Type |
Liquefied gas tanker - LPG/LNG tanker |
|
IMO-number |
9378278 |
|
Call sign |
9VPA2 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
GT |
10.105 t |
|
DWT |
Summer: 10.441 t |
|
NT |
3.032 t |
|
Light displacement |
5.990 t |
|
Length |
137,06 m overall 127,16 m between perpendiculars |
|
Breadth |
19,82 m extreme |
|
Draught |
8,30 m |
|
Keel to mast end |
39,19 m |
|
Depth |
11,50 m |
|
Speed |
16,0 knots |
|
Built |
2010 |
|
Keel laid |
26/01/2007 |
|
Launch date |
01/10/2008 |
|
Date of completion |
07/01/2010 |
|
Builder |
Taizhou Wuzhou Shipbuilding Industry Co., Ltd. Taizhou Jiangsu China |
|
Yard number |
WZL0601 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MaK 7M43C - 4 stroke 7 cylinder 430 x 610 mm combustion engine 7.000 kW / 9.517 hp |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Thermal oil heater, oil fired QXC-150W 1x Thermal oil heater, exhaust heated QFK750-0.7 |
|
Shaft generator |
1x 1.900 kW |
|
Generators |
3x Caterpillar 3508 B main diesel generatorsets each 910 kW |
|
Emergency generator |
1x Deutz TBD234V6 diesel generatorset 150 kW Builder: Deutz Power Systems GmbH & Co. KG Werk Mannheim - Germany |
|
Bow thruster |
1x Brunvoll FU-63-LTC-1550 - 700 kW |
|
Number of cargo tanks |
2 |
|
Cargo tank capacity |
10.000 m³ |
|
Number of pumps |
2x Cargo pumps each 640 m³/h |
|
Min. temp |
-163°C |
|
Pressure |
5,2 bar |
|
Tank capacities |
Ballast: 5.788 m³ |
|
Anchor equipment |
Length: 550,00 m Diameter: 54 mm |
|
Manager |
I.M. Skaugen SE Karenslyst Alle 8 B 0278 Oslo Norway |
|
Operator |
Norgas Carriers Pte. Ltd. 8 Shenton Way #49-04 AXA Tower Singapore 068811 Republic of Singapore |
|
Registered owner |
Innovation Shipping Company Pte. Ltd. |
|
Sister ships |
2010 Norgas Creation - IMO 9378280 2011 Norgas Conception - IMO 9378307 2011 Norgas Invention - IMO 9378292 |
|
Renamed |
06/2019 - 2022 Coral Fraseri
2022 Coral Fraseri
|
|
Latest data adjustment |
23 September 2024 |
