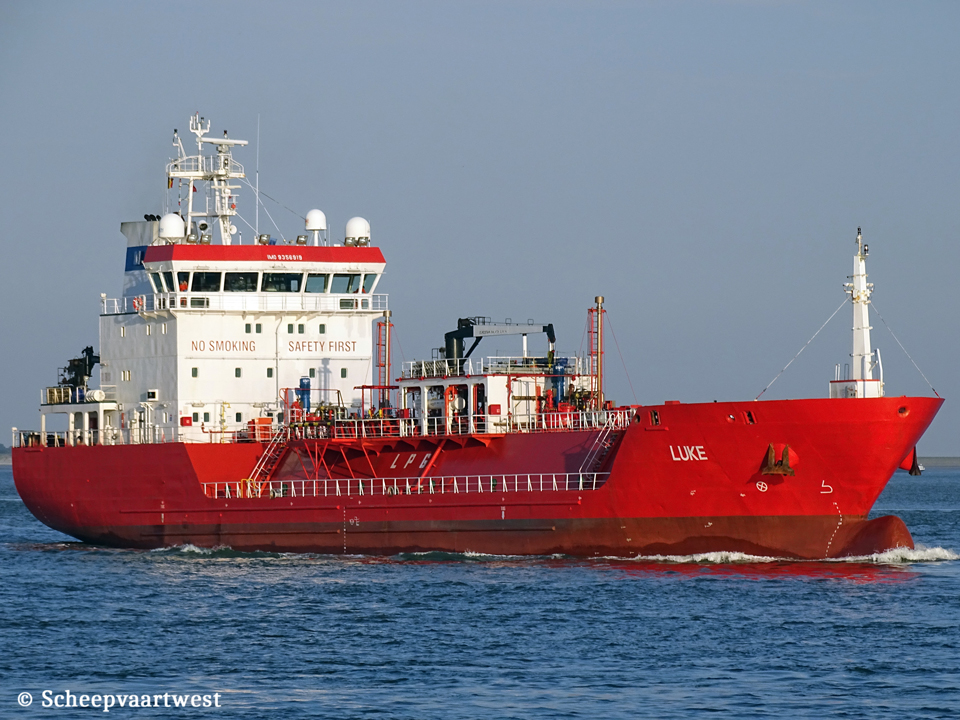

Luke IMO 9356919 10

Westerschelde 30 August 2016


Luke IMO 9356919 06   Luke IMO 9356919 02   Luke 01   Luke IMO 9356919 07   Luke IMO 9356919 08   Luke IMO 9356919 09

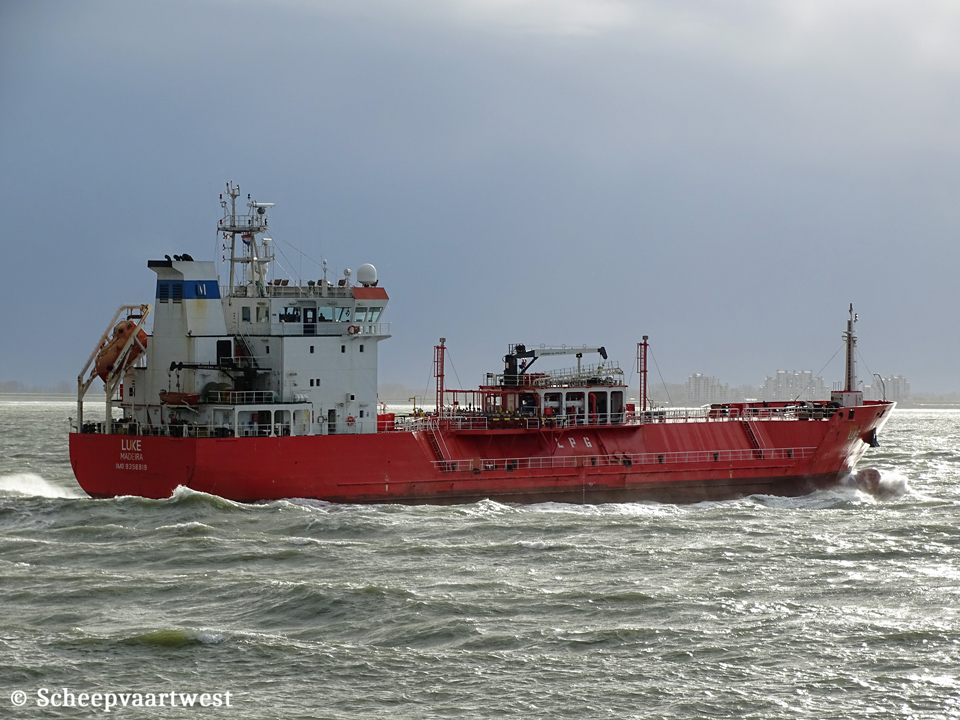

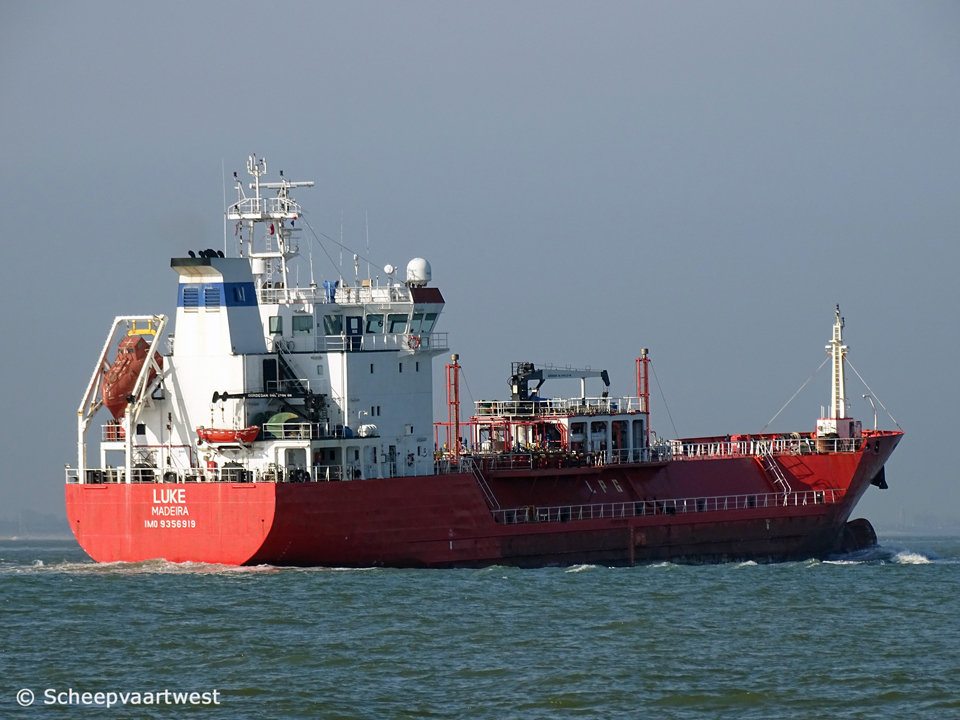

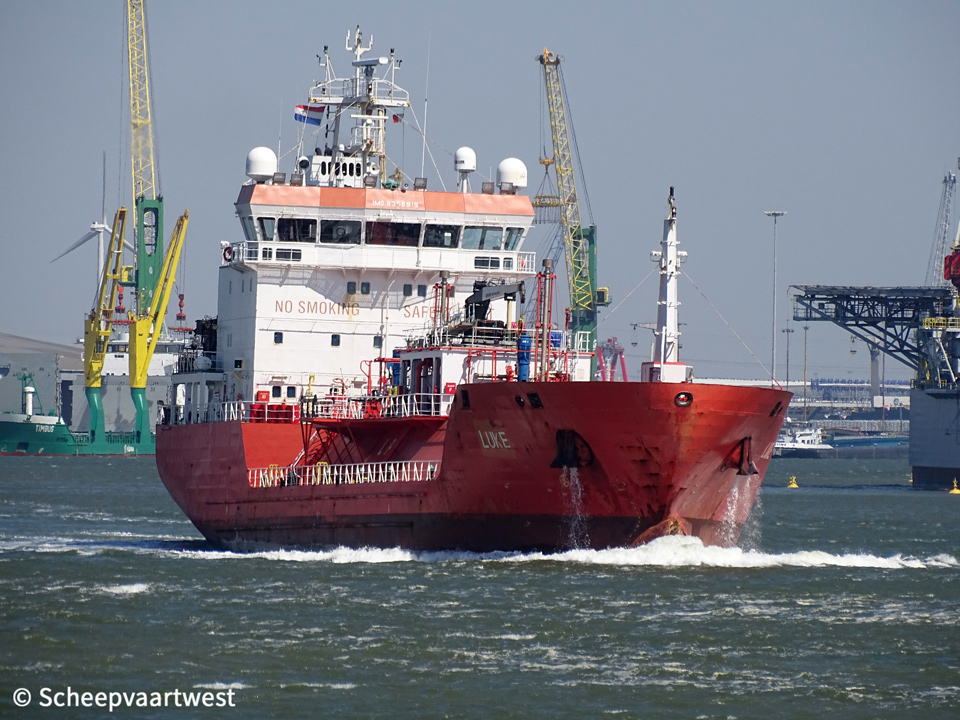

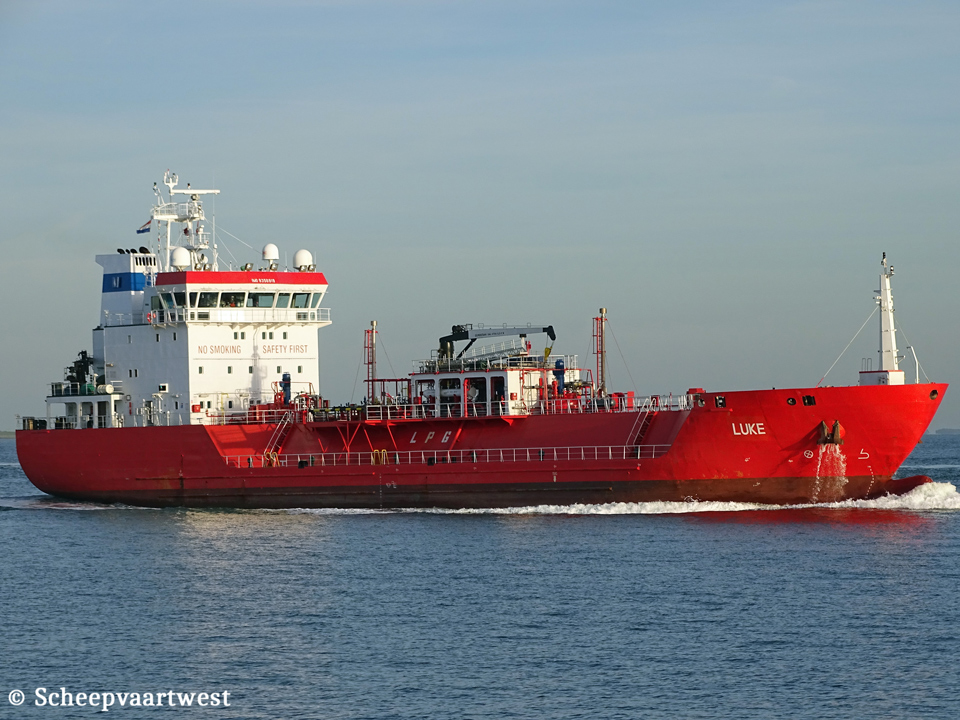

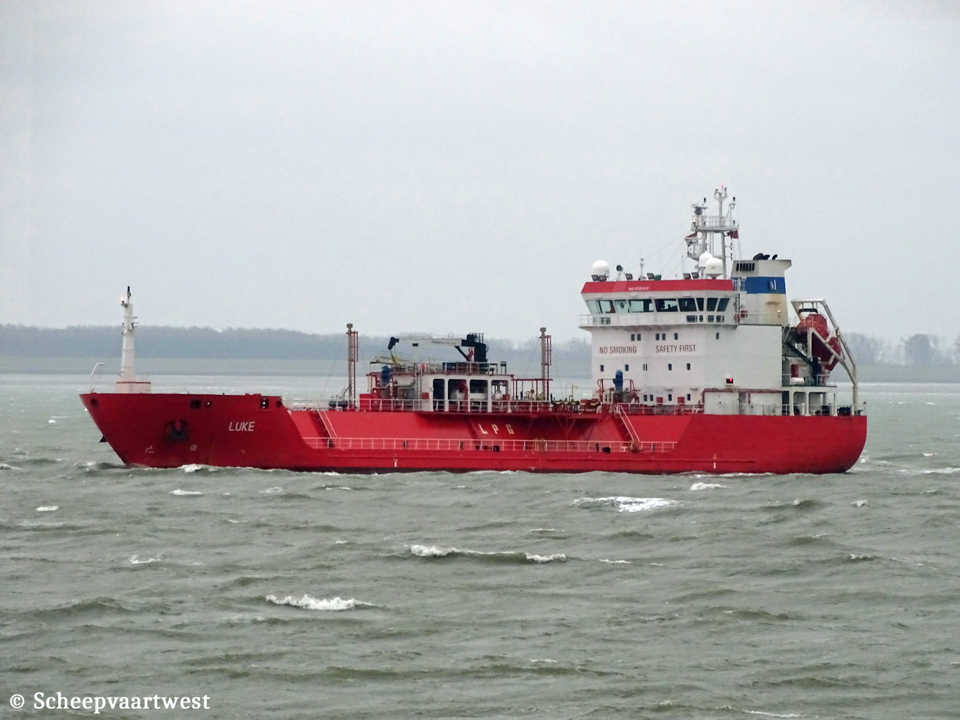

Westerschelde 17/02/20 Westerschelde 29/09/18 Vlissingen 20/04/20 Westerschelde 12/01/19   Westerschelde 11/04/18   Westerschelde 14/04/16

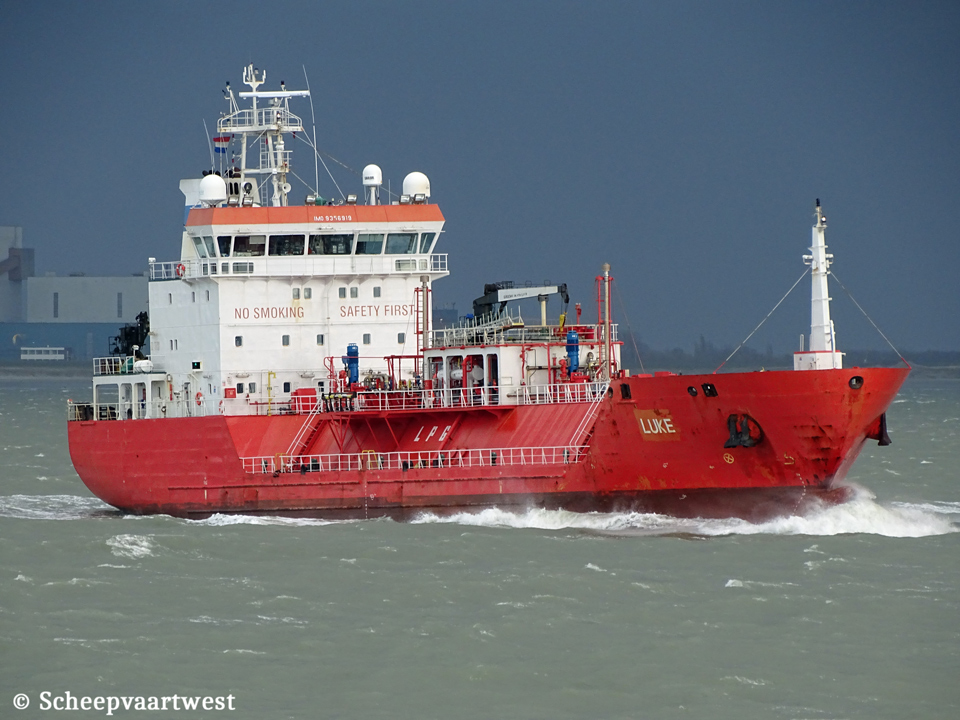

Luke IMO 9356919 03   Luke IMO 9356919 11

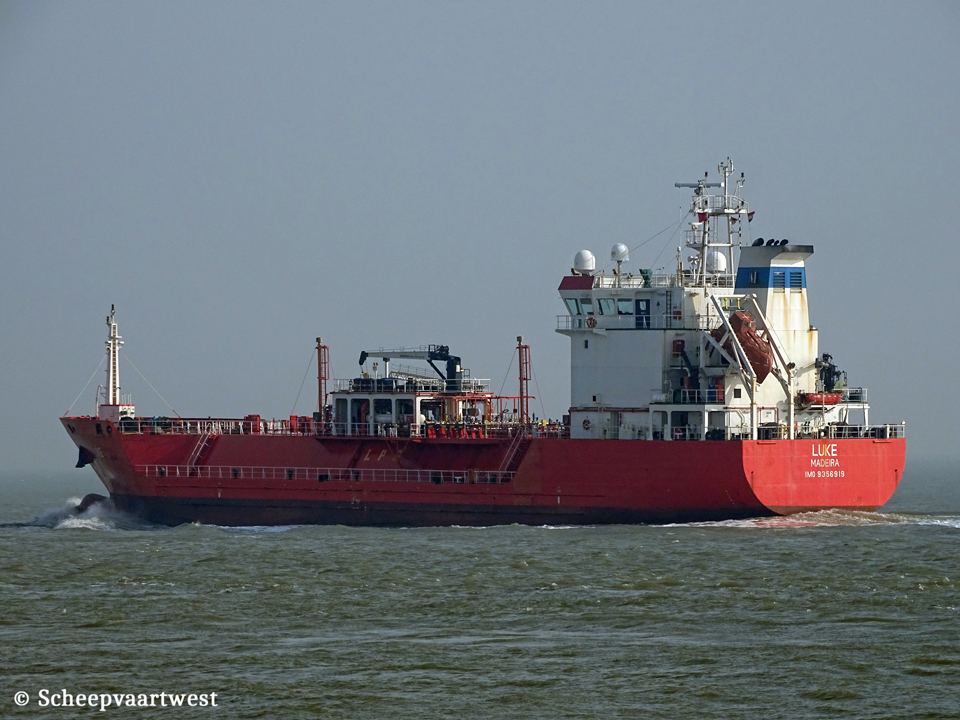

Westerschelde 17/02/20   Westerschelde 03/03/18


Name

LUKE

Previous names

2006 - 05/2011 Merope Star

Location

Westerschelde 30 August 2016

Type

Liquefied gas tanker - LPG

IMO-number

9356919

Classification

Registro Italiano Navale

Call sign

CQOU

Flag

Portugal

Port of registry

Madeira

GT

3.430 t registered

DWT

Summer: 3.811 t

NT

1.029 t registered

Length

87,50 m overall

82,50 m between perpendiculars

82,60 m registered

Breadth

15,00 m moulded

Draught

Summer: 6,50 m

Freeboard

1.300 mm

Depth

7,80 m moulded

Speed

14,0 knots

Built

2006

Keel laid

26/07/2005

Launch date

12/02/2006

Date of completion

10/07/2006

Builder

Madenci Shipyard Gemi San Ltd. Sti.

Eregli

Turkey

Yard number

30

Hull material

Steel

Hull type

Double hull

Bulkheads

Non tight: 6

Water tight: 31

Gas tight: 1

Oil tight: 2

Main engine

1x MAN-B&W ALPHA 6L27/38 - 4 stroke 6 cylinder 270 x 380 mm combustion engine maximum continuous rating 2.040 kW at 800 rpm

Manufacturer: MAN B&W Alpha Diesel A/S

Propellers

1x Fixed pitch propeller

Manufacturer: MAN B&W Alpha Diesel A/S

Boilers

1x Exhaust gas steam generator GMT EG650 - 12,0 bar

1x Steam generator GMT V80 - 12,0 bar

Manufacturer: Garioni Naval SRL.

Shaft generator

1x Newage HC.M634H2 - 650 kW

Manufacturer: Newage International Ltd.

Generators

3x Yanmar 6L165L-EN/ Leroy Somer LSA 52.2 VS40/8p diesel generatorsets each 360 kW each

Manufacturer: Leroy Somer

Emergency generator

1x Volvo Penta diesel generatorset 124 kW

Bow thruster

1x 368 kW

Number of cargo tanks

2

Cargo tank capacity 98%

98%: 3.294,07 m³

100%: 3.361,3 m³

Pumps

2x cargo pumps each 300 m³/h

Min. cargo temperature

-48°C

Max. cargo pressure

9,97 bar

Number of tanks

Ballast: 17

Fuel oil: 7

Lubricating oil: 4

Diesel oil: 4

Fresh water: 3

Chain: 2

Sludge: 2

Sea water: 1

Waste water: 1

Tank capacities

Diesel oil: 96,52 m³

Fresh water: 99,83 m³

Fuel oil: 339,64 m³

Lube oil: 27,78 m³

Ballast: 1.671,65 m³

Lifting equipment

1x Crane - SWL 4,0 t

Crew

14

Operator

Lumaship S.r.l.

Isola E2, Scala B, Interno 6, Centro Direzionale

Via Gianni Poozio 4

80143 Naples NA

Italy

Registered owner

Tower Bridge Ltd.

Care of Lumaship S.r.l.

Isola E2, Scala B, Interno 6, Centro Direzionale

Via Gianni Poozio 4

80143 Naples NA

Italy

Sister ships

Atlas Star - IMO 9344198

Halcyon Star - IMO 9344203

Taygete Star - IMO 9356921

Renamed

06/2021 B Gas Monarch

Portugal, Madeira - Call sign: CQOU

Owner: Louke Shipping Company Limited

Operator: Donnelly Tanker Management Ltd.

08/2023 C Gas Monarch

Portugal, Madeira – Call sign: CQOU

Owner: GasShip Aps.

Manager: Hartmann Gas Carriers Germany GmbH & Co. KG, Leer - Germany

Latest data adjustment

27 April 2024
