| Westerschelde 09 September 2016 |
|
Name |

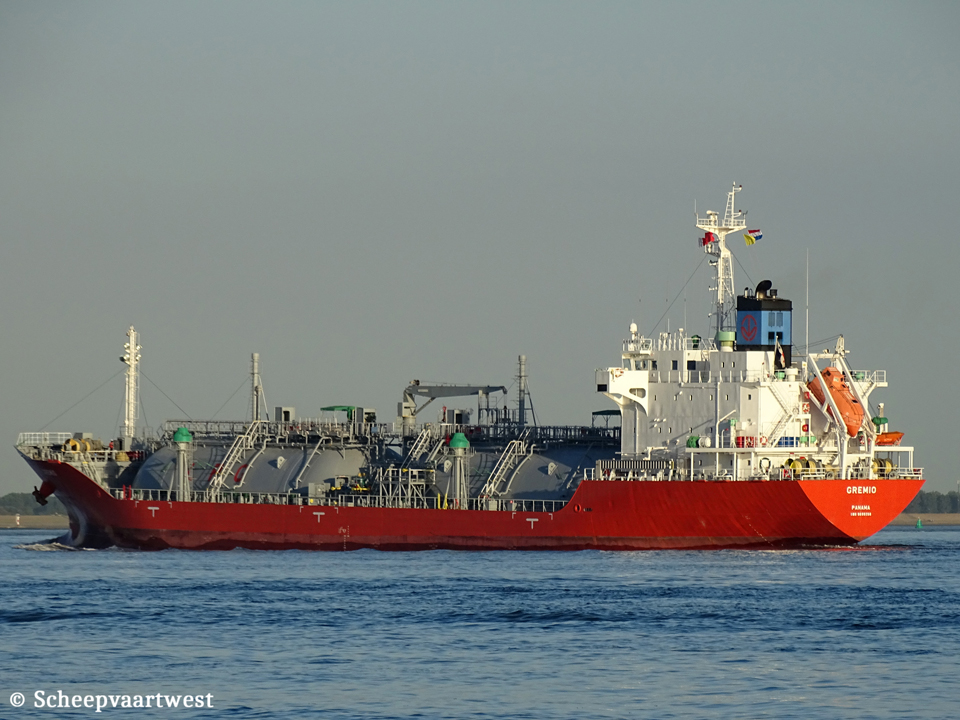

GREMIO |
|
Type |
Liquefied gas tanker - LPG |
|
IMO-number |
9699256 |
|
Call sign |
3EBI6 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GRT |
5.859 t |
|
DWT |
6.486,19 t |
|
NRT |
2.090 t |
|
Length |
119,29 m overall |
|
Breadth |
18,20 m moulded |
|
Draught |
Summer: 6,46 m |
|
Moulded L x Bx D |
112,50 x 18,20 x 8,40 m |
|
Registered L x Bx D |
112,666 x 18,20 x 8,40 m |
|
Keel to mast end |
35,29 m |
|
Freeboard |
Summer: 1.971 mm |
|
Depth |
8,40 m moulded |
|
Speed |
Max: 16,2 knots |
|
Built |
2014 |
|
Keel laid |
26/02/2014 |
|
Launch date |
15/05/2014 |
|
Date of completion |
12/08/2014 |
|
Builder |
Murakami Hide Shipbuilding Co., Ltd. Imabari Japan |
|
Yard number |
606 |
|
Hull material |
Steel |
|
Main engine |
1x Hitachi/MAN-B&W 7L35MC - 2 stroke single acting 7 cylinder 350 x 1.050 mm combustion engine 4.550 kW / 6.186 hp at 210,0 rpm Manufacturer :Hitachi Zosen Corporation Innoshima Works - Japan |
|
Propeller shaft |
1x Sea water lubrication shaft Diameter: 360 mm |
|
Propellers |
1x fixed pitch propeller |
|
Boilers |
1x Auxiliary Vertical boiler - 0,70 MPa Evaporation: 1,39 t/th Manufacturer: Miura Co., Ltd |
|
Generators |
3x Generatorsets total 1.080 kVA |
|
Cargo tank capacity |
Liquid: 7.534 m³ |
|
Number of pumps |
2x Cargo pumps each 450 m³/h |
|
Max pressure |
1,77 MPa |
|
Min temp |
-10°C |
|
Tank capacities |
Fuel oil: 758 m³ Fresh water: 249 m³ |
|
Commercial manager |
Vitol SA boulevard du Pont d'Arve, 28 1205 Geneva Switzerland |
|
ISM manager |
Swan Shipping Corporation 3rd Floor, S & L Building, 1500, Roxas Boulevard, Ermita Manila Philippines |
|
Registered owner |
Yaoki Shipping SA - Republic of Panama Care of Vitol SA boulevard du Pont d'Arve, 28 1205 Geneva Switzerland |
|
Latest data adjustment |
30 March 2024 |
