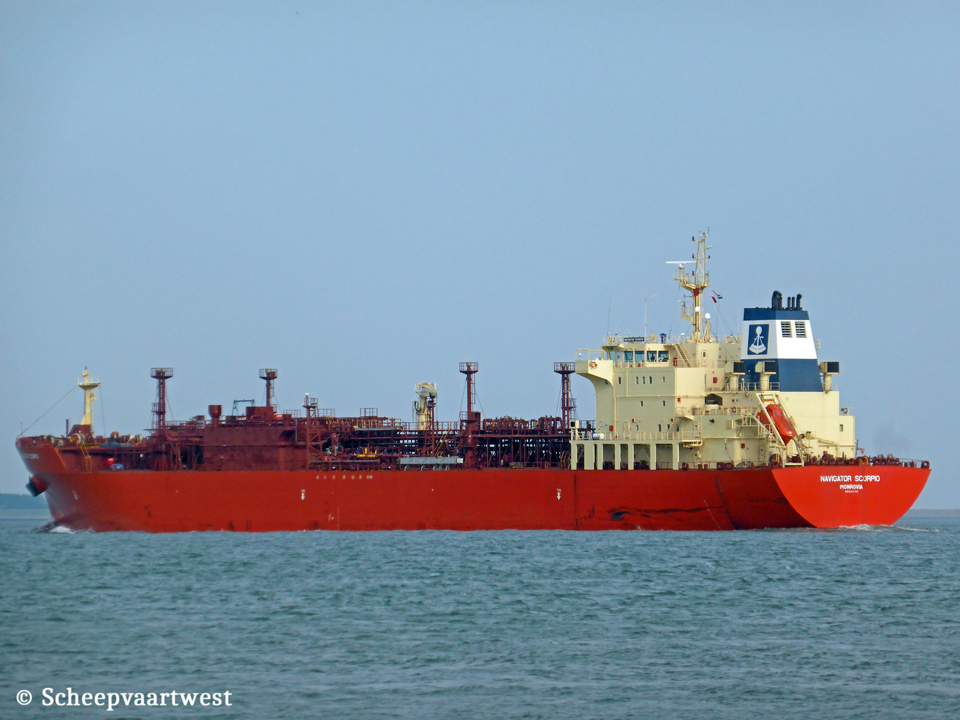

| Westerschelde 24 July 2015 |
|
Name |
NAVIGATOR SCORPIO |
|
Previous names |
2009 - 06/2013 Maersk Heritage |
|
Type |
Liquefied petroleum gas carrier with independent tank |
|
IMO-number |
9404792 |
|
Call sign |
D5DP6 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
2009 - 06/2013 Republic of Singapore, Singapore City |
|
GT |
18.311 t |
|
DWT |
23.328,6 t |
|
NT |
5.493 t |
|
Displacement |
33.303,6 t |
|
Light displacement |
9.971 t |
|
Length |
159,97 m overall 152,20 m between perpendiculars |
|
Breadth |
25,63 m moulded |
|
Draught |
Summer: 10,92 m |
|
Keel to mast end |
44,75 m |
|
Freeboard |
3.013 mm |
|
Depth |
16,40 m moulded |
|
Speed |
Max: 15,0 knots |
|
Build |
2009 |
|
Keel laid |
18/03/2009 |
|
Launch date |
15/05/2009 |
|
Delivery date |
24/07/2009 |
|
Builder |
Hyundai Mipo Dockyard Co., Ltd. 100 Bangeojinsunhwan-Doro Dong-Gu Ulsan South Korea |
|
Yard number |
8008 |
|
Hull material |
Steel |
|
Hull type |
Double bottom |
|
Main engine |
1x MAN-B&W/Hyundai 6S45MC-C - 2 stroke 6 cylinder 460 x 1/932 mm combustion engine Mcr 7.860 kW / 10.686 hp at 129,0 rpm Manufacturer: Hyundai Heavy Industries Co., Ltd. |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Fired boiler 1x Unfired exhaust gas boiler |
|
Generators |
3x Hyundai/Himsen 5H21/32 Generatorsets each 780 kW |
|
Number of tanks |
4 |
|
Cargo tank capacity |
Liquid: 20.324 m³ |
|
Deck tanks |
2 |
|
Deck tank capacity |
Each 155 m³ - 48°C / 18,2 bar |
|
Number of pumps |
8x Svanehoy Deepwell cargo pumps each 250 m³/h |
|
Min temp |
-48°C |
|
Pressure |
5,3 bar |
|
Tank capacities |
Fuel oil: 1.966,00 m³ Lub oil: 93,80 m³ Fresh water:385,40 m³ Ballast: 9.194,00 m³ Diesel oil: 260,10 m³ |
|
Lifting equipment |
1x Engine room crane - SWL 2,0 t 1x Hose handling crane - SWL 5,0 t 1x Provision crane - SWL 3,0 t |
|
Crew |
25 |
|
Commercial manager |
Navigator Gas LLC The Verde, 10, Bressenden Place London, SW1E 5DH United Kingdom |
|
ISM manager |
Navigator Gas Shipmanagement 10, Bressenden Place London, SW1E 5DH United Kingdom |
|
Operator |
Navigator Gas Ship Management (Denmark) ApS Smakkedalen 4 2820 Gentofte Denmark |
|
Registered owner |
Navigator Scorpio LLC Care of Navigator Gas LLC The Verde, 10, Bressenden Place London, SW1E 5DH United Kingdom |
|
Previous names & owners |
2009 - 06/2013 Maersk Heritage - A.P. Moller Singapore Pte. Ltd. |
|
Latest data adjustment |
28 September 2024 |
