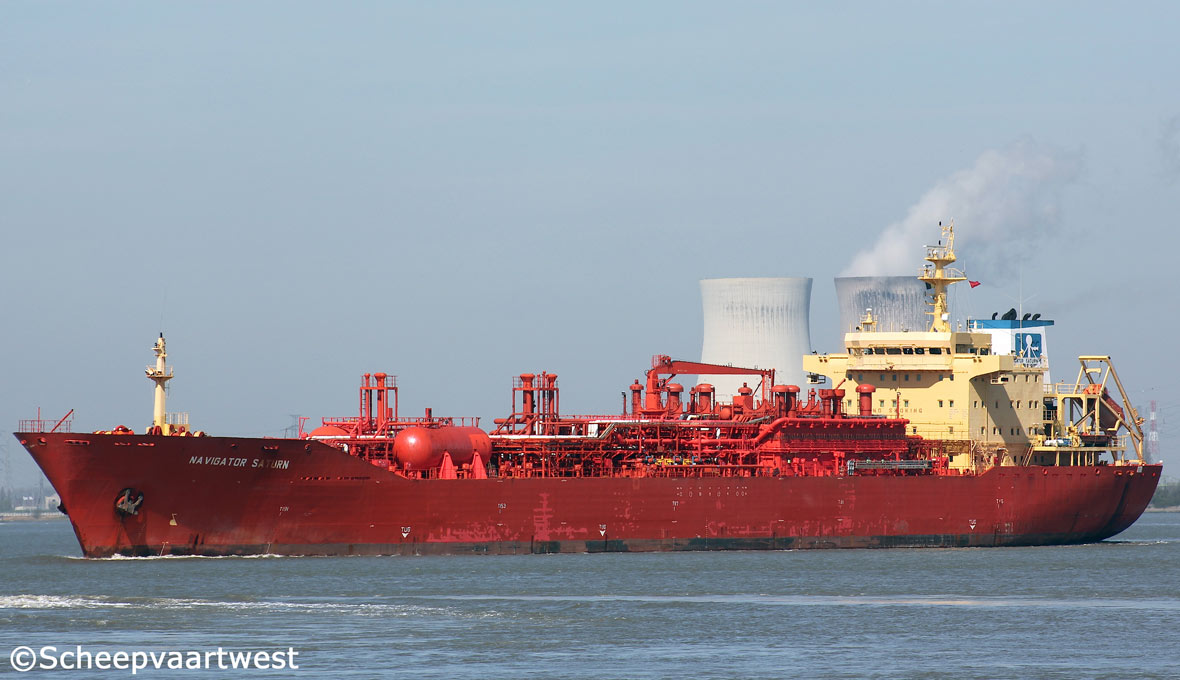

Vlissingen 23 August 2014 |
 |
 |
 |
||

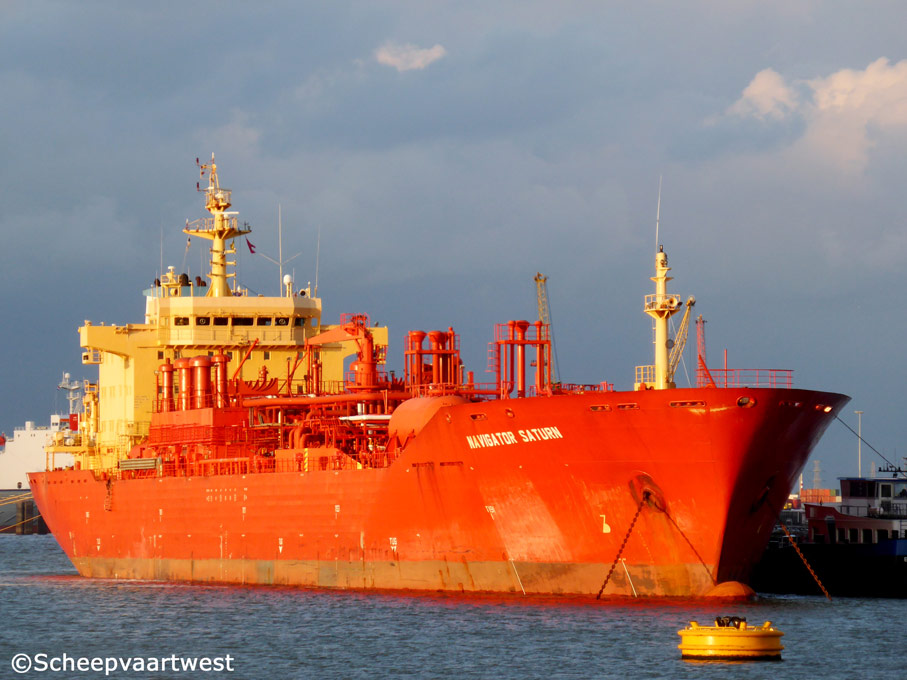

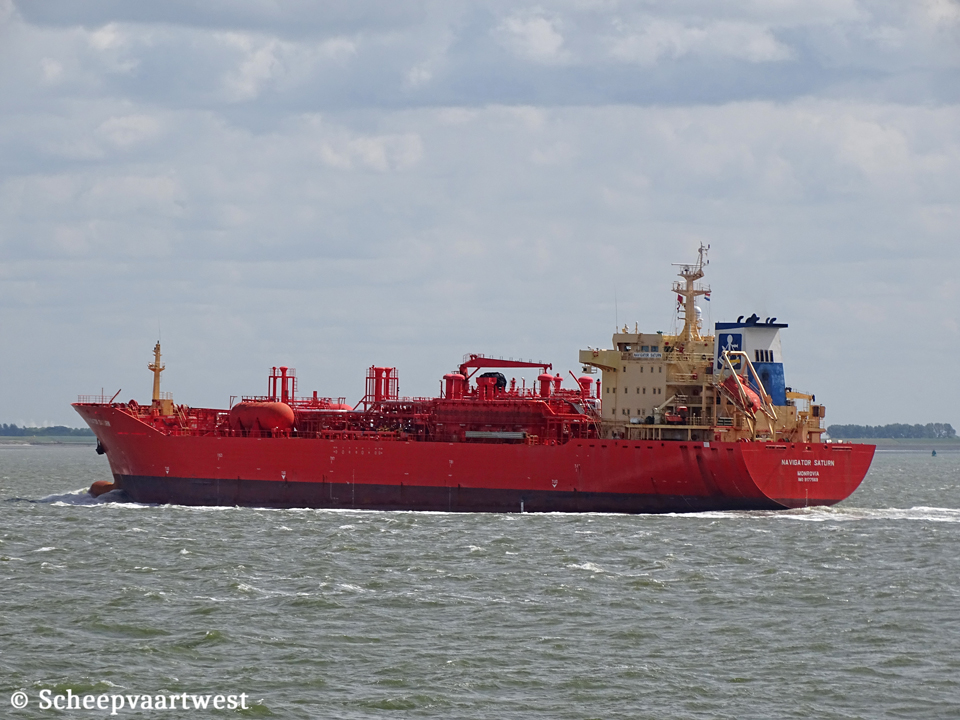

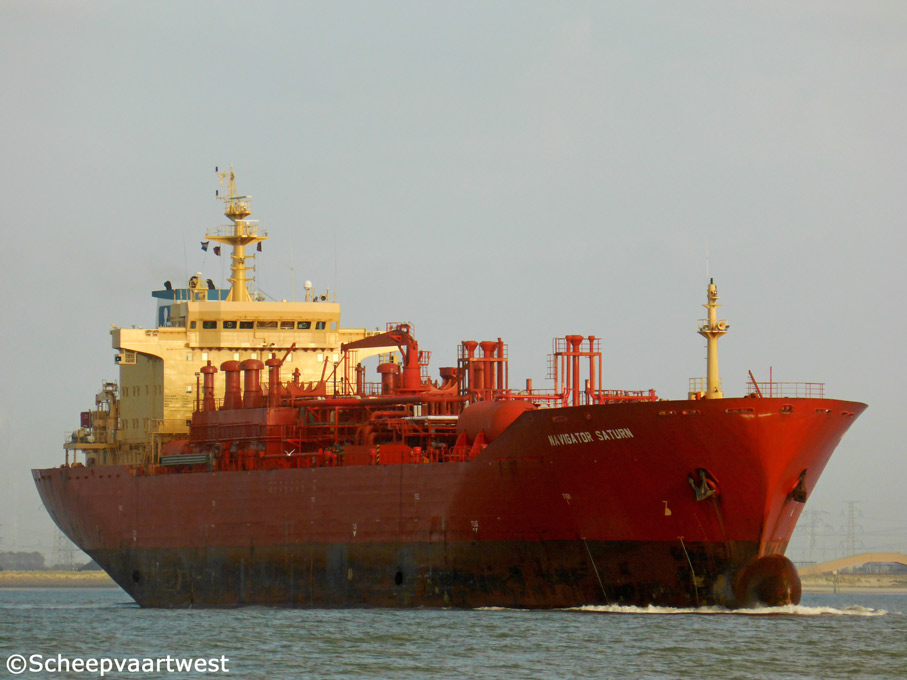

| Westerschelde 16/10/14 | Antwerpen 14/04/15 | Westerschelde 30/04/20 |
|
Name |
NAVIGATOR SATURN |
|
Type |
Liquefied gas tanker - LPG |
|
IMO-number |
9177569 |
|
Call sign |
ELYC9 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
17.840 t |
|
DWT |
Summer: 23.495 t |
|
NT |
5.352 t |
|
Length |
169,98 m overall 160,66 m between perpendiculars 162,61 m registered |
|
Breadth |
24,24 m |
|
Draught |
11,06 m |
|
Keel to mast end |
43,30 m |
|
Freeboard |
5.663 mm |
|
Depth |
16,70 m moulded |
|
Speed |
16,0 knots |
|
Built |
2000 |
|
Keel laid |
19/03/1999 |
|
Launch date |
29/07/1999 |
|
Date of completion |
18/10/2000 |
|
Builder |
Jiangnan Shipyard 2, Gaoxiong Road Shanghai 200011 People's Republic of China |
|
Yard number |
2247 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double hull Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
8 |
|
Continuous decks |
1 |
|
Main engine |
1x Sulzer 6RTA52 - 2 stroke 6 cylinder 520 x 1.800 mm combustion engine 8.520 kW / 11.560 hp at 130,0 rpm Year of manufacture: 1999 Manufacturer: Shanghai Shipyard Diesel Division 1, Jimo Road Pudong Shanghai People's Republic of China |
|
Propellers |
1x Solid propeller (keyless) - aft |
|
Boilers |
1x Steam boiler, oil fired - 8,0 bar Heating surface: 50,0 m² 1x Steam boiler, exhaust gas heated - 8,0 bar Heating surface: 300,0 m² Year of manufacture: 1999 Manufacturer: Jiangsu Hailu Boiler Co., Ltd. 17, Huancheng Nan Road Zhangjiagang People's Republic of China |
|
Electric installations |
3x Plants each 440/220 V - 1.500 kVA 1x Plant 440 V - 190 kVA |
|
Generators |
3x 8L23/30 H main diesel generatorsets each 1.500 kVA |
|
Emergency generator |
1x MAN D 2866 TE diesel generatorset 190 kVA |
|
Compressed air receivers |
2x Receivers each 4.500 litres - 30,0 bar 1x Receiver 250 litres - 30,0 bar 1x Receiver 500 litres - 10,0 bar 1x Receiver 100 litres - 10,0 bar |
|
Number of cargo tanks |
4x |
|
Cargo tank capacity |
21.650 m³ |
|
Number of deck tanks |
2 |
|
Deck tanks capacity |
Each 125 m³ |
|
Number of pumps |
8x Cargo pumps each 250 m³/h |
|
Tank capacities |
Fuel oil: 1.373 m³ MGO: 461 m³ Water ballast: 6.783,8 m³ |
|
Anchor equipment |
3x Anchors weight each 6.000 kg Chain length: 577,50 m Diameter: 62 mm |
|
Manager |
Northern Marine Management Pte. Ltd. |
|
Commercial manager |
Navigator Gas LLC The Verde, 10, Bressenden Place London, SW1E 5DH United Kingdom |
|
Registered owner |
Navigator Saturn LLC Trust Company Complex Ajeltake Road Ajeltake Island 96960 Majuro Republic of the Marshall Islands |
|
Latest data adjustment |
10 August 2022 |
