| Westerschelde 23 June 2017 |
|
Name |

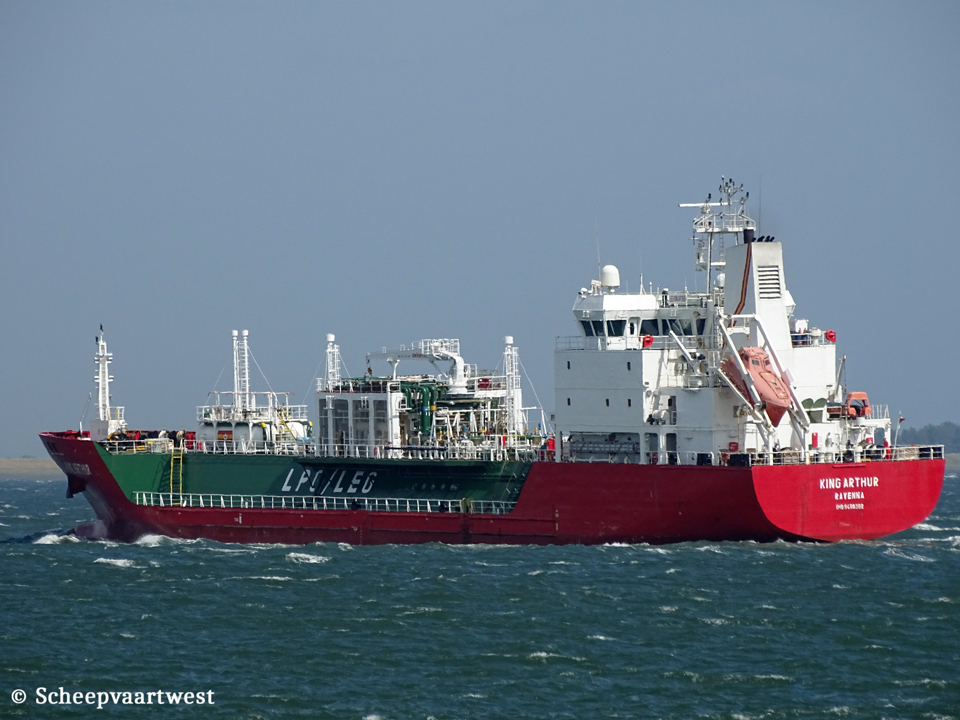

KING ARTHUR |
|
Type |
Liquefied gas tanker - LPG LEG |
|
IMO-number |
9480382 |
|
Call sign |
IBAI |
|
Flag |
Italy |
|
Port of registry |
Ravenna |
|
GT |
4.761 Suez: 5.506,53 |
|
DWT |
Summer: 5.312 t |
|
NT |
1.428 Suez: 4.086,11 |
|
Displacement |
Lightship: 3.043 t Load summer: 8.355 t |
|
Length |
104,00 m overall 97,20 m between perpendiculars |
|
Breadth |
16,40 m moulded |
|
Draught |
Summer: 7,20 m |
|
Keel mast end |
32,50 m |
|
Air draft |
Normal ballast: 27,50 m |
|
Depth |
8,40 m moulded |
|
Speed |
Service: 15,5 knots |
|
Build |
2011 |
|
Keel laid |
13/11/2008 |
|
Date of completion |
27/01/2011 |
|
Builder |
Vinashin Bach Dang Shipbuilding Industry Haiphong Vietnam |
|
Hull material |
Ordinary steel |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 8L32 - 8 cylinder combustion engine Mcr 4.000 kW at 750 rpm |
|
Propellers |
1x Controllable pitch propeller |
|
Shaft generator |
1x Marelli 1.600 ekW |
|
Generators |
4x Volvo Penta D16 diesel generatorsets each 470 ekW |
|
Emergency generator |
1x Diesel generatorset 90 kW |
|
Bow thruster |
1x 400 kW / 500 Hp, forward |
|
Number of cargo tank |
2 |
|
Cargo tank capacity |
100% Tank 1: 2.169,8 m³ Tank 2: 2.389,8 m³ Total: 4.559,6 m³ 98% Tank 1: 2.126,4 m³ Tank 2: 2.342,0 m³ Total: 4.468,4 m³ |
|
Number of deck tanks |
2 |
|
Deck tanks capacity |
19,85 m³ each |
|
Cargo compressor |
2x 215 kW at 590 rpm |
|
Number of pumps |
1x Centrifugal buster pump 400 m³/h 2x Deepwell submerged electric centrifugal pumps each 400 m³/h 2x Garbarino type MU150-315LE ballast pumps each 460 m³/h |
|
Pressure |
Max: 8,0 bar |
|
Min temp |
-104°c |
|
Max discharging rate |
700 m³/h |
|
Manifolds |
Bow to mid-point manifold: 24,20 m Stern to mid-point manifold: 23,30 m Spill tank grating to centre manifold: 1.480 mm Main deck to centre manifold: 5.280 mm |
|
Tank capacities 100% |
Fuel oil: 440,99 m³ Gas oil: 123,18 m³ Fresh water: 124,20 m³ |
|
Lifting equipment |
1x Crane midship - SWL 5,30 t 1x crane aft - SWL 2,0 t |
|
Crew size |
18 |
|
Commercial manager |
Mediterranea Di Navigazione Spa Ravenna Italy |
|
ISM manager |
Gasmare Synergy Srl Via Varese 25, 21047 Saronno Italy |
|
Registered owner |
Mediterranea Di Navigazione Spa Piazza Caduti sul Lavoro, 3 48122 Ravenna (RA) Italy |
|
Latest data adjustment |
03 January 2025 |
