| Zeebrugge 09 July 2010 |
|
Name |

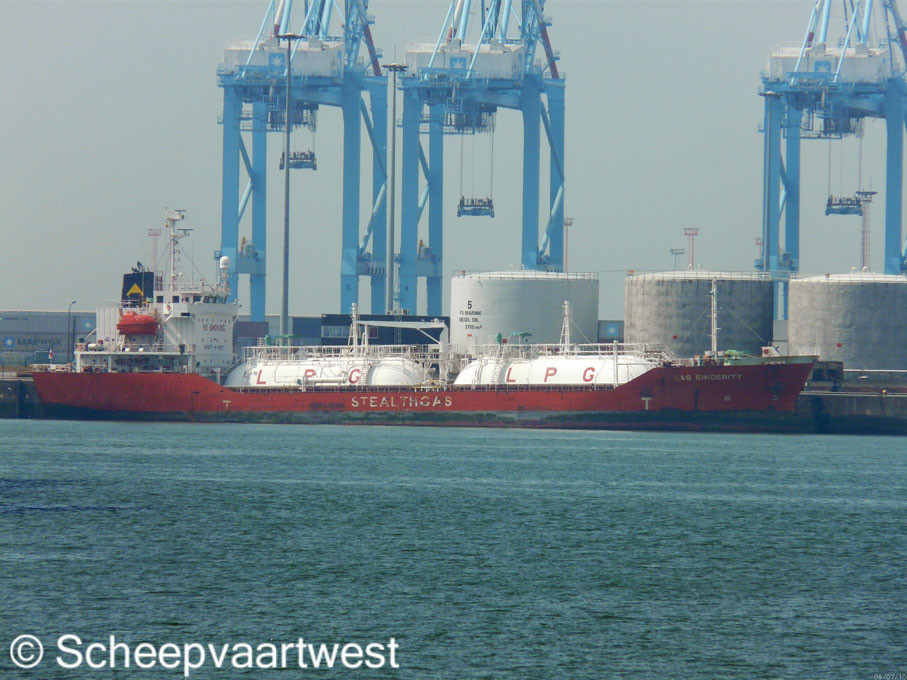

GAS SINCERITY |
|
Type |
Liquefied gas tanker |
|
IMO-number |
9227118 |
|
Call sign |
H3JE |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
3.818 t registered Suez: 4225,14 t Panama: 3.266t |
|
DWT |
Summer: 3.847 t |
|
NT |
1.146 t registered |
|
Length |
99,97 m overall 94,70 m between perpendicular |
|
Breadth |
16,83 m |
|
Draught |
Summer: 5,364 m corresponding to summer DWT: 3.847,11 t |
|
Depth |
7,50 m |
|
Speed |
13,3 knots |
|
Built |
2000 |
|
Date on service |
13.07.2000 |
|
Builder |
Watanabe Shipbuilding Co., Ltd. |
|
Hull type |
Single hull |
|
Main engine |
1x Akasaka-Mitsubishi 6UEC37LA - 6 cylinder 370 x 880 mm diesel engine - 3.090 kW / 4.200 hp at 210 rpm |
|
Boilers |
1x Water tube - 7,0 bar Evaporation: 538 kg/h 1x Exhaust Economiser - Force circulating type multitudinous tube (fine tube) Evaporation: 400 kg/h |
|
Generators |
2x Yanmar SI65L-UN 265 kW engine driving a generator 400 kVA - 445 Volt 60 Hz |
|
Emergency generator |
1x Yanmar diesel generatorset |
|
Cargo compressor |
2x Reciprocated, oil free - 37 kW at 540 rpm Stroke: 177,8 mm Max. discharge pressure: 19,62 bar Builder: Tanabe Pneumatic Machinery Co. |
|
Air compressors |
Main : 2x Vertical 2-stage - 53,0 m³/h direct drive Emergency: 1x Diesel driven - 6,30 m³/h Fuel oil purifier: 3x Self jector (SJ-15F) series |
|
Bow thruster |
Kamome TCA-60MA - 308 kW at 1.765 rpm |
|
Cargo capacity |
4.100 m³ |
|
Cargo manifold |
Distance from stern: 52,76 m Height above deck: 1,05 m for liquid manifold Distance from ship’s rail: 2,20 m Underside keel to manifold: 7,50 m |
|
Cargo pumps |
2x Fixed deep well - 300 m³/h Builder: Teikoku Machinery Works |
|
Tank capacities |
Diesel oil: 111,83 m³ Fuel oil: 589,86 m³ Fresh water: 163,16 m³ |
|
Lifting equipment |
1x Crane - SWL 3,5 t at 12,0 m |
|
Crew |
16 |
|
Operator |
Stealthgas Greece |
|
Owner |
Soleil Trust Inc. |
