Zeebrugge 21 April 2019 |
|
Name |

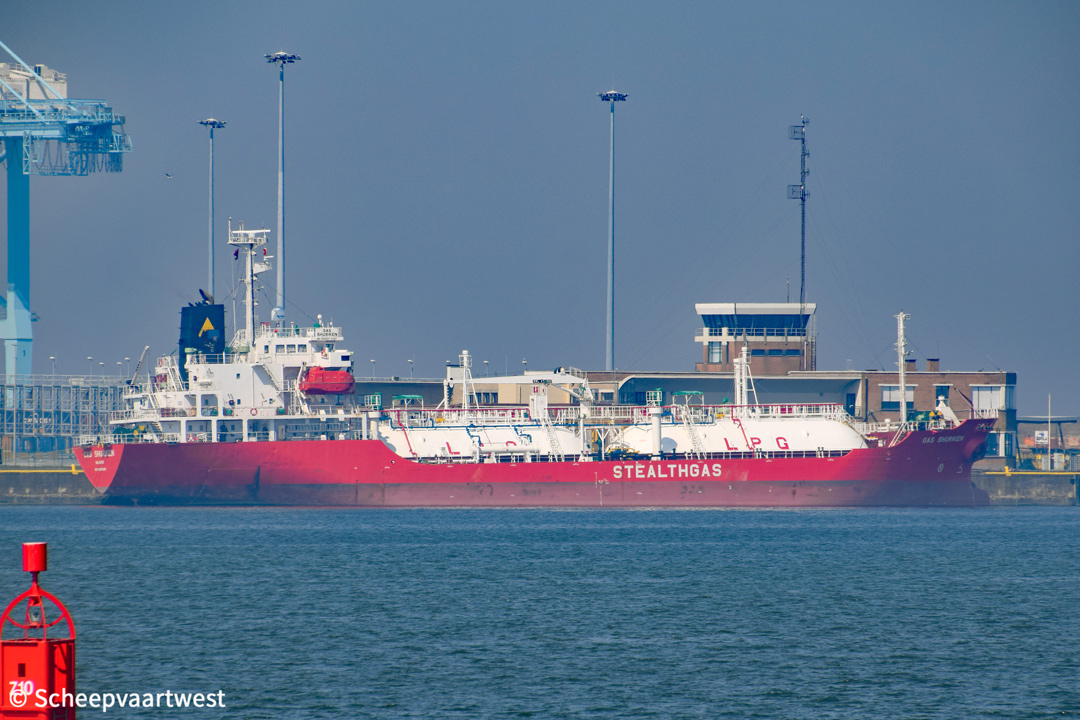

GAS SHURIKEN |
|
Type |
Liquefied gas tanker - LPG/C fully pressurised |
|
IMO-number |
9359569 |
|
Call sign |
V7QG7 |
|
Flag |
Marshall islands |
|
Port of registry |
Majuro |
|
GT |
4.309 t Suez: 4.752 t Panama: 3.680 t |
|
DWT |
5.024,66 t |
|
NT |
1.374 t Suez: 3.725,19 t Panama: 3.680 t |
|
Length |
99,90 m overall 93,50 m between perpendiculars |
|
Breadth |
17,63 m |
|
Draught |
Summer: 6,15 m |
|
Freeboard |
1.868 mm |
|
Depth |
8,00 m |
|
Speed |
Service: 13,5 knots Eco: 11,0 knots |
|
Built |
2008 |
|
Date of completion |
31/10/2008 |
|
Builder |
Kanrei Shipbuidling Co Ltd. |
|
Yard number |
405 |
|
Hull material |
Steel |
|
Hull type |
Double bottom |
|
Main engine |
1x Makita/Man-B&W 5L35MC - 5 cylinder 350 x 1.050 mm combustion engine 2.925 kW / 3.960 hp at 203 rpm Build: 2007 Manufacturer: Makita Corporation, Takamatsu - Japan |
|
Propellers |
1x Screw Propeller Solid - aft at 203 rpm |
|
Boilers |
1x Miura Z Boiler (VWH-600E) Fully automatic water tube boiler of forced recalculating type - 7,00 bar Evaporation: 538 kg/hr 1x Exhaust economiser Miura (KF-91F) Evaporation: 380 kg/hr |
|
Generators |
2x Yanmar 6NY16L-SN - 4 stroke diesel engines each 400 kW at 1.200 rpm coupled with 2 generators each 360 kW / 445 Volt 60 Hz |
|
Emergency generator |
1x Yanmar diesel NFD-150K - 10 kVA - 8 kW - 14 hp |
|
Bow thruster |
1x 325 kVA |
|
Number of cargo tanks |
2 |
|
Cargo tank capacity |
98% Tank 1: 2.258,84 m³ Tank 2: 2.459,02 m³ Total: 4.917,86 m³ 100 % Tank 1: 2.509,02 m³ tank 2: 2.509,21 m³ Total: 5.018,23 m³ |
|
Loading rate |
Tank 1: 410 m³/hr Tank 2: 730 m³/hr |
|
Cargo pumps |
2x Deep well type of vertical centrifugal multistage design Pump 1: 300 m³/hr Pump 2: 250 m³/hr Manufacturer: Niigata Worthington Co.,Ltd. |
|
Manifolds |
Bow to manifold no.1 : 45,15 m Bow to manifold no.2 : 45,15 m Bow to mid-point manifold : 45,15 m Stern to mid-point manifold : 54,75 m Main deck to centre of manifold : 1,00 m Manifold to ship's rail : 2,50 m Cargo manifold to vapour manifold : 1,50 m Distance from ship side : 2,50 m |
|
Tank capacities |
HFO: 458 t Diesel oil: 100 t Fresh water: 212,38 m³ Sludge: 25,98 m³ Bildge: 13,10 m³ |
|
Lifting equipment |
1x Crane - SWL 4,0 t Working radius: 15,00 m |
|
Crew |
16 |
|
Manager |
Stealth Maritime Corporation S.A. |
|
Operator |
StealthGas |
|
Registered owner |
Financial Power Inc. |
|
Latest data adjustment |
26 April 2019 |
