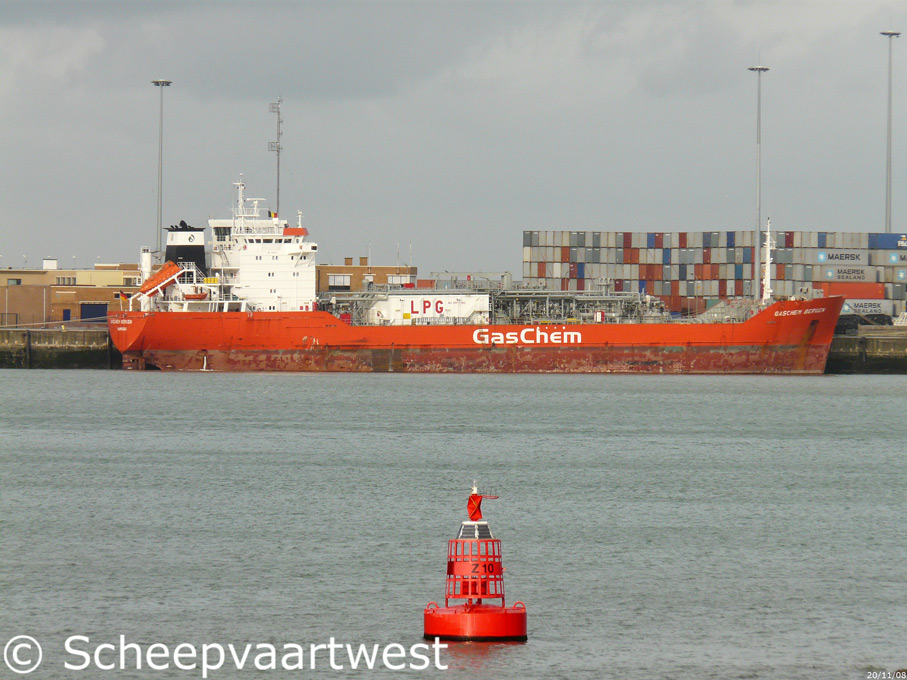

| Zeebrugge 20 November 2008 |
|
Name |
GASCHEM BERGEN |
|
Previous names |
1991 - 1999 Igloo Bergen |
|
Type |
Liquefied gas tanker |
|
IMO-number |
8919752 |
|
Call sign |
DIBR |
|
Flag |
Germany |
|
Port of registry |
Hamburg |
|
GT |
7.082 t |
|
DWT |
9.490 t |
|
NT |
2.137 t |
|
Length |
126,24 m overall |
|
Breadth |
17,80 m overall |
|
Draught |
Summer: 8,60 m |
|
Bow to bridge |
98,24 m |
|
Forecastle |
15,21 m |
|
Poop |
27,60 m |
|
Keel to masthead |
40,00 m |
|
Freeboard |
3.300 mm |
|
Depth |
11,90 m |
|
Speed |
16,25 knots |
|
Built |
1991 |
|
Keel laid |
10.04.1990 |
|
Launch Date |
26.10.1991 |
|
Date of completion |
12.1991 |
|
First movement |
15.12.1991 |
|
Builder |
Brand Schiffswerft GmbH & Co. KG |
|
Yard number |
235 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double hull |
|
Watertight bulkheads |
6 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN 6 L 52/55 B - 4 stroke single acting 6 cylinder 520 x 550 mm diesel engine, - 5.400 kW |
|
Number of screws |
1x Controllable pitch propeller - aft |
|
Boilers |
1x Thermal oil heater, oil fired - 10,0 bar |
|
Bow thruster |
1x Fixed pitch propeller Lips - 450 kW forward |
|
Electric installations |
1x 450/220 V - 2.745 kVA |
|
Shaft generator |
1x 1.500 kVA |
|
Generators |
3x Main diesel generatorsets each 915 kVA |
|
Emergency generator |
1x Diesel generatorset 105 kVA |
|
Compressed air receivers |
1x Receiver 10 litres - 20,0 bar |
|
Cargo tanks |
3 |
|
Cargo capacity |
8.239 m³ |
|
Largest cargo tank |
2.940 m³ |
|
Tank capacities |
Ballast: 2.776 m³ |
|
Min. temp |
-104°C |
|
Anchor equipment |
3x Anchors weight each 3.780 kg |
|
Crew |
16 |
|
Manager |
NSB Niederelbe Schiffahrts GmbH & Co. KG |
|
Shipping company |
GasChem Services GmbH & Co. KG |
|
Operated in the |
Gaschem-Gasmare pool |
|
Owner |
KG GS Gas Shipping GmbH & Co. |
