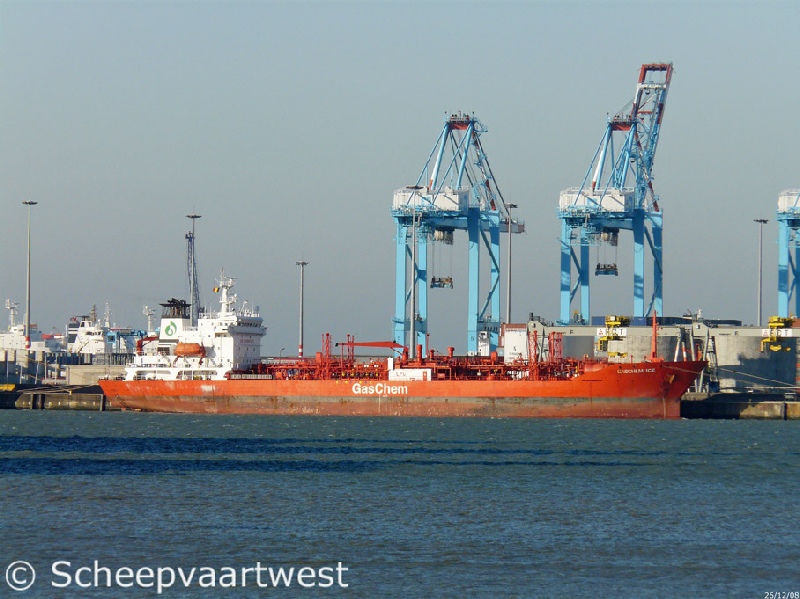

| Zeebrugge 26 December 2008 |
|
Name |
GASCHEM ICE |
|
Previous names |
1996 - 2005 Eurogas Quinta 2005 Northern Ice |
|
Type |
Liquefied Gas Tanker LNG Tanker |
|
IMO-number |
8908569 |
|
Call sign |
A8IE2 |
|
Flag |
Liberia |
|
Previous flag |
1996 Italy |
|
Port of registry |
Monrovia |
|
GT |
7.955 t |
|
DWT |
12.217 t |
|
NT |
3.144 t |
|
Length |
131,35 m overall 121,17 m between perpendiculars 131,40 m registered |
|
Breadth |
20,00 m overall |
|
Draught |
Summer: 9,40 m |
|
Bow to bridge |
100,35 m |
|
Forecastle |
11,69 m |
|
Keel to masthead |
33,00 m |
|
Freeboard |
3.000 mm |
|
Depth |
12,41 m |
|
Speed |
14,0 knots |
|
Built |
1996 |
|
Keel laid |
27.06.1989 |
|
Launch date |
29.08.1992 |
|
Date of completion |
01.03.1996 |
|
Builder |
Cantieri Navali Benetti Gecan S.p.A. |
|
Yard number |
135 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Sigle hull Double bottom |
|
Watertight bulkheads |
10 |
|
Continuous decks |
1 |
|
Main engine |
1x Hyundai 5 L 50 MC - 2 Stroke single acting 5 cylinder 500 x 1.800 mm diesel engine - 5.590 kW Built: 1991 Builder: Hyundai Heavy Industries Co. Ltd. Ulsan - South Korea |
|
Number of screws |
1x Solid propeller - aft |
|
Boilers |
1x Steam boiler, exhaust gas heated - 11,0 bar Year of Manufacture: 1992 Manufacturer: Sunrod (Qingdao) Boiler Co., Ltd. |
|
Electric installations |
1x 440 V - 3.720 kVA 1x 440 V - 200 kVA |
|
Main generators |
3 x Main diesel generatorsets each 1.240 kVA |
|
Emergency generator |
1x Diesel generatorset 200 kVA |
|
Compressed air Receivers |
2x Receivers each 3.000 litres - 30,0 bar 1x Receiver 2.000 litres - 30,0 bar 1x Receiver 20 lighters - 10,0 bar |
|
Cargo tanks |
4 |
|
Liquid cargo |
10.468 m³ |
|
Tank capacities |
Ballast: 3.265 m³ Bunker: 838 t |
|
Anchor equipment |
3x Anchors weight each 4.050 kg Chain length: 522,50 m |
|
Crew |
15 |
|
Manager |
NSB Niederelbe Schiffahrts GmbH & Co. KG |
|
Operator |
GasChem Services GmbH & Co. KG |
|
Owner |
LPG Shipping Ltd. |
