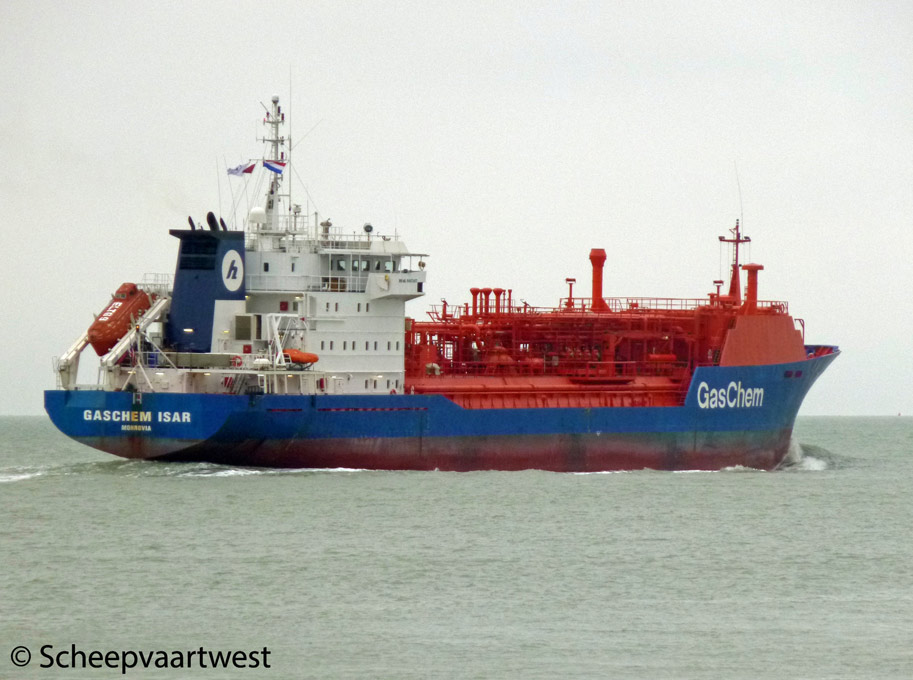

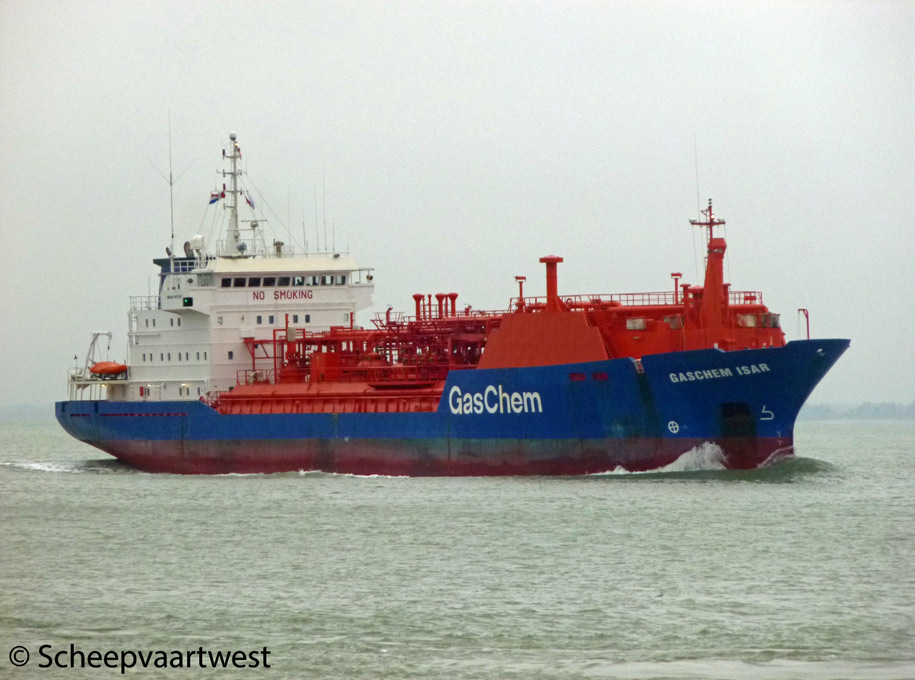

| Westerschelde 21 October 2012 |
 |
| Westerschelde 21/10/12 |
|
Name |
GASCHEM ISAR |
|
Previous names |
1991 - 17.06.2005 Isargas |
|
Type |
Liquefied gas tanker - Ethylene / LPG / VCM / Ammonia |
|
IMO-number |
9007087 |
|
Call sign |
ELTG9 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
4.200 t |
|
DWT |
Summer: 5.687 t |
|
NT |
1.260 t |
|
Lightweight |
2.491 t |
|
Length |
99,95 m overall 92,67 m registered |
|
Breadth |
15,90 m registered |
|
Draught |
7,20 m |
|
Distance keel - top antenna |
33,80 m |
|
Forecastle |
9,22 m |
|
Freeboard |
1.810 mm |
|
Depth |
9,00 m moulded |
|
Speed |
14,0 knots |
|
Built |
1991 |
|
Keel laid |
27.09.1990 |
|
Launch date |
10.04.1991 |
|
Date of completion |
07.1991 |
|
Builder |
Scheepswerf Pattje B.V. |
|
Yard number |
379 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
5 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 9 M 453 C - 4 stroke 9 cylinder 320 x 120 mm diesel engine - 3.000 kW at 600 rpm Year of manufacture: 1991 Manufacturer: Krupp Mak Maschinenbau GmbH |
|
Propellers |
1x Controllable pitch propeller - aft at 203 rpm |
|
Boilers |
1x Thermal oil heater, oil fired - 10,0 bar Heating surface: 26,5 m² 1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 96,0 m² Year of manufacture: 1991 Manufacturer: Konus-Kessel Ges. f. Wärmetechnik mbH |
|
Electric installations |
2x Plants each 440/220 V - 894 kVA 1x Plant 440 V - 1.500 kVA 1x Plant 440 V - 81 kVA |
|
Shaft generator |
1x 1.500 KVA |
|
Generators |
2x Caterpillar 3508 DITA main diesel generatorsets each 760 kW / 894 kVA at 1.800 rpm |
|
Emergency generator |
1x Caterpillar 3304 DINA diesel generatorset 74 kW / 81 kVA |
|
Compressed air receivers |
2x Receivers each 250 litres - 30,0 bar 1x Receiver 1.000 litres - 8,0 bar |
|
Bow thruster |
1x Transverse thruster JASTRAM - 220 kW, forward |
|
Number of cargo tanks |
2 |
|
Liquid cargo |
Volume 100% Tank 1: 1.314,59 m³ Tank 2P: 1.458,43 m³ Tank 2S: 1.460,61 m³ Total: 4.233,63 m³ Volume 98% Tank 1: 1.288,30 m³ Tank 2P: 1.429,26 m³ Tank 2S: 1.431,40 m³ Total: 4.148,96 m³ |
|
Pumps |
3x Deepwell SvaenhoNH 125/100-4-K+ij pumps each 150 m³/h with electromotor 90 Kw at 1.785 rpm 1x Booster SvanehojNIP 100 B-XLR pump 260 m³/h with electromotor 135 kW at 3.580 rpm |
|
Tank capacities |
Fuel oil: 725,2 m³ Gas oil: 110,7 m³ Fresh water: 55 m³ Water ballast: 1.404 m³ |
|
Max tank pressure |
4,7 bar |
|
Min design temperature |
-104°C |
|
Cargo compressor |
3x Sulzer 2 K 105 - 2 F - Oil free |
|
Anchor equipment |
3x Anchors weight each 2.640 kg Chain length: 467,50 m |
|
Lifting equipment |
2x Cranes NMF - SWL 1.500 kg each |
|
Crew size |
16 |
|
Manager |
Hartmann Schiffahrts GmbH & Co. KG |
|
Operator |
GasChem Services GmbH & Co. KG |
|
Registered owner |
Conti Colombo Tankschiffahrtsgesellschaft mbH & Co. KG MT "ISARGAS" |
|
Last update |
05.02.2013 |
