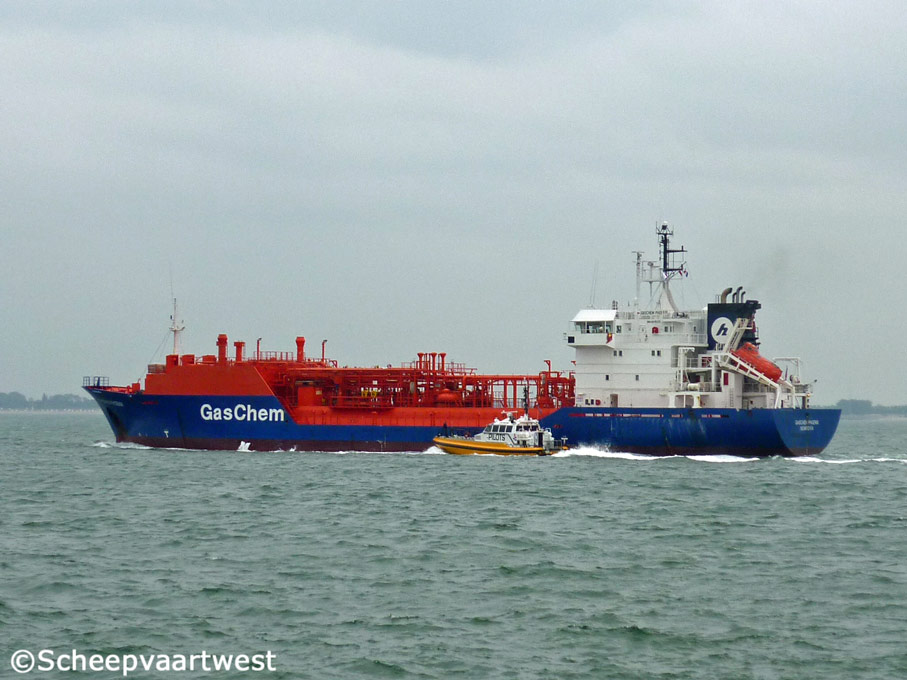

| Westerschelde 10 September 2012 |
 |
| Westerschelde 10/09/12 |
|
Name |
GASCHEM PHOENIX |
|
Previous names |
1993 - 2005 Phoenix Gas |
|
Type |
Liquefied Gas Tanker |
|
IMO-number |
9015010 |
|
Official number |
90235 |
|
Call sign |
ELUO6 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
4.484 t |
|
DWT |
Summer: 5.560 t |
|
NT |
1.345 t |
|
Lightweight |
2.616 t |
|
Length |
99,89 m overall 93,50 m registered |
|
Breadth |
16,20 m registered |
|
Draught |
7,202 m |
|
Air draft |
Distance keel - top antenna: 33,80 m Distance keel - antenna folded backwards: 20,50 m |
|
Forecastle |
16,80 m |
|
Quarterdeck |
22,20 m |
|
Freeboard |
1.810 mm |
|
Depth |
9,00 m moulded |
|
Speed |
14,0 knots |
|
Built |
1993 |
|
Keel laid |
24.03.1992 |
|
Launch date |
26.09.1992 |
|
Date of completion |
28.06.1993 |
|
Builder |
Jiangnan Shipyard |
|
Yard number |
2196 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
5 |
|
Continuous decks |
1 |
|
Main engine |
1x Krupp MaK 8 M 453 C - 4 stroke 8 cylinder 320 x 420 mm diesel engine - 2.940 kW at 600,0 rpm Year of manufacture: 1991 Manufacturer: Krupp Mak Maschinenbau GmbH |
|
Propellers |
1x Controllable pitch propeller - aft at 190,0 rpm |
|
Boilers |
1x Thermal oil heater, oil fired - 10,0 bar Heating surface: 19,6 m² Year of manufacture: 1991 Manufacturer: Apparatebau Wiesloch GmbH 1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 100,0 m² Year of manufacture: 1991 Manufacturer: Feenstra's Techn. Industrie Dalfsen B.V. |
|
Electric installation |
2x Plants each 440/220 V - 825 kVA 1x Plant 440 V - 1.125 kVA 1x Plant 440 V - 75 kVA |
|
Shaft generator |
1x 1.125 kVA |
|
Generators |
2x Caterpillar 3508 DITA diesel engine with generators each 825 kVA / 660 kW at 1.800 rpm |
|
Emergency generator |
1x Caterpillar 3404 DINA diesel engine with generator 75 kVA at 1.800 rpm |
|
Compressed air receivers |
1x Receiver 10 litres - 32,0 bar 3x Receivers each 500 litres - 30,0 bar |
|
Bow thruster |
1x Fixed pitch propeller Schottel type STT-330 LK-T - 370 kW, forward |
|
Number of tanks |
2 Tank 1: 1.317 m³ (100%) - 1.291 (98%) Tank 2: 2.923 m³ (100%) - 2.865 m³ (98%) Total: 4.240,5 (100%) - 4.156 (98%) |
|
Max. tank pressure |
4,7 bar |
|
Min. design temperature |
-104°C |
|
Pumps |
3x Svanehoj deepwell pumps type NH 125/100 each 150 m³/h speed 1.785 rpm driven by electric motor 90 kW 1x Svanehoj booster pump type NIP 100B-XLR 260 m³/h speed 3.580 rpm driven by electric motor 135 kW |
|
Tank capacities |
Fuel oil: 738,0 m³ (98%) MDO: 104,2 m³ (98%) MGO: 25,6 m³ (98%) Fresh water: 52,4 m³ Water ballast: 1.397,1 m³ |
|
Anchor equipment |
3x Anchors weight each 2.640 kg Chain length: 467,50 m |
|
Lifting equipment |
2x Cranes type ACTA A/S NSC8 - SWL 1,5 t each |
|
Crew size |
16 |
|
Manager |
Hartmann Schiffahrts GmbH & Co. KG |
|
Operator |
Gaschem Services GmbH & Co., KG (Hartmann Group) |
|
Registered owner |
Cryotrans-Gastanker GmbH & Co. MT "PHOENIX GAS" KG |
