| Vlissingen 05 July 2020 |
 |
 |
 |
 |
 |
||||

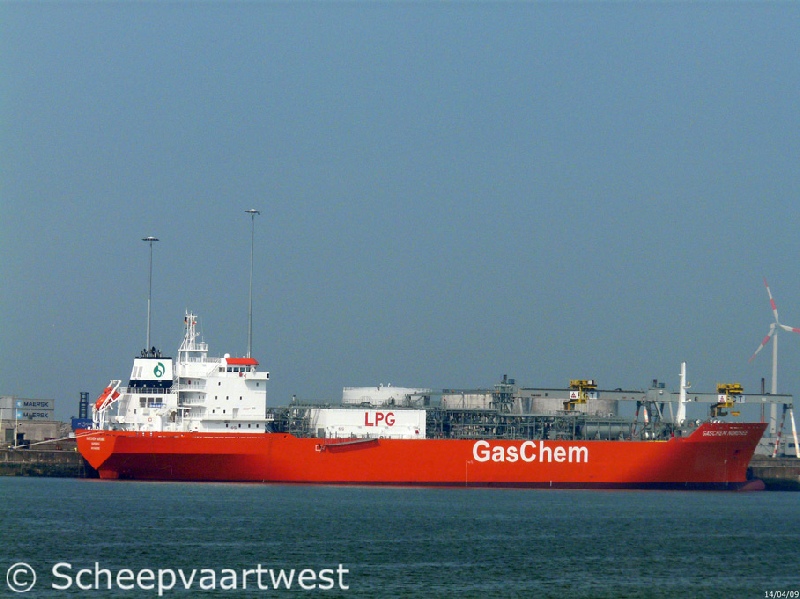

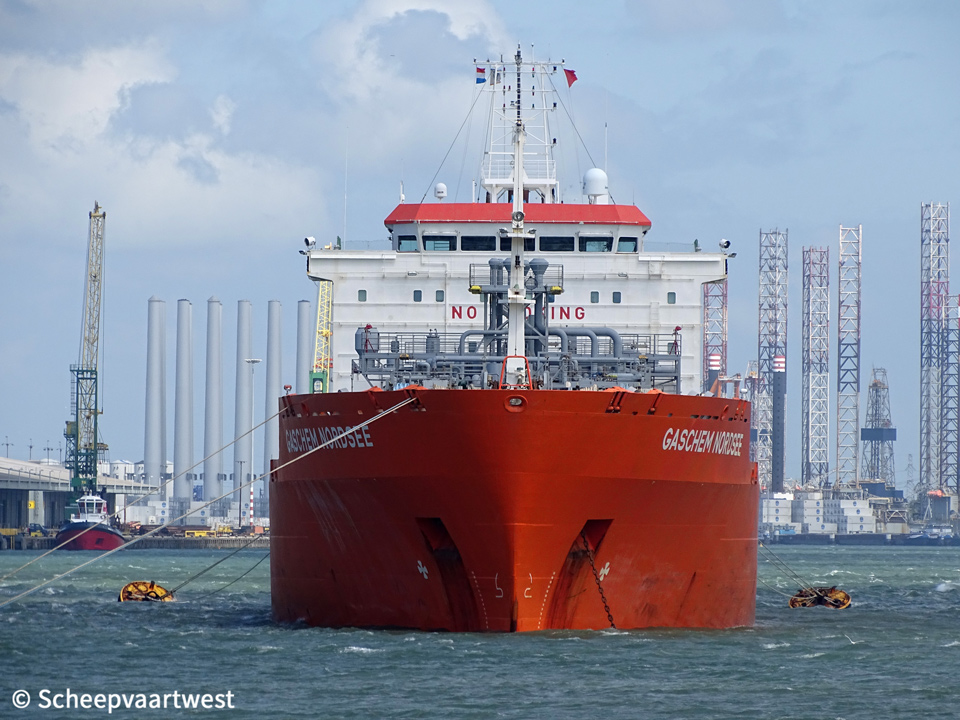

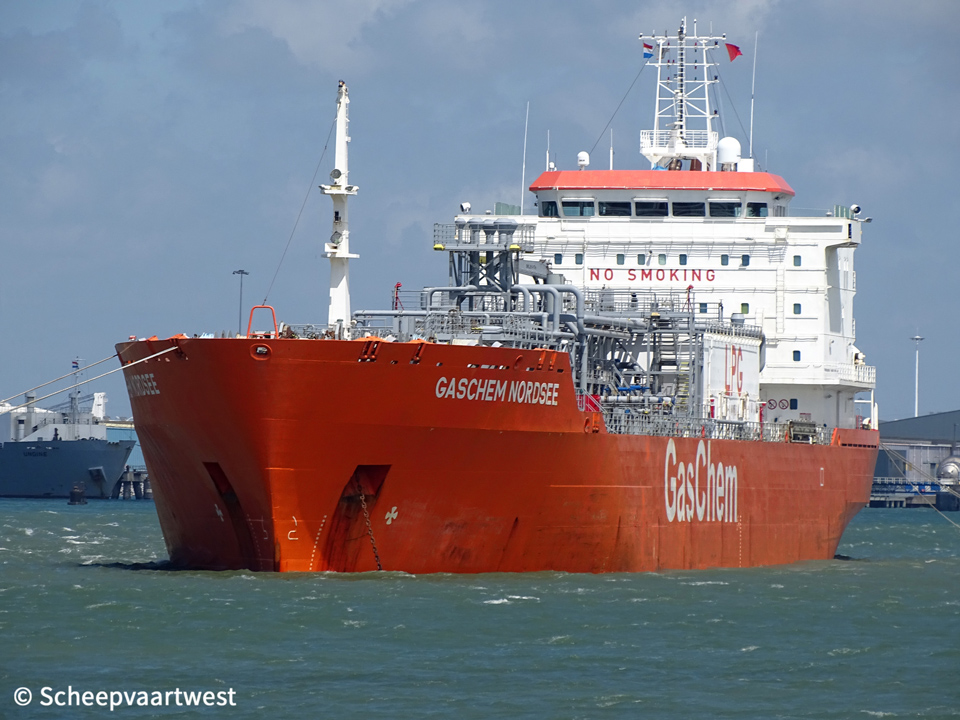

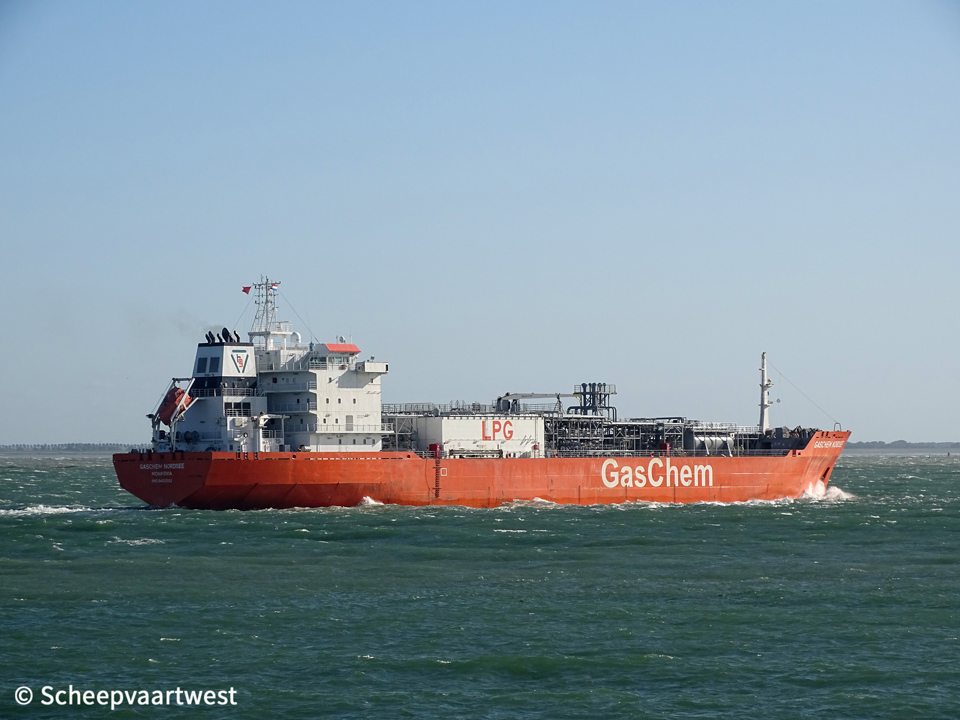

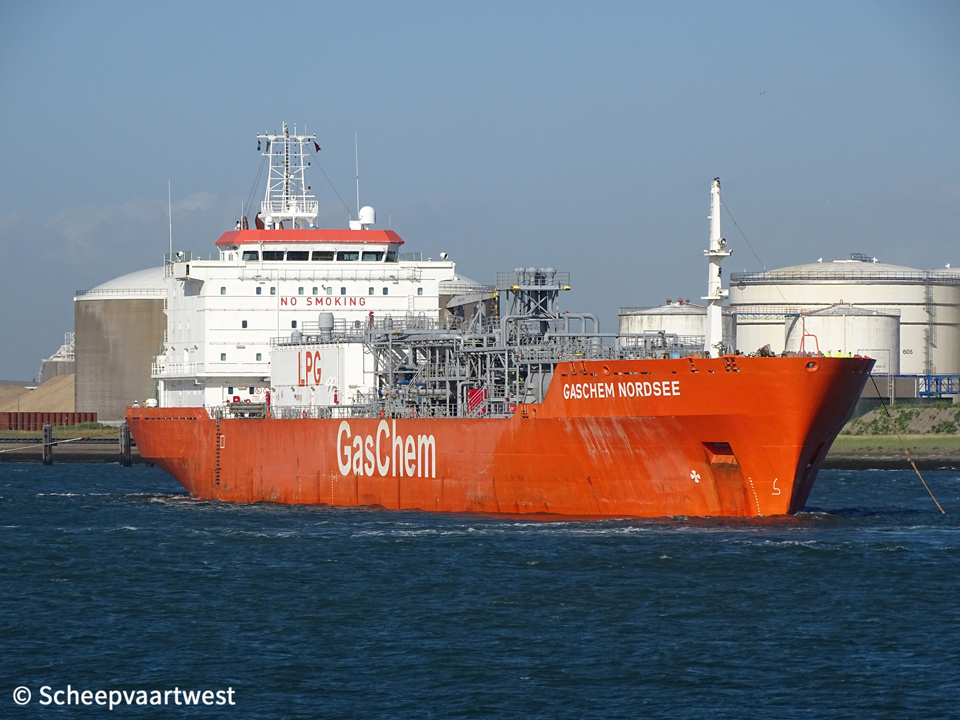

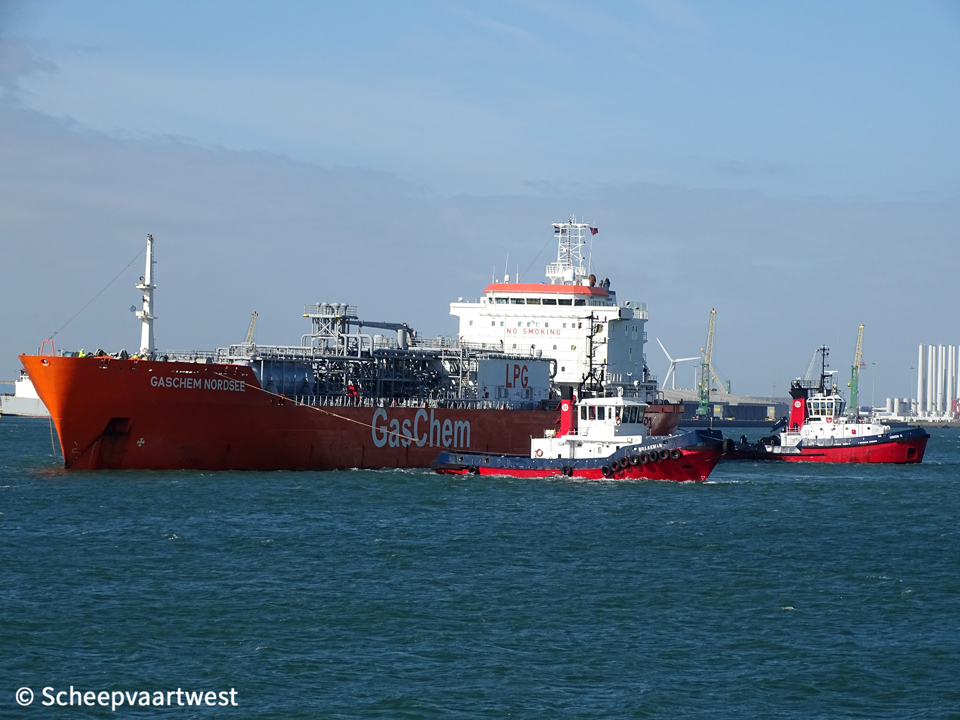

| Westerschelde 05/07/20 | Westerschelde 05/07/20 | Westerschelde 05/07/20 | Westerschelde 05/07/20 | Zeebrugge 14/04/09 |
|
Name |
GASCHEM NORDSEE |
|
Type |
Liquefied gas tanker - LPG tanker |
|
IMO-number |
9402562 |
|
Call sign |
D5CI4 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flag |
2009 - 2012 Germany, Hamburg - Call sign: DFZP2 |
|
GT |
13.878 t |
|
DWT |
Summer: 18.846,36 t |
|
NT |
4.400 t |
|
Length |
155,64 m overall 147,42 m between perpendiculars |
|
Breadth |
22,73 m extreme |
|
Draught |
Summer: 10,58 m |
|
Freeboard |
4.200 mm |
|
Depth |
14,95 m moulded |
|
Speed |
Max: 17,7 knots |
|
Built |
2009 |
|
Keel laid |
20/11/2007 |
|
Launch date |
20/02/2009 |
|
Date of completed |
31/03/2009 |
|
Delivery date |
02/04/2009 |
|
Builder |
Meyer Werft GmbH Papenburg & Warnemünde Germany |
|
Yard number |
683 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Single hull - double bottom (e.g. interrupted in way of machinery space) |
|
Waterthigt bulkheads |
4 |
|
Continous decks |
1 |
|
Main engine |
1x Wärtsilä 6RT-flex50 - 2 stroke 6 cylinder combustion engine 9.720 kW at 124,0 rpm Builder: Wärtsilä Switzerland Ltd. |
|
Propeller |
1x Controllable pitch propeller |
|
Boilers |
1x Thermal oil heater, exhaust heated - 10,0 bar 1x Thermal oil heater, oil fired - 10,0 bar Builder: GESAB Hoch-Temperatur Industrieanlagen GmbH - Germany |
|
Electric Installation |
3x Plant 450 V - 1.219 kVA 1x Plant 450 V - 240 kVA |
|
Generators |
3x Wärtsilä 6L20 main diesel generatorsets each 975 kW / 1.219 kVA Builder: Wärtsilä Finland Oy |
|
Emergency generator |
1x MAN D2866 LXE20 diesel generatorset 240 kVA Builder: MAN Nutzfahrzeuge AG, GE Motoren-Nürnberg - Germany |
|
Compressed air receivers |
2x Receivers each 1.800 litres - 30,0 bar 1x Receiver 500 litres - 30,0 bar 1x Receiver 2000 litres - 10,0 bar |
|
Bow thruster |
1x 900 kW |
|
Number of cargo tanks |
6 |
|
Cargo capacity |
100% / 98% Tank 1: 5.514,28 m³ / 5.403,99 m³ Tank 2: 5.612,45 m³ / 5.500,20 m³ Tank 3: 6.007,13 m³ / 5.886,99 m³ Deck tank 1: 126,83 m³ / 124,29 m³ Deck tank 2: 62,02 m³ / 60,78 m³ Total: 17.322,71 m³ / 16.976,26 m³ |
|
Deck tank capacity |
189,6 m³ |
|
Pumps |
6x Cargo Deepwell pumps each 200 m³/h 1x Booster pump 300 m³/h |
|
Anchor equipment |
3x Anchors weight each 5.610 kg Length: 577,50 m Diameter: 58 mm |
|
Crew |
20 |
|
Manager |
HarpainGas GmbH & Co. KG ABC-Strasse 15 20254 Hamburg Germany |
|
Operator |
Gaschem Services GmbH & Co. KG Am Sandtorkai 41 20457 Hamburg Germany |
|
Registered owner |
Schiffahrtsgesellschaft "Nordsee" mbH & Co. KG Germany |
|
Latest data adjustment |
08 September 2020 |
