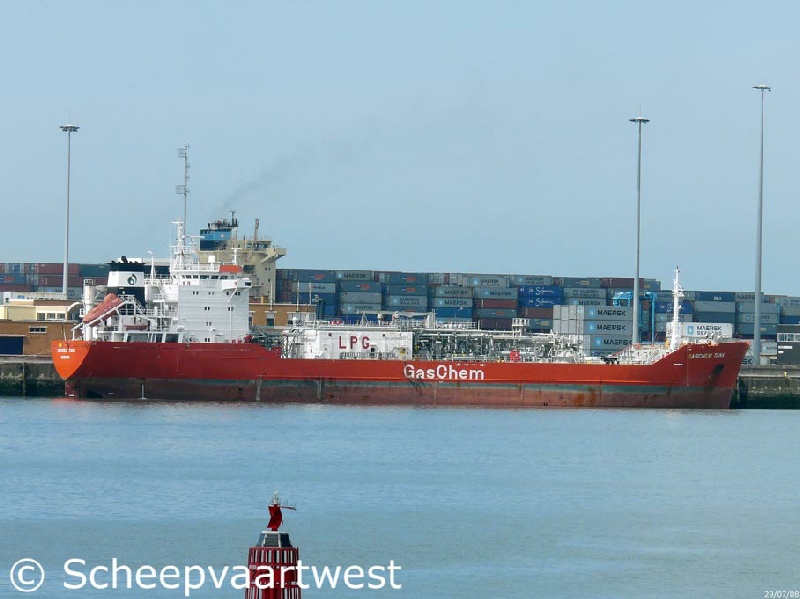

| Zeebrugge 29 July 2008 |
|
Name |
GASCHEM TANA |
|
Previous names |
Northern Bliss 1992 - 1999 Igloo Tana 1999 - 2004 Tana 2004 Gaschem Tana |
|
Type |
Liquefied gas tanker - LPG tanker |
|
IMO-number |
9010797 |
|
Call sign |
DNBT |
|
Flag |
Germany |
|
Port of registry |
Hamburg |
|
GT |
7.083 t |
|
DWT |
Summer: 9.436 t |
|
NT |
2.137 t |
|
Freeboard |
3.315 mm |
|
Length |
126,26 m overall 122,02 m between perpendiculars |
|
Breadth |
17,80 m moulded |
|
Draught |
Summer: 8,62 m |
|
Forecastle |
15,21 m |
|
Poop |
27,60 m |
|
Bow to bridge |
98,24 m |
|
Keel to masthead |
40,00 m |
|
Depth |
11,90 m moulded |
|
Speed |
16,0 knots |
|
Built |
1992 |
|
Keel laid |
21.08.1991 |
|
Launch date |
29.08.1992 |
|
Date of completion |
03.12.1992 |
|
Builder |
Brand Werft GmbH & Co. KG |
|
Yard number |
236 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Single hull |
|
Watertight bulkheads |
6 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN 6 L 52/55 B - 4 stroke single acting 6 cylinder 520 x 550 mm diesel engine - 5.400 kW at 450 rpm Year of manufacture: 1992 Manufacturer: MAN Diesel SE |
|
Propeller |
1x Controllable pitch propeller - aft at 130 rpm |
|
Boilers |
1x Thermal oil heater, oil fired - 10,0 bar Heating surface: 39,0 m² 1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 128,0 m² Year of manufacture: 1992 Manufacturer: Apparatebau Wiesloch GmbH |
|
Electric installations |
1x Plant 450/220 V - 2.745 kVA 1x Plant 450 V - 1.500 kVA 1x Plant 450 V - 105 kVA |
|
Shaft generator |
1x 1.500 kVA |
|
Generators |
3x Main diesel generatorsets each 915 kVA |
|
Emergency generator |
1x Diesel generatorset 105 kVA |
|
Compressed air receivers |
2x Receivers each 710 litres - 30,0 bar 1x Receiver 2.000 litres - 11,0 bar 1x Receiver 1.500 litres - 10,0 bar |
|
Bow thruster |
1x Fixed pitch propeller LIPS - 450 kW, forward |
|
Number of cargo tanks |
3 |
|
Cargo capacity |
8.239 m³ |
|
Largest cargo tank |
2.937 m³ |
|
Tank capacities |
Ballast: 2.773 m³ Fuel oil: 771 m³ |
|
Lifting equipment |
1x Crane - SWL 5,0 t |
|
Anchor equipment |
3x Anchors weight each 3.780 kg Chain length: 522,50 m |
|
Manager |
NSB Niederelbe Schiffahrts GmbH & Co. KG |
|
Operator |
GasChem Services GmbH & Co. KG |
|
Owner |
Partenreederei MS "NORTHERN BLISS" |
