Zeebrugge 18 August 2015 |
|
Name |

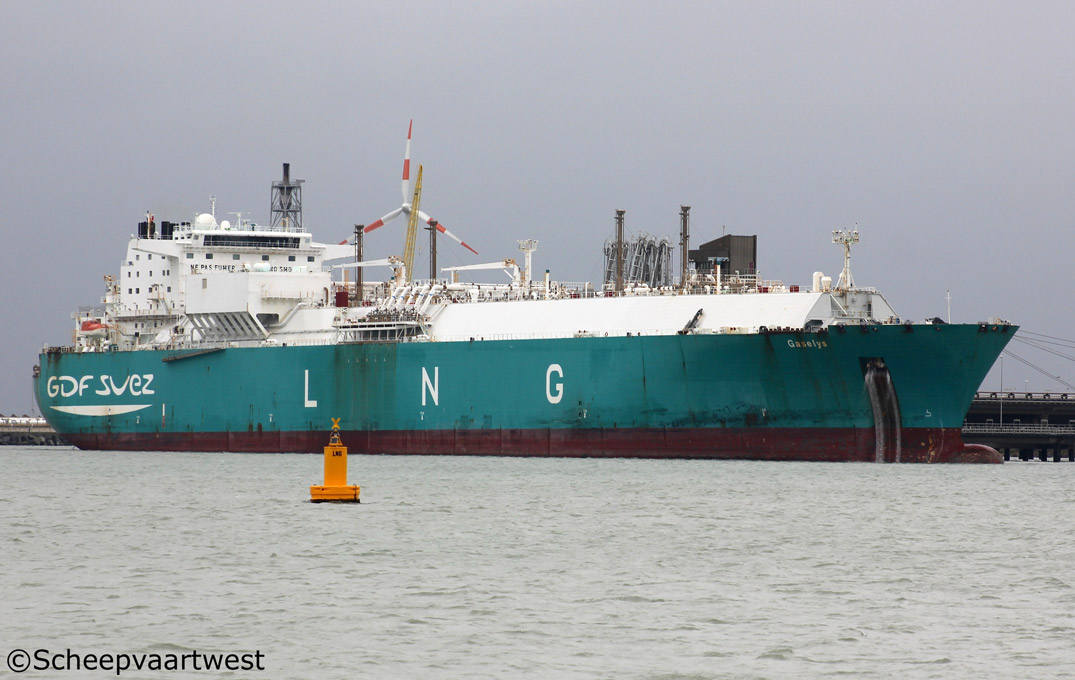

GASELYS |
|
Type |
Liquefied gas tanker - LNG |
|
Transport type |
Isothermal |
|
IMO-number |
9320075 |
|
Call sign |
FMLU |
|
Flag |
France |
|
Port of registry |
Marseille |
|
GT |
97.741 t |
|
DWT |
Summer: 86.389 t |
|
NT |
29.322 t |
|
Length |
289,60 m overall 274,10 m between perpendiculars |
|
Breadth |
43,35 m |
|
Draught |
12,60 m |
|
Freeboard |
1.806 mm |
|
Depth |
26,25 m |
|
Speed |
20,45 knots |
|
Built |
2007 |
|
Date of completion |
05.03.2007 |
|
Builder |
Chantiers De L'Atlantique (STX France SA) |
|
Yard number |
P32 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartments |
9 |
|
Internal combustion engine |
4x Diesel engines total 28.000 kW / 38.044 hp at 514 rpm |
|
Electrical propulsion engine |
2x 14.000 kW at 720 rpm Built: 2005 Builder: ABB Oy Electrical Machines, Helsinki - Finland |
|
Propellers |
1x Screw propeller solid |
|
Main engine driven generators |
3x Generators 12.223 KVA / 9.778 kW 1x Generator 6.875 kVA / 5.500 kW |
|
Generators |
1x Diesel generatorset 700 kVA - 560 kW - 855 hp |
|
Number of tanks |
4 |
|
Total capacity of tanks |
154.472,76 m³ |
|
Cargo handling |
8x Pumps - 1.750 m³/h |
|
Min. temp |
-163°C |
|
Manager |
Gazocean |
|
Operator |
GDF Suez |
|
Registered owner |
NYK Armateur S.A.A. |
|
Latest data adjustment |
23 December 2015 |
