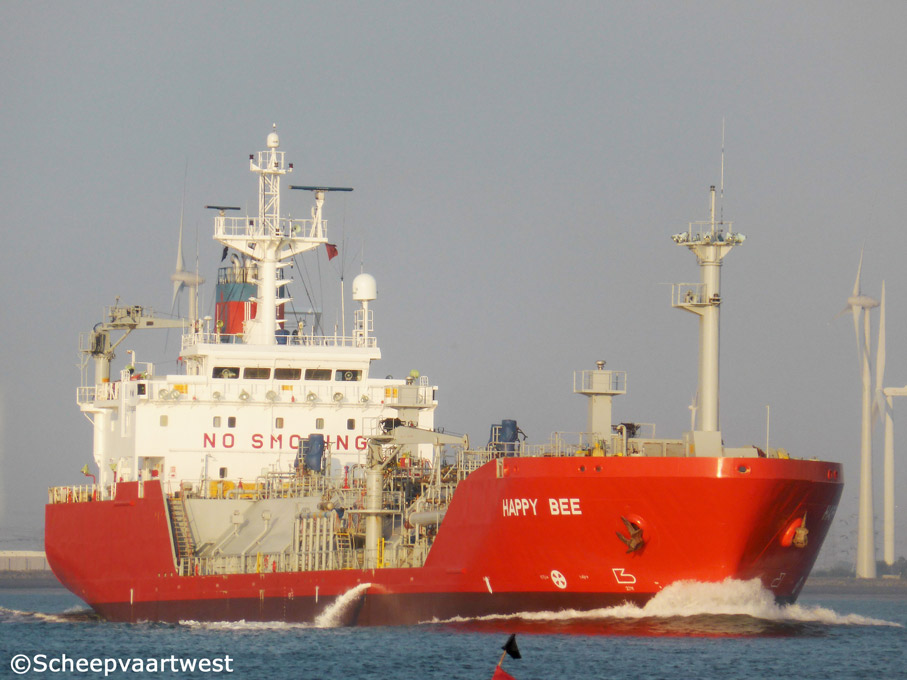

Westerschelde 22 July 2014 |
 |

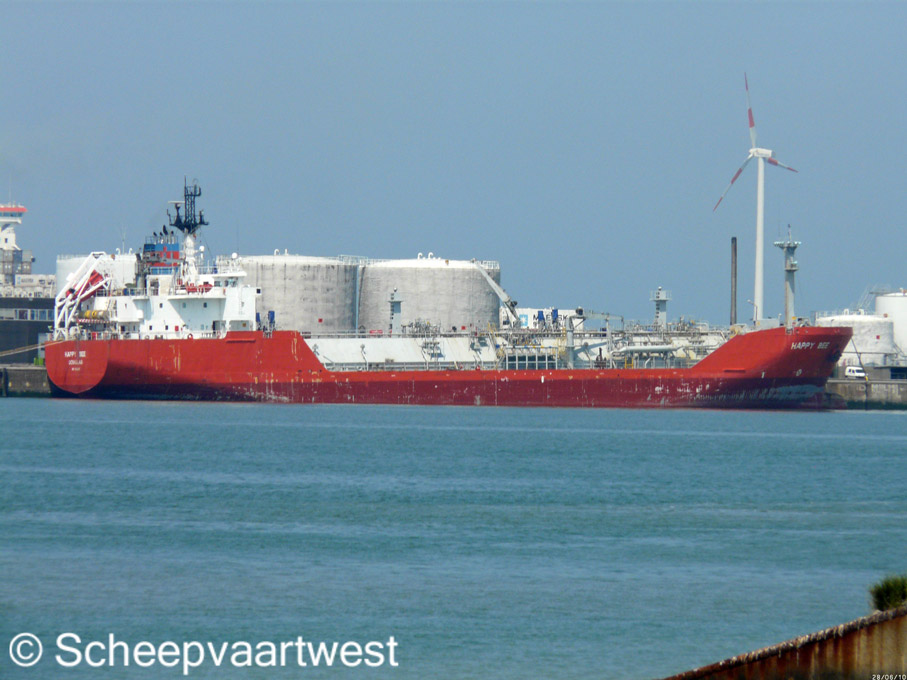

| Zeebrugge 28/06/10 |
|
Name |
HAPPY BEE |
|
Type |
Liquefied gas tanker |
|
IMO-number |
9143506 |
|
Call sign |
ZNBJ6 |
|
Flag |
Isle of Man - United Kingdom |
|
Port of registry |
Douglas |
|
GT |
5.420 t |
|
DWT |
4.828 t |
|
NT |
2.019 t |
|
Length |
113,67 m overall |
|
Breadth |
16,54 m |
|
Draught |
Summer: 7,61 m |
|
Freeboard |
1.160 mm |
|
Depth |
8,75 m |
|
Speed |
15,9 knots |
|
Built |
1997 |
|
Keel laid |
25.11.1996 |
|
Launch date |
15.03.1997 |
|
Date of completion |
30.05.1997 |
|
Builder |
Hyundai Heavy Industries Ltd. |
|
Yard number |
992 |
|
Hull material |
Steel |
|
Hull type |
Double sided |
|
Watertight compartments |
4 |
|
Continuous decks |
1 |
|
Main engine |
1x Burmeister & Wain 6S.35MC - 2 stroke 6 cylinder 350 x 1.400 mm internal combustion engine - 4.195 kW / 5.700 hp at 170 rpm Built: 1996 Builder: Hyundai Heavy Industries, Ulsan - South Korea |
|
Number of screws |
1x Screw propeller controllable pitch at 170 rpm |
|
Boilers |
1x CHM 22,00 m² - 10,0 bar |
|
Electrical installation |
Power voltage: 450 V Lighting voltage: 220 V Frequency: 60 Hz |
|
Generators |
4x Diesel generatorsets each 545 kVA - 436 kW - 2.671 hp |
|
Number of tanks |
2x Independent fully refrigerated gas tanks |
|
Cargo capacity |
7.311 m³ |
|
Minimum temperature |
-48°C |
|
Cargo handling |
4x Pumps - 880 m³/h |
|
Fuel capacity |
658 m³ |
|
Crew |
19 |
|
Technical manager |
Bernhard Schulte Shipmanagement |
|
Commercial manager |
Unigas International BV |
|
Previous manager |
Hanseatic Shipping GmbH & Co.KG (Unigas) |
|
Previous shipping company |
Othello Shipping Company |
|
Registered owner |
Island Ocean Marine Co., Ltd. (Othello Shipping Co.) United Kingdom |
|
Latest data adjustment |
26 August 2014 |
