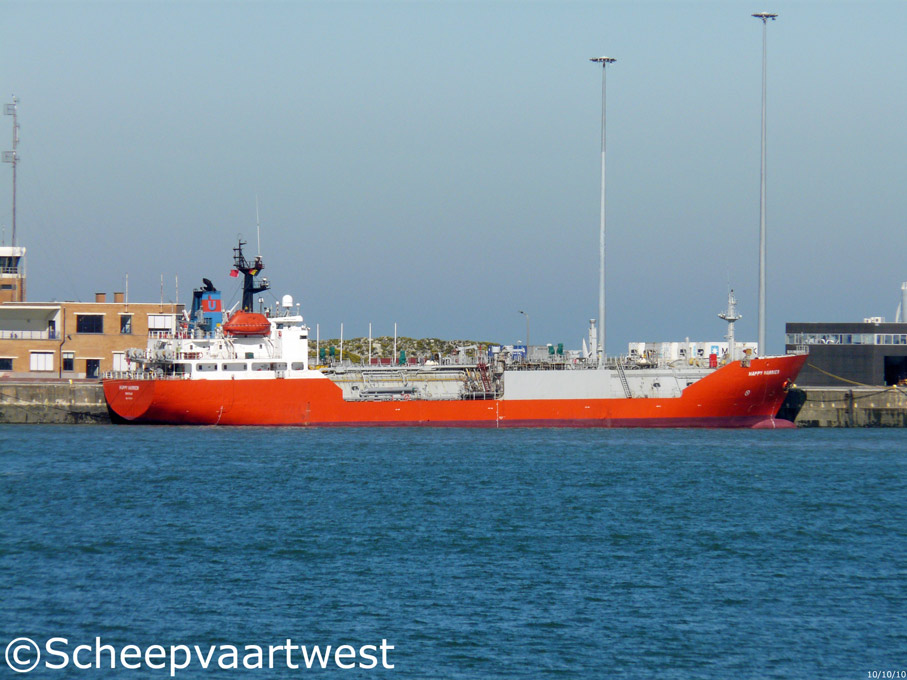

| Zeebrugge 10 October 2010 |
|
Name |
HAPPY HARRIER |
|
Previous name |
1988 - 2002 Tarquin Trader |
|
Type |
Liquefied gas tanker |
|
Main products |
Ammoniac - Ethylene - Liquefied petroleum gases - Vinyl-Chloride monomer |
|
IMO-number |
8716514 |
|
Call sign |
ZIRR2 |
|
Flag |
Isle of Man (United Kingdom) |
|
Port of registry |
Douglas |
|
GT |
3.595 t |
|
DWT |
4.320 t |
|
NT |
1.095 t |
|
Length |
98,25 m overall |
|
Breadth |
15,00 m |
|
Draught |
6,25 m |
|
Freeboard |
1.261 mm |
|
Depth |
7,51 m |
|
Speed |
15,8 knots |
|
Built |
1988 |
|
Keel laid |
09.05.1988 |
|
Launch date |
16.08.1988 |
|
Date of completion |
01.09.1988 |
|
Builder |
IHH - Ishikawajima-Harima Heavy Industries Co., Ltd. |
|
Yard number |
2973 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartments |
7 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M.551AK - 4 stroke single acting 6 cylinder 450 x 550 mm internal combustion engine - 4.500 kW / 6.114 ph at 450 rpm Built: 1988 Builder: Maschinenbau, Kiel - Germany |
|
Number of screws |
1x Screw propeller controllable pitch at 185 rpm |
|
Boiler |
1x CHM 44,00 m² - 6,0 bar |
|
Electrical installation |
Power voltage: 440 V Lighting voltage: 220 V |
|
Generators |
4x Diesel generatorsets each 437 kVA - 350 kW - 476 hp |
|
Number of tanks |
2x Independent gas tanks fully refrigerated |
|
Cargo capacity |
4.038 m³ |
|
Tank max. pressure |
5,7 bar |
|
Minimum temperature |
-104,0°C |
|
Transport type |
Refrigerated |
|
Cargo handling |
5x Pumps - 825 m³/h |
|
Fuel capacity |
491 m³ |
|
Crew |
16 |
|
Manager |
Hansetic Shipping Co Ltd. |
|
Shipping company |
Othello Shipping Company |
|
Group |
Unigas |
|
Owner |
Lomond Shiping Company S.A |
|
Scrapped |
10.2013 Aliaga - Turkey |
|
Last update |
10 December 2013 |
