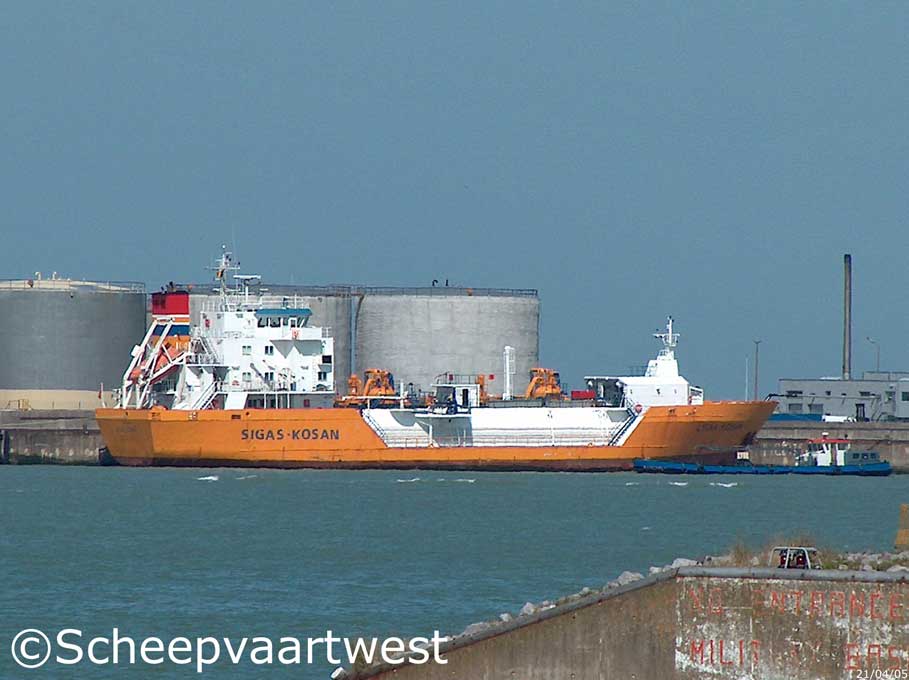

| Zeebrugge 21 April 2005 |
|
Name |
LYDIA KOSAN |
|
Type |
Liquefied gas carrier |
|
IMO-number |
9043457 |
|
Call sign |
VQAL8 |
|
Flag |
United Kingdom |
|
GT |
2.223 t |
|
DWT |
2.004 t |
|
NT |
666 t |
|
Length |
73,60 m overall 66,55 m between perpendiculars |
|
Breadth |
14,00 m |
|
Draught |
Summer: 4,96 m |
|
Air draft |
21,90 m in ballast |
|
Depth |
6,10 m |
|
Speed |
12,5 knots |
|
Built |
1993 |
|
Built of completion |
15/03/1993 |
|
Builder |
Hermann Sürken Schiffswerft & Co. Papenburg Germany |
|
Yard number |
378 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartments |
6 |
|
Continuous decks |
2 |
|
Watertight compartments |
6 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN-B&W - 4 stroke 6 cylinder 280 x 320 mm combustion engine 1.470 kW / 1.997 hp at 775 rpm Built: 1992 |
|
Electrical propulsion gen. |
1x 388 kW |
|
Propelling system |
1x Controllable pitch propeller - aft at 201 rpm |
|
Electrical installation |
Power voltage: 440 V Lighting voltage: 220 V Frequency: 60 Hz |
|
Generators |
3x Diesel generatorsets each 243 kVA - 194 kW - 289 hp |
|
Bow thruster |
1x Brunvoll FU-37 LTC - 220 kW, forward |
|
Number of tanks 100 % |
2 Tank 1: 1.134,09 m³ Tank 2: 626,48 m³ Total: 1.760,57 m³ |
|
Minimum temperature |
-48°C |
|
Tank max. pressure |
7,5 bar |
|
Number of pumps |
2x Deepwell pumps each 220 m³/h 1x Booster pump on deck 300 m³/h |
|
Lifting equipment |
Manifold crane - SWL 0,99 t |
|
Tank capacities |
Fuel: 343 m³ |
|
Owner |
Lauritzen Kosan A/S 28 Sankt Annae Plads 1291 Copenhagen K Denmark |
|
Renamed |
20/11/2006 Sigas Lydia Call sign: 9VMC3 Flag: Republic of Singapore Owner: Sigas (Singapore) Pte Ltd. |
|
Latest data adjustment |
10 October 2024 |
