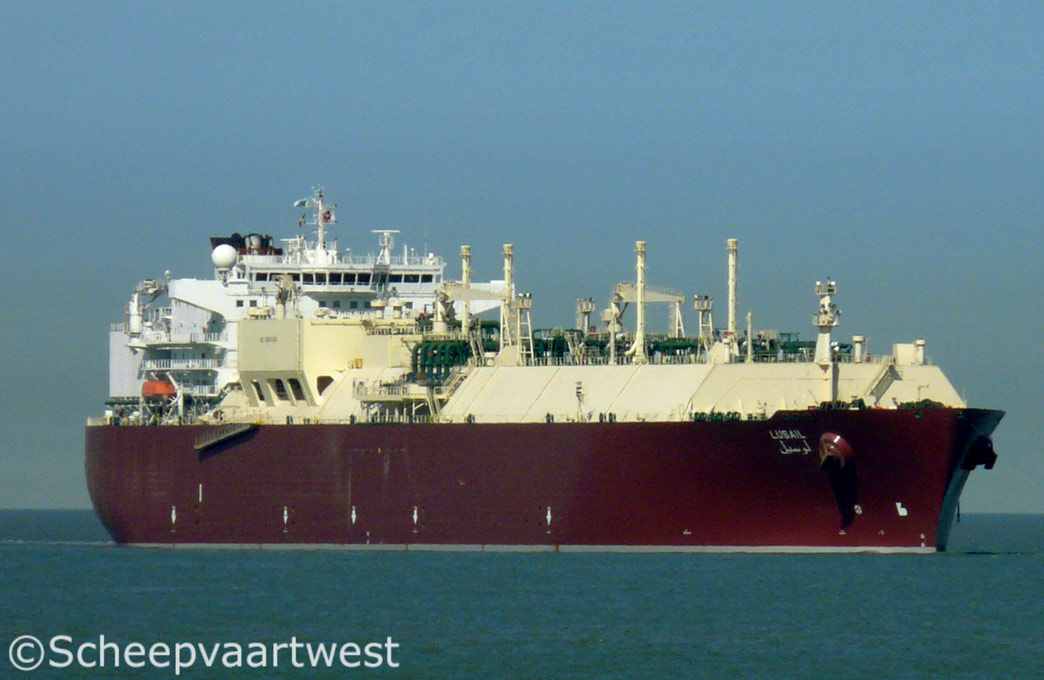

Lusail 01
Zeebrugge 27 March 2012

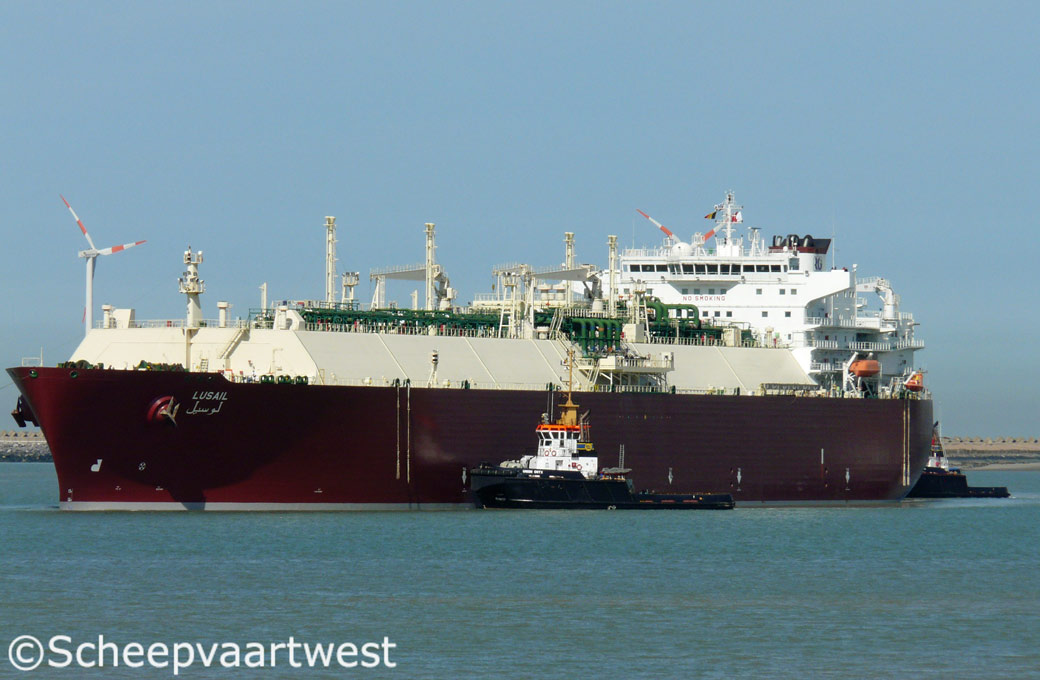

Lusail 08
Zeebrugge 27/03/12



Name

LUSAIL

Previous names

2005 - 2005 Al Wosail

Type

Membrane tank liquefied natural gas carrier

IMO-number

9285952

Call sign

C6TH2

Flag

Bahamas

Port of registry

Nassau

GT

95.824 t registered

DWT

78.489 t

NT

28.747 t registered

Length

283,00 m overall

270,00 m between perpendiculars

Breadth

43,40 m moulded

Draught

Summer: 12,40 m

Freeboard

14.013 mm

Depth

26,00 m

Speed

20,5 knots

Built

2005

Keel laid

09.02.2004

Launch date

01.05.2004

Date of completion

24.06.2005

Builder

Samsung Heavy Industries Co., Ltd.
Koje
South Korea

Yard number

1440

Hull material

High strength steel

Ordinary strength steel

Hull type

Double hull

Bulkheads

Non tight: 3

Water tight: 5

Gas tight: 17

Oil tight: 3

Steam turbine

1x Mitsubishi MS40-2 - 14.235 kW at 5.987 rpm

1x Mitsubishi MS40-2 - 14.817 kW at 3.493,7 rpm - 8,5 bar

Total: 29.052 kW / 39.000 shp

Manufacturer name: Mitsubishi Heavy Ind.

Main reduction gear

1x Mitsubishi MS40-2 - 29.450 kW

Manufacturer name: Mitsubishi Heavy Inf.

Propeller

1

Steam piping system

2x Boilers Mitsubishi MB-4E-KS - 30.940 m² - 78,0 bar

Manufacturer name: Mitsubishi Heavy Ind.

Generators

1x Taiyo HPW 75C-10 - 3.450 kW

2x Taiyo HPW 65B-4 - 3.450 kW each

Manufacturer name: Taiyo Electric Co.,Ltd.

Cargo capacity

145.702 m³

Minimum cargo temp.

-163°C

Max. cargo pressure

0,255 bar

Number of tanks

Ballast: 14

Lubricating oil: 11

Fuel oil: 8

Fresh water: 5

Sludge: 2

Diesel oil: 2

Chain: 1

Sea water: 1

Tank capacities

Diesel oil: 346 m³ / 311,4 t

Fresh water: 983,7 m³

Fuel oil: 7.590 m³ / 7.438,59 t

Lube oil: 458,4 m³ / 412,56 t

Ballast capacity: 57.340,9 m³ / 58.774,42 t

Lifting equipment

1x Pedestal crane GP100-0610 - SWL 6,0 t

Manufacture name: Dong Woo Machinery & Engineering

1x Crew elevator P500-1SCO-60-9 - SWL 5,0 t

Manufacture name: Hyundai Elevator CO.

2x Hose handling pedestal crane HH400-1025 - SWL 10,0 t each

Manufacture name: Dong Woo Machinery & Engineering

2x Provision pedestal crane GP160-0518 - 10,0 t each

Manufacture name: Dong Woo Machinery & Engineering

Crew

31

Operator

NYK LNG Shipmanagement (UK) Ltd.

Owner

Peninsula LNG Transport NO. 1 Ltd.
80 Broad Street
Nassau
Bahamas

Registered owner

Peninsula LNG Transport NO. 1 Ltd.
