Antwerpen 06 May 2013 |

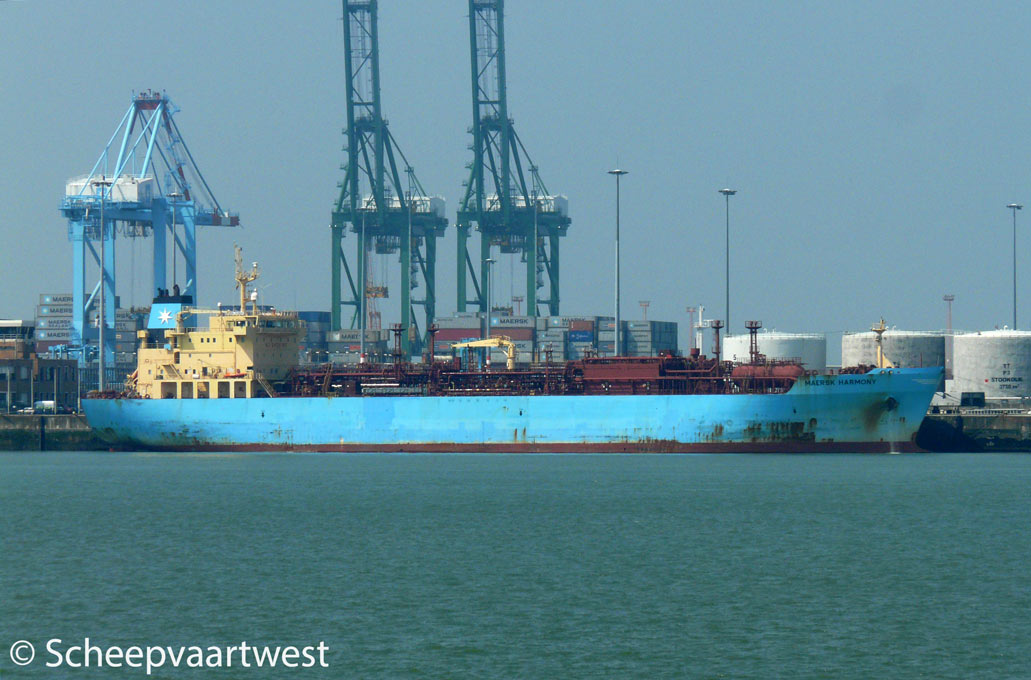

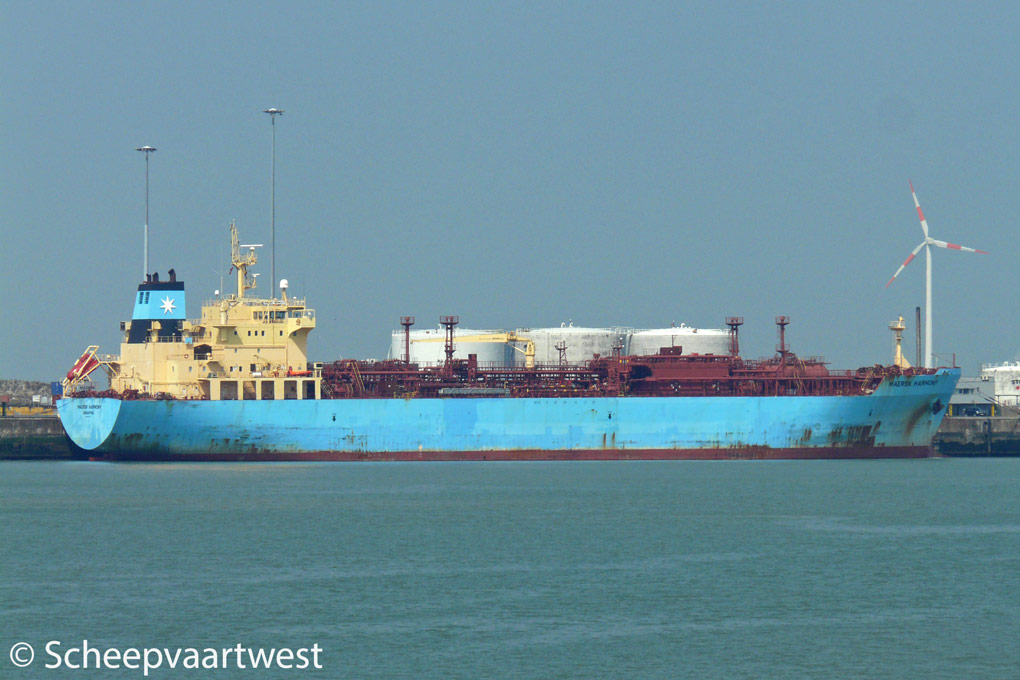

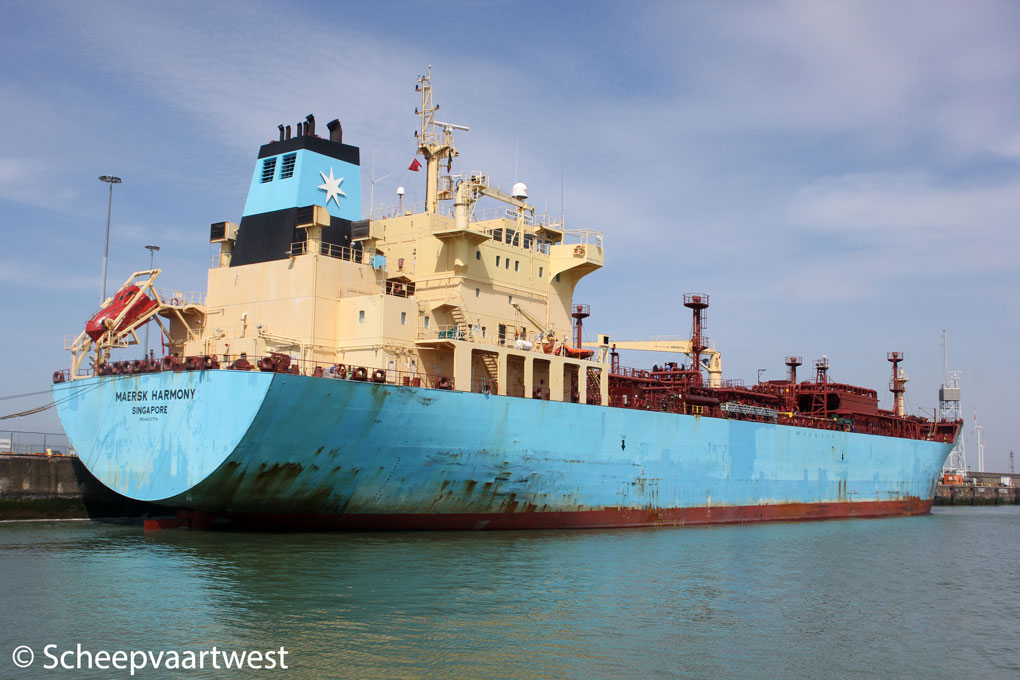

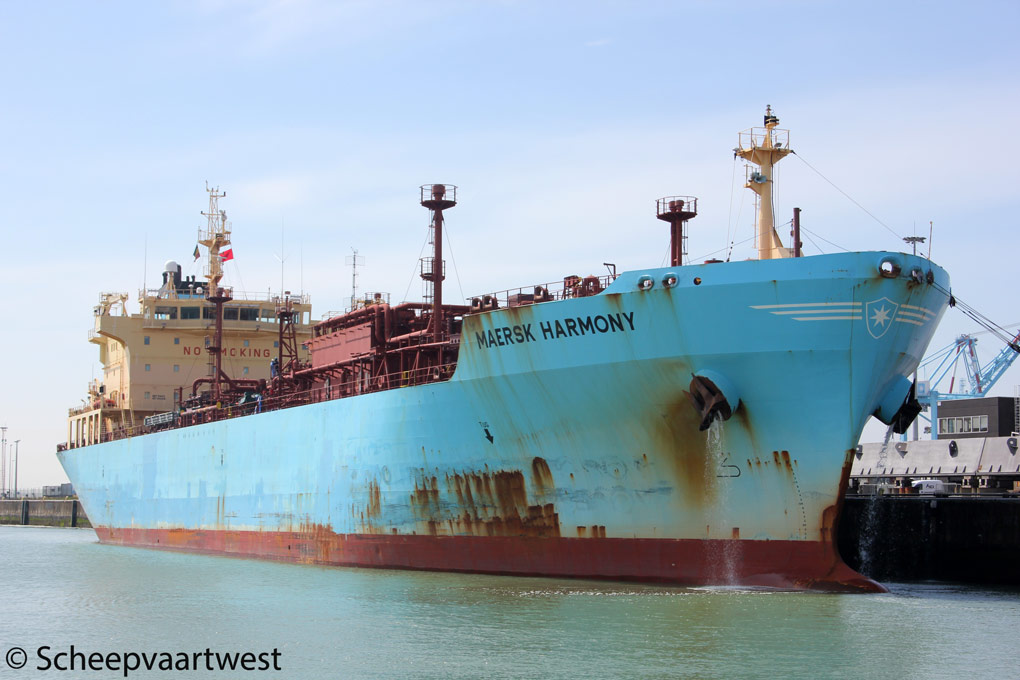

Antwerpen 06/05/13 | Zeebrugge 03/05/13 | Zeebrugge 03/05/13 |
Name |
MAERSK HARMONY |
Type |
Liquefied gas tanker |
IMO-number |
9403774 |
Call sign |
9V7694 |
Flag |
Republic of Singapore |
Port of registry |
Singapore City |
GT |
18.311 t |
DWT |
Summer: 23.333 t |
NT |
5.493 t |
Length |
159,00 m overall 152,20 m between perpendiculars |
Breadth |
25,60 m |
Draught |
10,90 m |
Air draft |
41,00 m lightship 44,75 m keel to mast |
Depth |
16,40 m moulded |
Speed |
16,7 knots |
Built |
2008 |
Date of completion |
24/10/2008 |
Builder |
Hyundai Mipo Dockyard Co., Ltd. |
Hull material |
Steel |
Hull type |
Double hull |
Main engine |
1x MAN B. & W. 6S46MC-C - 2 stroke single acting 6 cylinder diesel engine - 7.860 kW / 10.532 hp at 129 rpm |
Propellers |
1 |
Number of tanks |
4x Double cylinder (Bi-lobe) |
Cargo capacity |
20.550 m³ |
Max. discharge capability |
2.000 m³ |
Min. tank temperature |
-48°C |
Max. tank pressure |
5,30 kg/cm² |
Manifolds |
Distance from bow to centre manifold: 81,00 m Distance of cargo manifold inboard from ship's rail: 3,75 m |
Bunker capacity |
1.900 t |
Crew |
17 |
Manager |
Maersk Tankers A/S |
Operator |
Maersk Tankers A/S |
Owner |
Ap Moller Singapore |
Registered owner |
Maersk Handy Gas Pte Ltd. |
Renamed |
07/2013 Navigator Capricorn Liberia, Monrovia - Call sign: D5DP5 |
Last update |
22/05/2013 |
