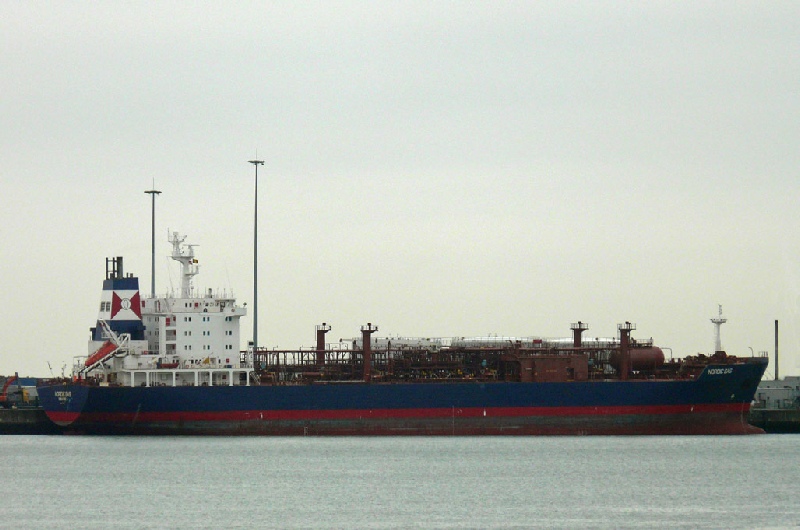

| Zeebrugge 22 December 2011 |
|
Name |
NORDIC GAS |
|
Previous name |
1994 - 01.04.2007 Henriette Maersk |
|
Type |
Liquefied gas tanker - Semi refrigerated |
|
IMO-number |
9034729 |
|
Call sign |
S6BE2 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore |
|
GT |
18.360 t |
|
DWT |
Summer: 23.256,6 t |
|
NT |
5.508 t |
|
Length |
159,98 m overall 152,20 m between perpendiculars |
|
Breadth |
25,63 m |
|
Draught |
Summer: 10,91 m |
|
Freeboard |
2.013 mm |
|
Depth |
16,40 m |
|
Speed |
18,0 knots |
|
Built |
1994 |
|
Date of completion |
25.02.1994 |
|
Builder |
Hyundai Heavy Industries Co., Ltd. |
|
Yard number |
778 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x Hyundai MAN B&W 7L 60 MC - 2 stroke 7 cylinder 600 cm x 1.944 mm diesel engine - 13.395 kW / 18.200 hp at 123 rpm Built: 1992 Builder: Hyundai Heavy Iid. Co., Ltd. - Engine & Mach. Div, Ulsan - South Korea |
|
Propelling system |
1x Screw propeller solid |
|
Boilers |
1x CHO AALBORG 68,70 m² - 6,0 bar |
|
Electrical installation |
Power voltage: 440 V Lighting voltage: 220 V Frequency: 60 Hz |
|
Diesel generators |
3x Hyundai MAN B&W 5L28/32H each 980 kW / 1.425 hp coupled with 3 generators each 1.225 kVA |
|
Emergency generators |
1x Diesel generatorset 124 kVA - 99 kW - 139 hp |
|
Bow thruster |
Not installed |
|
Number of tanks |
8 Tank 1 & 2: 4.211,00 m³ Tank 3 & 4: 5.634,20 m³k Tank 5 & 6: 5.633,00 m³ Tank 7 & 8: 5.222,00 m³ Total: 20.700,20 m³ |
|
Pressure |
5,51 bar |
|
Minimum temperature |
-48°C |
|
Cargo pumps |
8x Svanehoy each 225 m³/h at 120 mlc |
|
Fuel capacity |
2.930,6 m³ |
|
Lifting equipment |
2x Cargo hose - each SWL 5,0 t |
|
Crew |
19 |
|
Manager |
BSM - Bernhard Schulte Shipmanagement |
|
Owner |
Ultragas Group |
|
Registered owner |
Newhaven Marine Pte. Ltd. |
