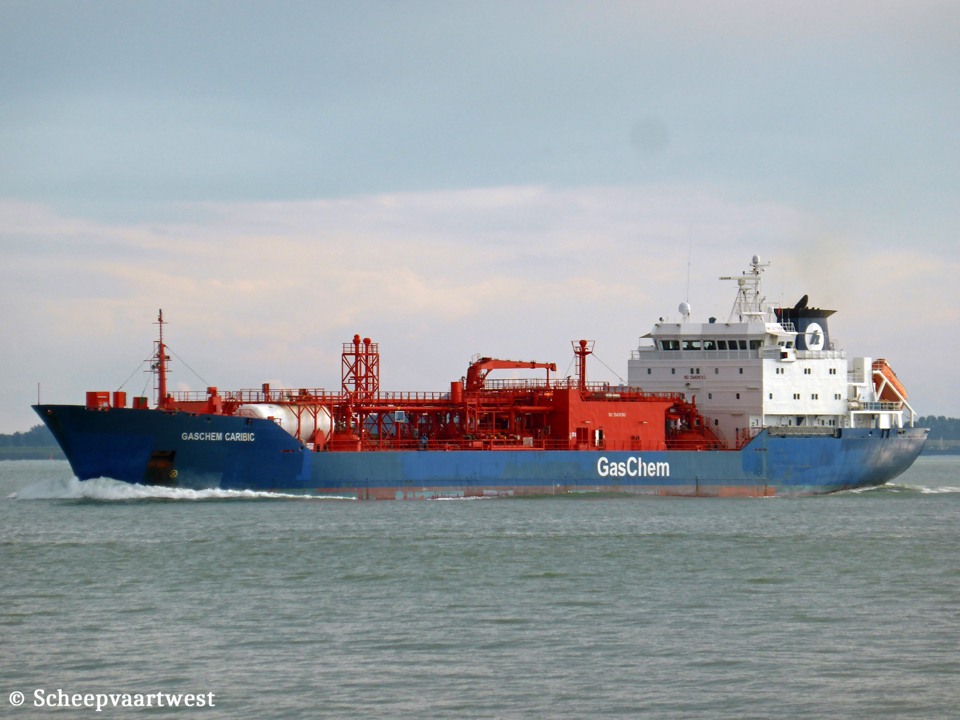

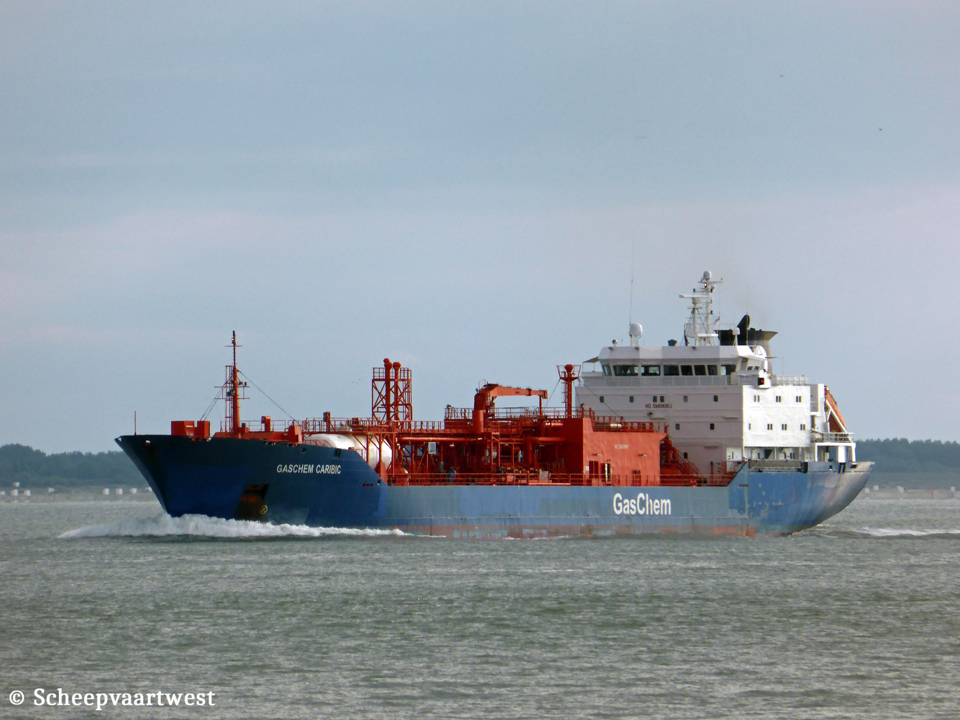

Westerschelde 02 September 2015 |
 |
 |
 |
||

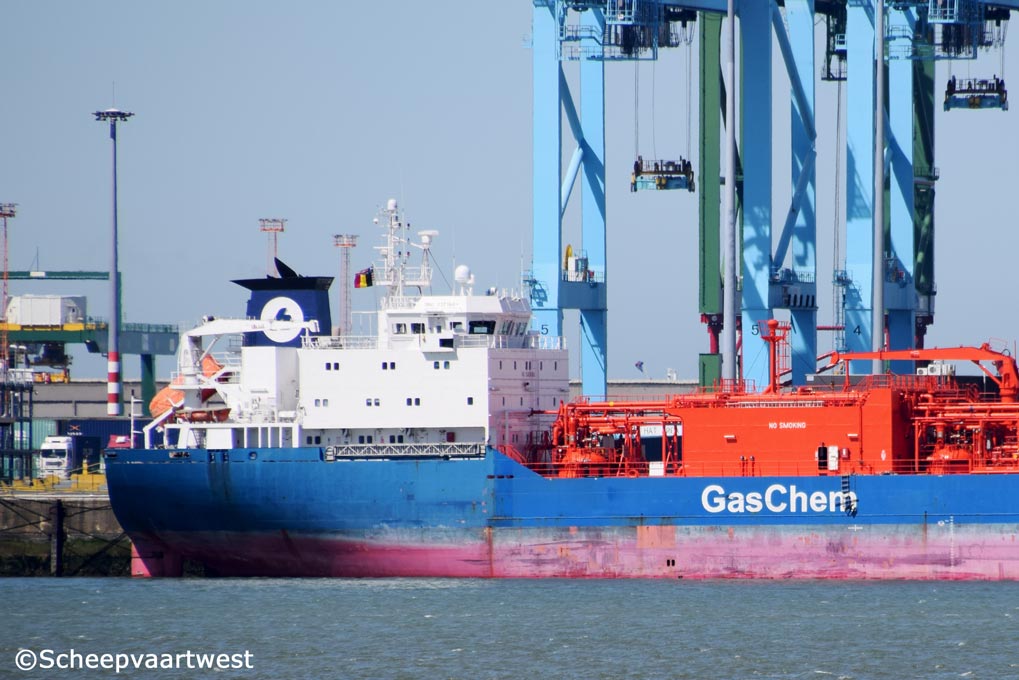

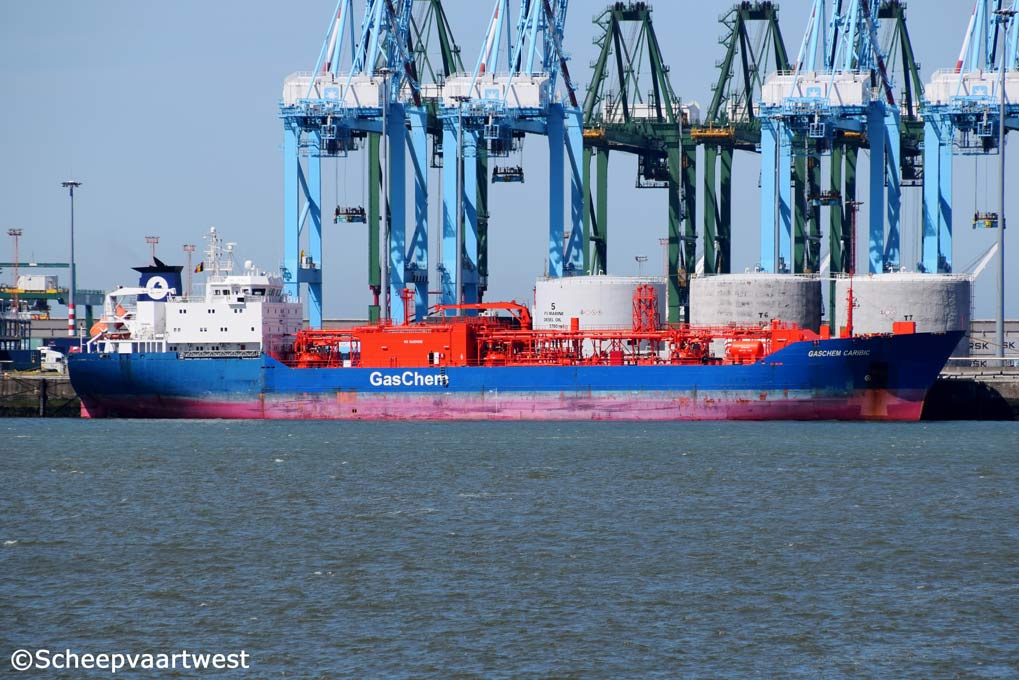

| Westerschelde 02/09/15 | Zeebrugge 21/04/15 | Zeebrugge 21/04/15 | ||
|
Name |
GASCHEM CARIBIC |
|
Type |
Liquefied gas tanker - Ethylene / LPG Gas carrier |
|
IMO-number |
9371684 |
|
Call sign |
A8UB4 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
7.313 t |
|
DWT |
Summer: 9.305 t |
|
NT |
2.202 t |
|
Lightweight |
4.495 t |
|
Length |
128,83 m overall 121,68 m between perpendiculars |
|
Breadth |
17,81 m moulded 18,88 m extreme |
|
Draught |
Summer: 8,60 m |
|
Keel to end antenna |
35,00 m |
|
Freeboard |
3.315 mm |
|
Depth |
11,90 m moulded |
|
Speed |
16,5 knots in ballast |
|
Built |
2011 |
|
Keel laid |
15/09/2009 |
|
Launch date |
07/08/2010 |
|
Date of completion |
25/01/2011 |
|
Builder |
Severnav S.A. Strada Timisoarei 204 220242 Drobeta Turnu Severin Romania |
|
Yard number |
243 |
|
Hull material |
Shipbuilding steel (standard) Higher tensile steel |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
5 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M43C - 4 stroke 6 cylinder 430 x 610 mm combustion engine 5.400 kW / 7.341 hp at 500 rpm Year of manufacture: 2009 Manufacturer: Caterpillar Motoren GmbH & Co. KG Falckensteiner Str. 2 24159 Kiel Federal Republic of Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 139,0 rpm |
|
Boilers |
1x Thermal oil heater, oil fired - 10,0 bar Heating surface: 43,4 m² 1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 165,1 m² Year of manufacture: 2010 Manufacturer: HTI - GESAB Hoch-Temperatur Industrieanlagen GmbH Sauerbruchstr. 11 25479 Ellerau Federal Republic of Germany |
|
Electric installations |
3x Plant each 440 V - 831 kVA 1x Plant 440 V - 1.875 kVA 1x Plant 440 V - 123 kVA 1x Plant 24 V - 135 Ah 1x Plant 24 V - 200 Ah 1x Plant 24 V - 200 Ah 1x Plant 24 V - 400 Ah |
|
Shaft generator |
1x 1.875 kVA |
|
Generators |
3x Caterpillar 3508 B-DITA-SCAC main diesel generatorsets each 760 kW |
|
Emergency generator |
1x Sabre 3056T-6TG2AM diesel generatorset 123 kVA |
|
Batteries |
1x Battery for automation 200 Ah 1x Battery for automation 200 Ah 1x Battery for diesel control 200 Ah 1x Battery for UPS navigation 200 Ah 1x Battery for UPS radio 135 Ah |
|
Compressed air receivers |
1x Receiver 125 litres - 33,0 bar 2x Receivers each 500 litres - 30,0 bar 1x Receiver 1.000 litres - 13,0 bar |
|
Bow thruster |
1x Jastram BU 60F transverse thruster 450 kW, forward |
|
Number of cargo tanks |
3 |
|
Cargo tank capacity 98% |
Tank 1: 2.317 m³ Tank 2: 2.956 m³ Tank 3: 2.955 m³ Total: 8.328 m³ |
|
Number of slop tanks |
1 |
|
Slop tank capacity 98% |
97 m³ |
|
Pumps |
6x Svanehoj deepwell cargo pumps each 170 m³/h 1x Svanehoj booster pump 300 m³/h |
|
Min temp |
-104°C |
|
Max tank perssure |
4,5 bar |
|
Tank capacities |
Fuel oil 98%: 903 m³ MGO: 98%: 206 m³ Fresh water: 217 m³ Water ballast: 1.737,1 m³ |
|
Anchor equipment |
3x Anchors weight each 3.780 kg Chain length: 522,50 m Diameter: 48 mm |
|
Lifting equipment |
1x Crane Global Davit - SWL 4,0 t - Outreach 4,10 m |
|
Crew size |
19 |
|
Coimmercial manager |
Gaschem Services GmbH & Co KG Am Sandtorkai 41 20457 Hamburg Germany |
|
ISM manager |
Hartmann Gas Carriers Germany GmbH & Co. KG Königstraβe 23 26789 Leer Germany |
|
Previous manager |
Hartmann Schiffahrts GmbH & Co. KG, 26789 Leer - Federal Republic of Germany |
|
Registered owner |
Dylan Maritime 10 DAC 32, Molesworth Street Dublin 2 Ireland |
|
Previous owners |
Chemgas Schiffahrts GmbH & Co. MT "NEISSE" KG, 26789 Leer - Federal Republic of Germany |
|
Latest data adjustment |
02 March 2024 |
