Westerschelde 03 August 2019 |
 |
 |
 |
||
| Terneuzen 17/07/19 | Terneuzen 17/07/19 | Westerschelde 07/04/15 | ||
|
Name |

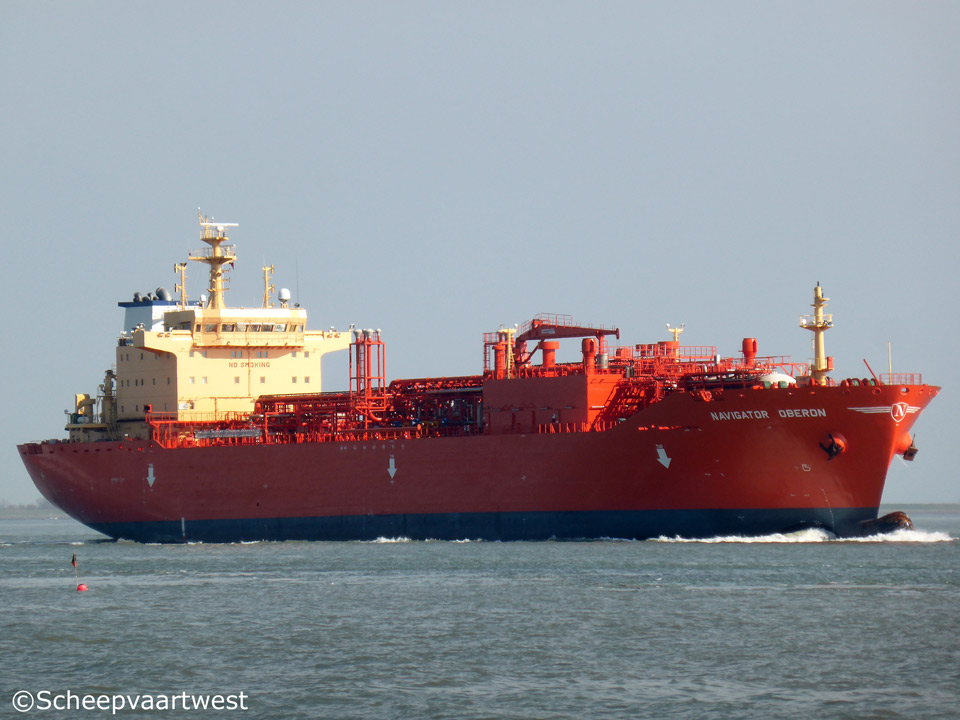

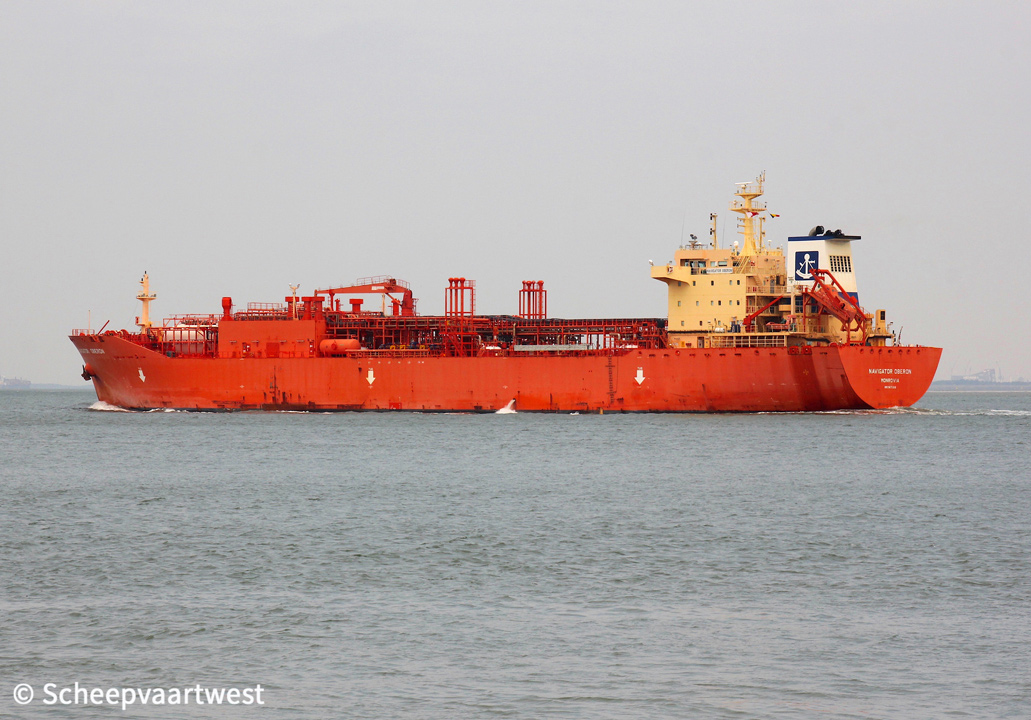

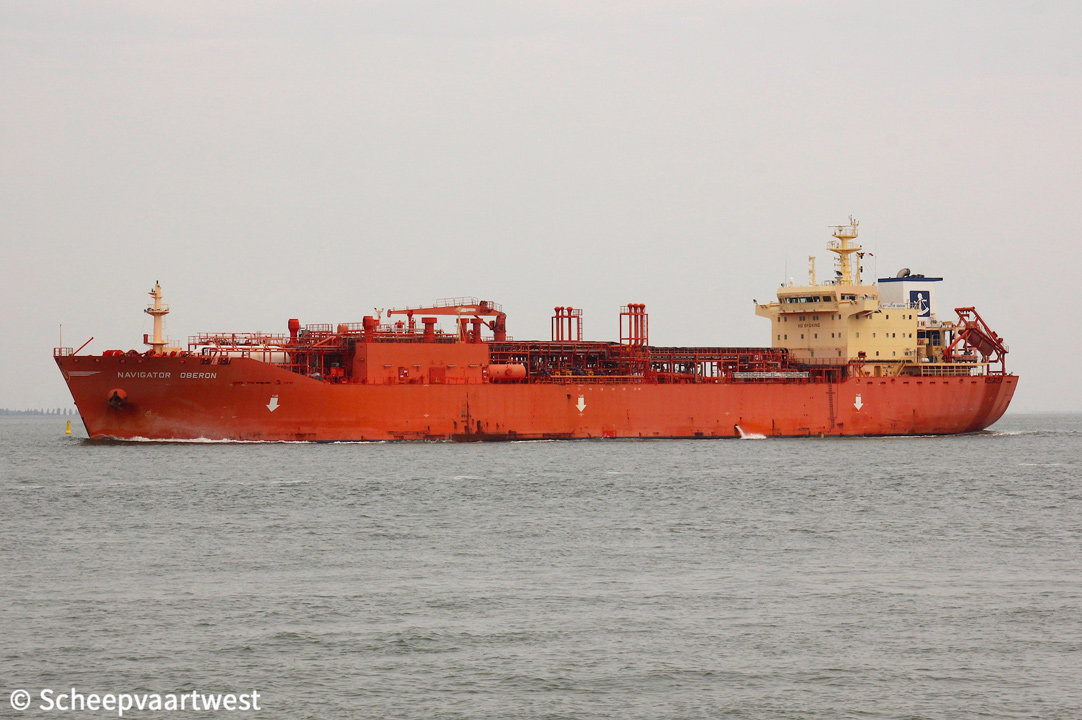

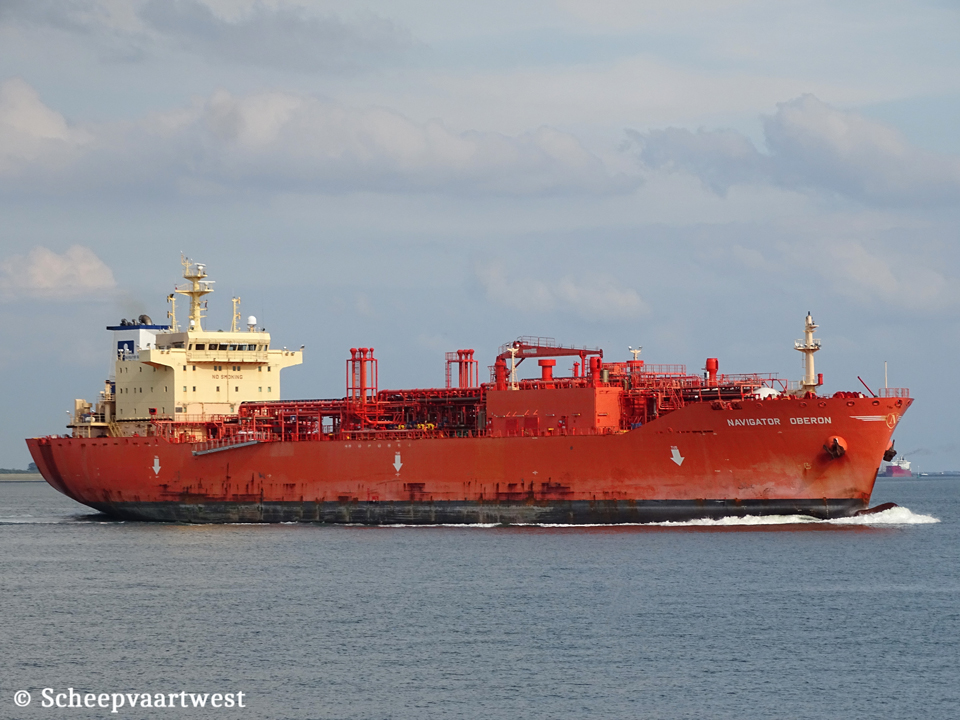

NAVIGATOR OBERON |
|
Type |
Liquefied gas tanker - LPG |
|
Main products |
Ammonia - Butadiene - Butane - Butene-1 - Crude-C4 - Ethylene - Propane - Propylene - V.C.M |
|
IMO-number |
9671216 |
|
Call sign |
D5FZ4 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
17.208 t |
|
DWT |
Summer: 16.994,3 t |
|
NT |
5.163 t |
|
Length |
159,93 m overall 152,68 m between perpendiculars |
|
Breadth |
24,83 m extreme |
|
Draught |
9,40 m 6,90 m ballast |
|
Keel to mast end |
42,73 m |
|
Depth |
16,70 m |
|
Speed |
Service: 16,0 knots |
|
Built |
2014 |
|
Keel laid |
30/11/2013 |
|
Launch date |
23/04/2014 |
|
Date of completion |
05/12/2004 |
|
Builder |
Jiangnan Shipyard (Group) Co., Ltd. Shanghai China |
|
Yard number |
H2532 |
|
Hull material |
Steel |
|
Hull type |
Double bottom |
|
Main engine |
1x MAN-B&W/Hudong 6S50ME-C8.2 - 2 stroke 6 cylinder 500 x 2.000 mm combustion engine 7.170 kW / 9.748 hp at 114,0 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, composite |
|
Generators |
2x MAN 5L21/31 main diesel generatorsets each 1.140 kW 2x MAN 6L21/31 main diesel generatorsets each 1.140 kW |
|
Emergency generator |
1x Cummins 6CTA8.3-D(M) diesel generatorset |
|
Number of cargo tanks |
4x Bi-lobe |
|
Cargo tank capacity |
Liquid: 20.580 m³ |
|
Number of pumps |
8x Svanehoy Deepwell electro motor driven pumps each 250 m³/h |
|
Min. temp |
-104°c |
|
Pressure |
18,0 bar |
|
Tank capacities |
HFO: 1.282 m³ MGO: 447 m³ Fresh water: 300 m³ Water ballast: 7.476 m³ |
|
Anchor equipment |
Length: 577,50 m Diameter: 60 mm |
|
Manager |
Navigator Gas Ship Management (Denmark) ApS Smakkedalen 6 2820 Gentofte Denemarken |
|
Registered owner |
Navigator Oberon L.L.C. Care of Navigator Gas LLC The Verde, 10, Bressenden Place London, SW1E 5DH United Kingdom |
|
Latest data adjustment |
27 November 2022 |
