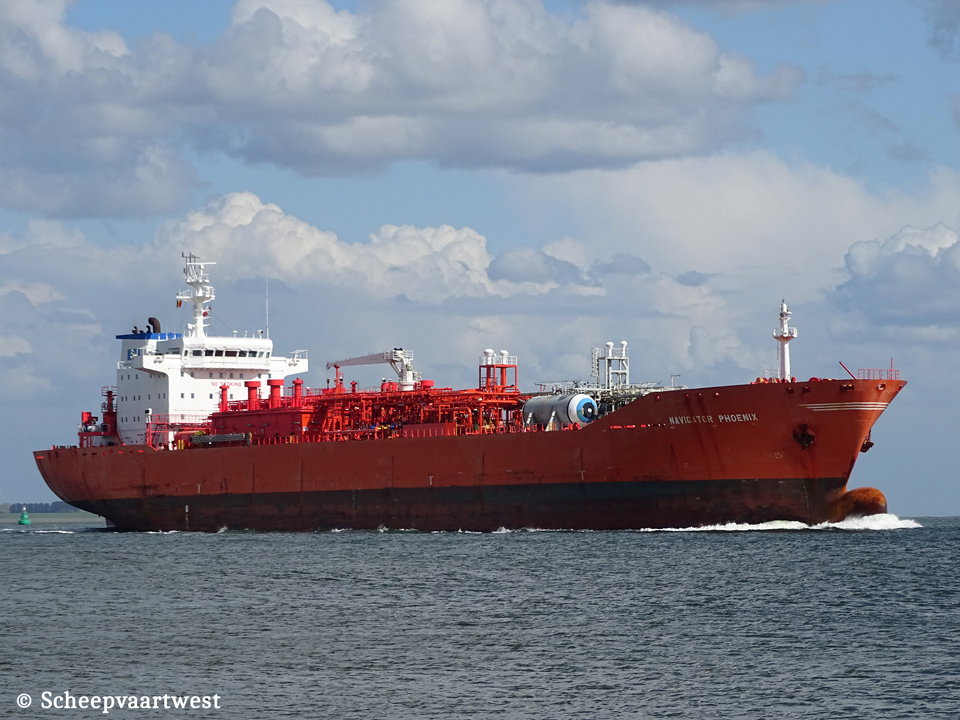

Westerschelde 26 April 2017 |
 |
 |
 |
 |
|||

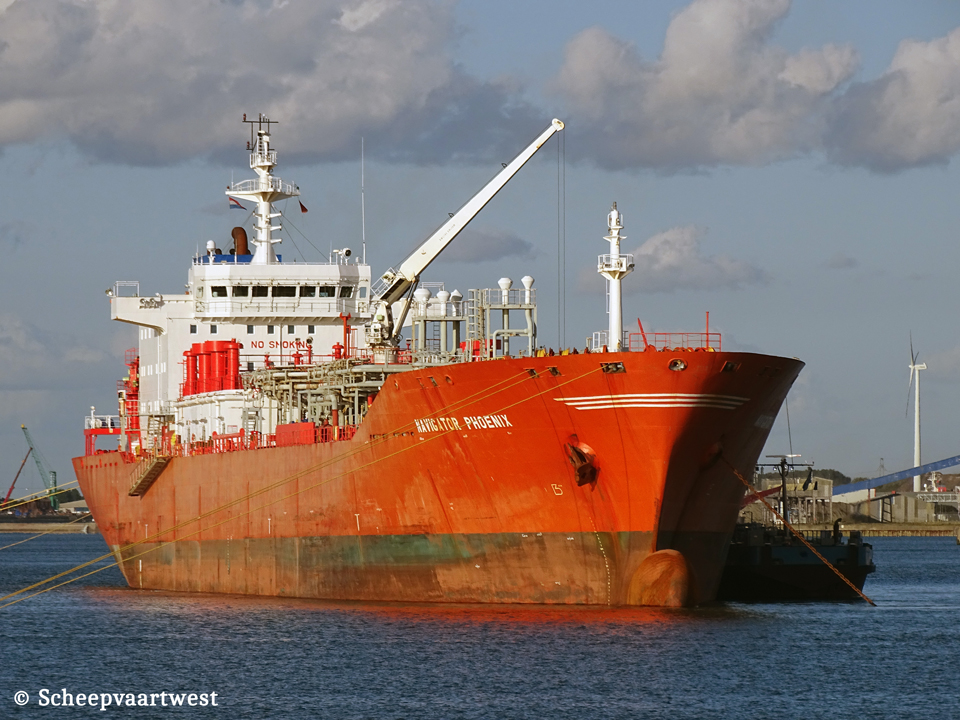

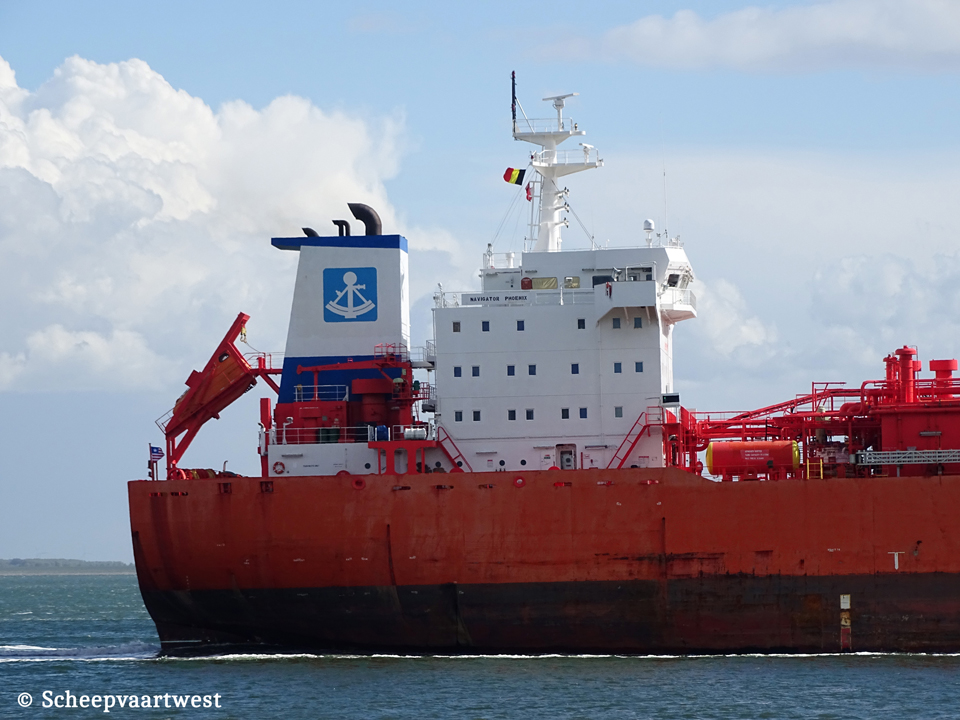

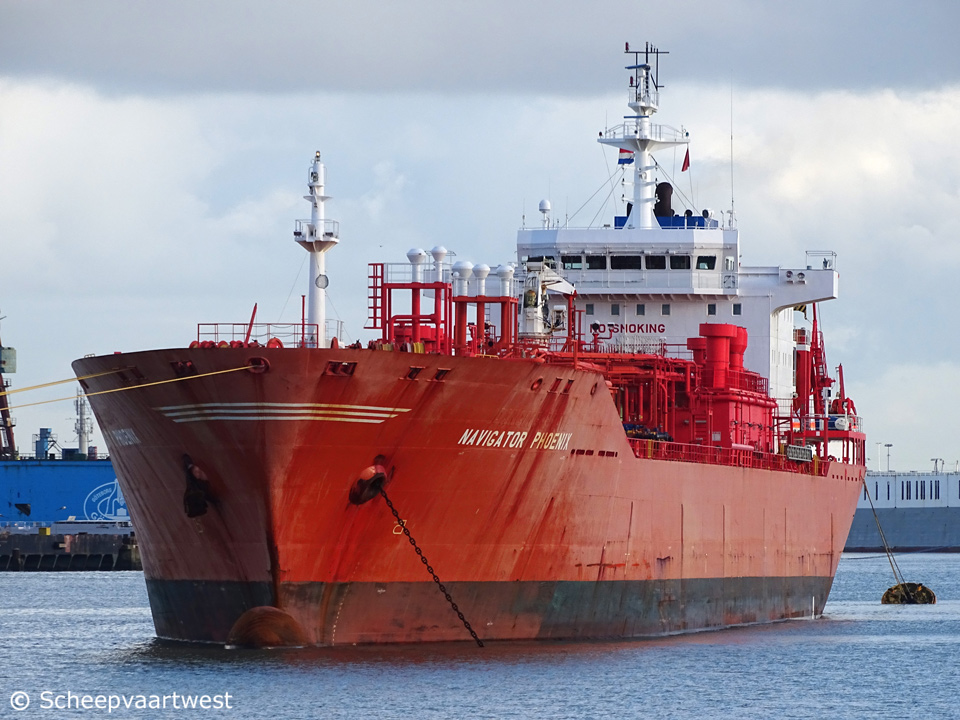

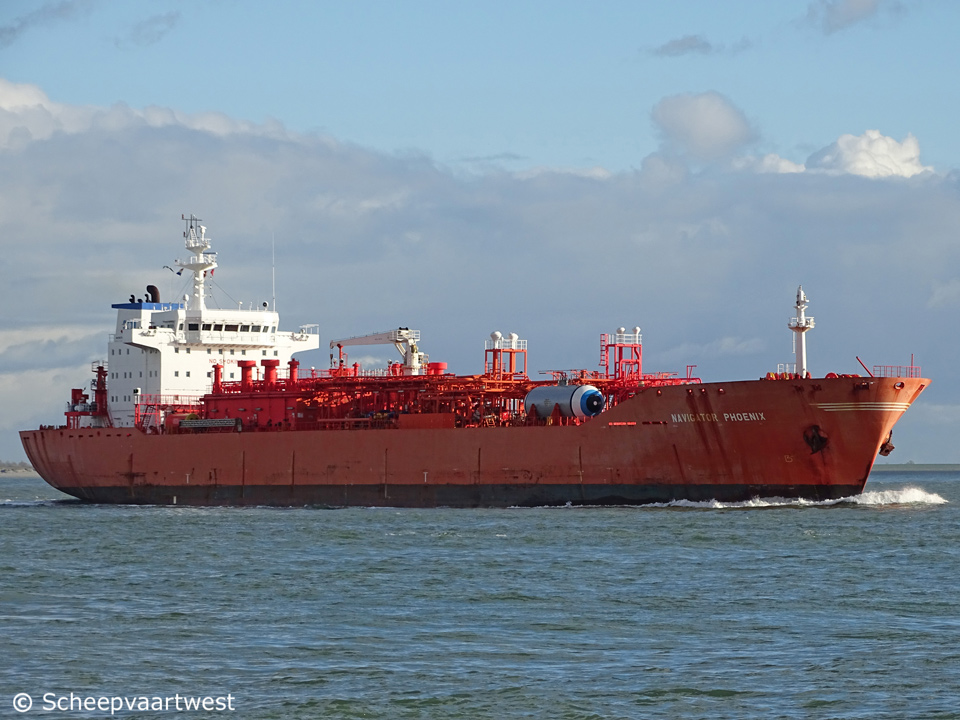

| Westerschelde 26/04/17 | Westerschelde 29/11/17 | Vlissingen 28/11/17 | Vlissingen 10/08/16 | |||
|
Name |
NAVIGATOR PHOENIX |
|
Previous names |
2009 - 04/2012 Dancing Brave |
|
Type |
Liquefied gas tanker - LPG carrier |
|
Products |
Ammonia - Butadiene - Butane - Propane - Propylene (pgm) - Propylene Ox. - V.C.M |
|
IMO-number |
9407330 |
|
Call sign |
D5BS9 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
2009 - 2012 Republic of Singapore |
|
GT |
17.807 t |
|
DWT |
Summer: 23.618,2 t |
|
NT |
5.343 t |
|
Length |
169,98 m overall 160,69 m between perpendiculars |
|
Breadth |
24,23 m extreme |
|
Draught |
11,05 m 6,60 m ballast |
|
Keel to mast end |
42,70 m |
|
Depth |
16,70 m |
|
Speed |
16,5 knots |
|
Built |
2009 |
|
Keel laid |
17/07/2008 |
|
Launch date |
21/12/2008 |
|
Date of completion |
14/08/2009 |
|
Builder |
Jiangnan Shipyard (Group) Co., Ltd. Shanghai China |
|
Yard number |
H2424 |
|
Hull material |
Steel |
|
Hull type |
Double bottom |
|
Main engine |
1x HHM/MAN-B&W 6S50MC-C Mk7- 2 stroke 6 cylinder 500 x 2.000 mm combustion engine 8.580 kW at 127,0 rpm Builder: MAN Diesel & Turbo, Filial of MAN Diesel & Turbo SE - Germany |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, composite - Mission OC |
|
Generators |
3x ZJMD/MAN-B&W 7L 23/30H main diesel generatorsets each 1.120 kW Total: 3.360 kW |
|
Emergency generator |
1x MAN D2866 TE20 diesel generatorset 190 kVA |
|
Number of cargo tanks |
4x Bi-lobe Independent Type C (-48°C; 4,3 Bar) |
|
Cargo tank capacity |
Liquid: 43.543 m³ |
|
Deck tanks |
2x Each 125 m³ (-48°C; 18,2 Bar) |
|
Pumps |
8x Svanehoy Deepwell cargo pumps 250 m³/h electric motor driven |
|
Manifolds |
To stern centre manifolds: 82,00 m To bow centre manifolds: 88,00 m |
|
Tank capacities |
HFO: 1.396 m³ MGO: 398 m³ Fresh water: 260 m³ Ballast: 6.865,4 m³ |
|
Anchor equipment |
Length: 603,00 m Diameter: 62 mm |
|
Commercial manager |
Navigator Gas LCC The Verde 10 Bressenden Place London, SW1E5DH United Kingdom |
|
ISM manager |
Northern Marine Management Ltd. Alba House, 2, Central Avenue, Clydebank Business Park Clydebank, G81 2QR United Kingdom |
|
Registered owner |
Navigator Phoenix LLC Care of Navigator Gas LLC The Verde, 10, Bressenden Place London, SW1E 5DH United Kingdom |
|
Latest data adjustment |
25 February 2023 |
