Westerschelde 06 August 2017 |
|
Name |

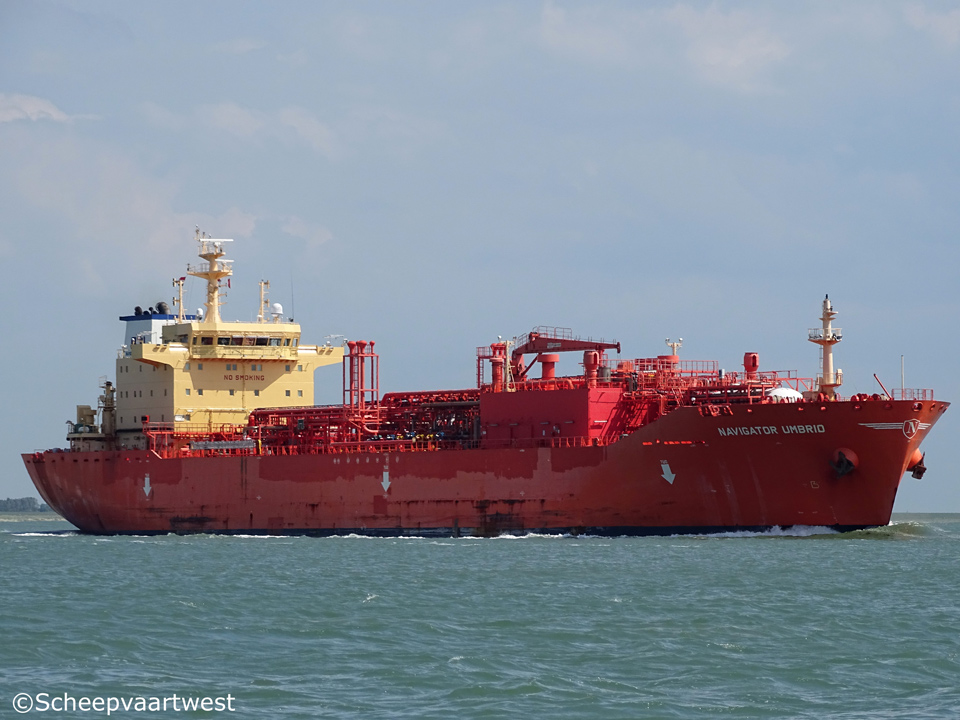

NAVIGATOR UMBRIO |
|
Type |
Liquefied gas carrier - Ethylene - LPG |
|
Products |
Compressed natural gas carriage Compressed petroleum gas carriage Liquefied petroleum gas carriage Liquefied CO2 carriage |
|
IMO-number |
9704491 |
|
Call sign |
D5FZ6 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
17.208 t |
|
DWT |
17.039,9 t |
|
NT |
5.163 t |
|
Length |
159,86 m overall 152,78 m between perpendiculars |
|
Breadth |
24,83 m extreme |
|
Draught |
9,40 m |
|
Depth |
16,70 m |
|
Speed |
Service: 16,0 knots Max.: 17,9 knots |
|
Built |
2015 |
|
Keel laid |
28.05.2014 |
|
Launch date |
12.11.2014 |
|
Date of completion |
27.04.2015 |
|
Builder |
Jiangnan Shipyard (Group) Co., Ltd. China |
|
Yard number |
H2534 |
|
Hull material |
Steel |
|
Hull type |
Double bottom |
|
Main engine |
1x Hudong/MAN B&W 6S50MEC-8.2 - 6 cylinder diesel engine 7.170 kW at 114,0 rpm Manufacturer: MAN Diesel & Turbo, Filial of MAN Diesel & Turbo SE - Germany |
|
Propellers |
1x Mono-block propeller Manufacturer: Dalian Marine Propeller Co., Ltd. |
|
Boilers |
1x Auxiliary boiler, composite Manufacturer: Aalborg |
|
Generators |
2x MAN 5L21/31 main diesel generatorsets each 1.140 kW 2x MAN 6L21/31 main diesel generatorsets each 1.140 kW Total: 3.980 kW |
|
Emergency generator |
1x Cummins 6CTA8.3-D(M ) diesel generatorset |
|
Number of cargo tanks |
4x |
|
Cargo tank capacity |
21.000 m³ |
|
Deck tank |
200 m³ |
|
Pumps |
8x Svanehoy deepwell electric motor driven cargo pumps |
|
Manifolds |
To stern; 70,00 m To bow: 81,00 m |
|
Min. temp. |
-102°C |
|
Tank capacities |
Ballast: 7.476,8 m³ MGO: 442 m³ HFO: 1.282 m³ Fres water: 300 m³ |
|
Anchor equipment |
Length: 577,50 m Diameter: 60 mm |
|
Manager |
Northern Marine Management Ltd. |
|
Operator |
Navigator Gas 10 Bressenden Place London, SW1E5DH United Kingdom |
|
Owner |
Northern Marine Management Ltd. |
|
Registered owner |
Navigator Umbrio LLC |
|
Latest data adjustment |
12 October 2017 |
