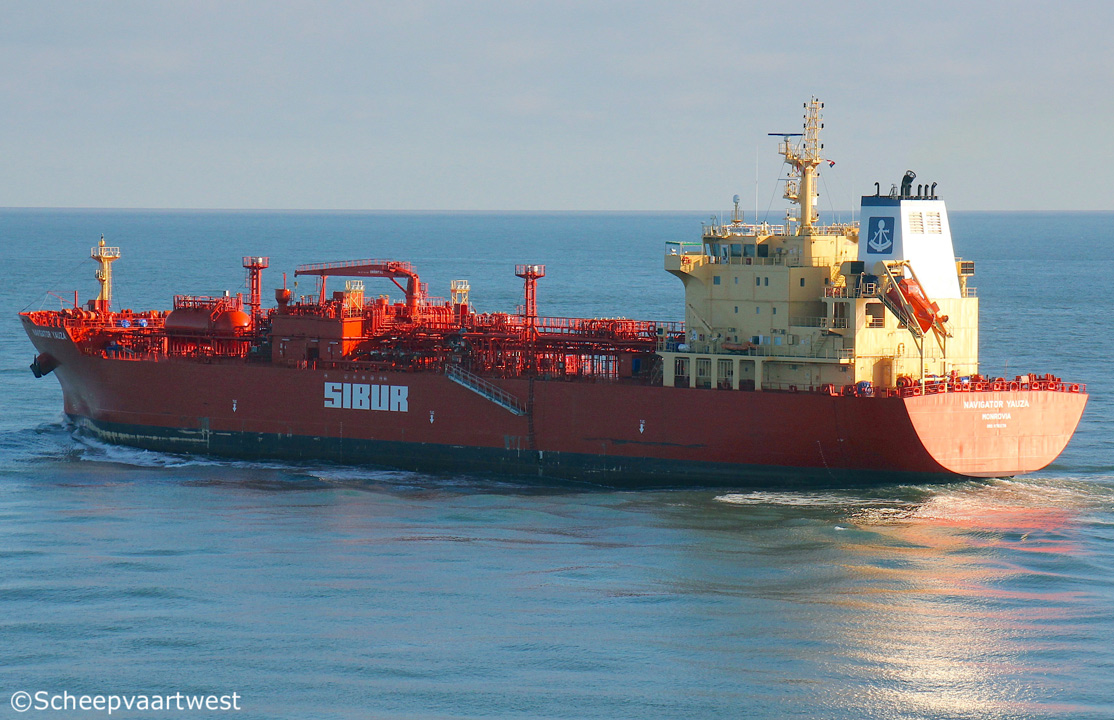

Westerschelde 02 September 2017 |
 |
 |
 |
||

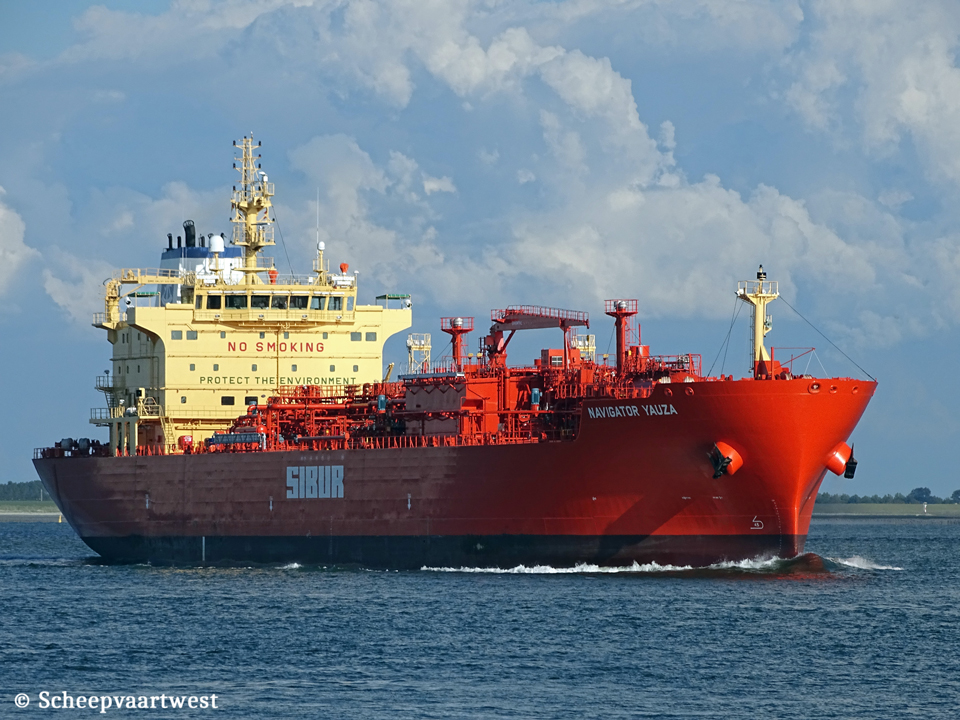

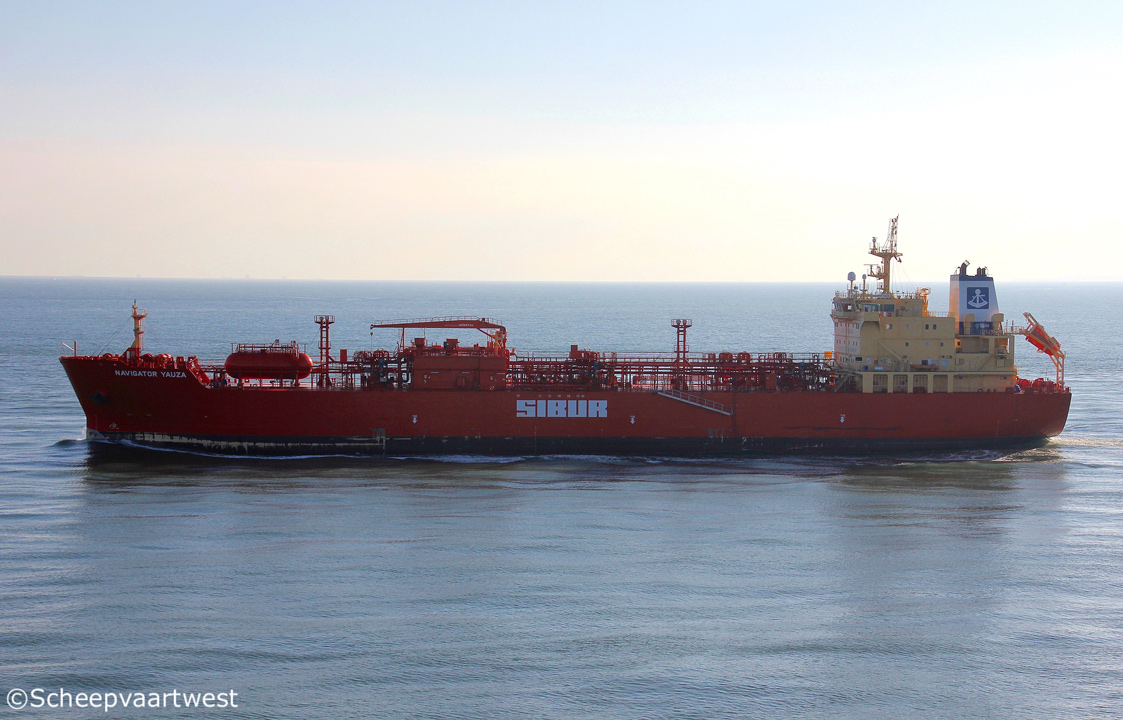

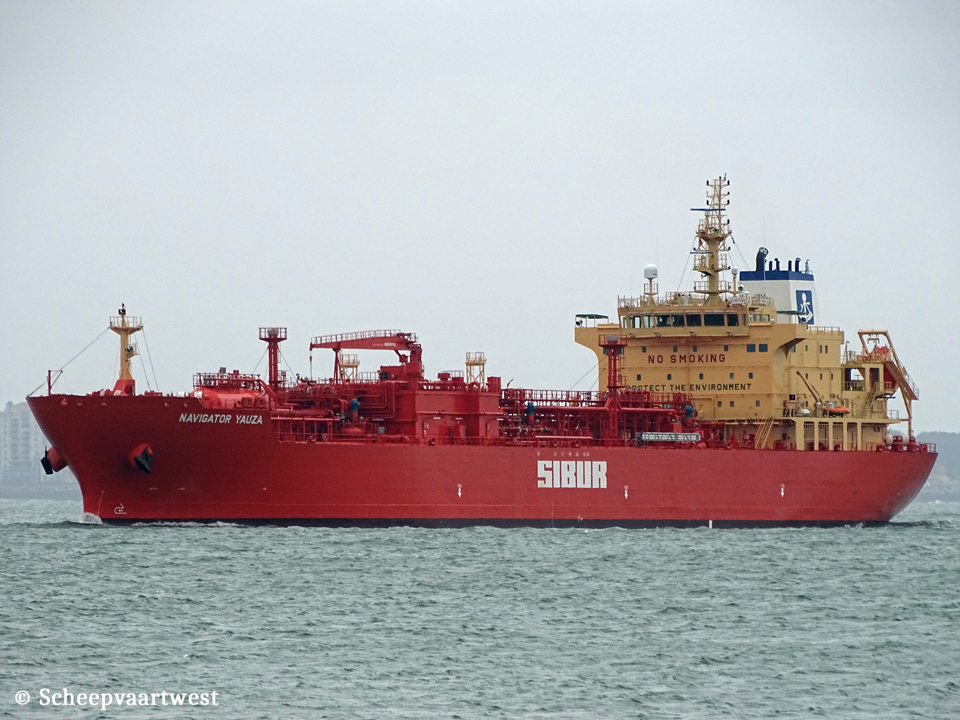

| Europoort (NL) 14/07/18 | Europoort (NL) 14/07/18 | Westerschelde 01/07/17 | ||
|
Name |
NAVIGATOR YAUZA |
|
Type |
Semi refrigerated liquefied gas tanker - LPG |
|
Main products |
Ammonia - Butadiene - Butane - Propane - Propylene (pgm) - Propylene Ox. - V.C.M. |
|
IMO-number |
9761176 |
|
Call sign |
D5KV8 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
18.219 t |
|
DWT |
19.002 t |
|
NT |
5.465 t |
|
Light ship |
9?412 t |
|
Length |
159,89 m overall 152,20 m between perpendiculars |
|
Breadth |
25,64 m extreme |
|
Draught |
7,51 m |
|
Keel to mast end |
45,40 m |
|
Depth |
16,40 m |
|
Speed |
16,0 knots |
|
Built |
2017 |
|
Keel laid |
22/12/2015 |
|
Launch date |
23/12/2016 |
|
Date of completion |
05/04/2017 |
|
Builder |
Hyundai Mipo Dockyard Co., Ltd. Ulsan South Korea |
|
Yard number |
8195 |
|
Hull material |
Steel |
|
Hull type |
Double bottom |
|
Main engine |
1x HHI/MAN-B&W 6S50ME-C8 - 6 cylinder500 x 2.000 mm combustion engine 7.860 kW / 10.540 hp at 129,0 rpm |
|
Propellers |
1x Fixed pitch mono-block propeller |
|
Boilers |
1x Auxiliary boiler, exhaust gas heated XS-2V 1x Auxiliary boiler, oil/gas fired OS-Tci |
|
Generators |
3x Hyundai/Himsen 6H21/32 main diesel generatorsets each 780 kW Builder: HD Hyundai Heavy Industries Co., Ltd. |
|
Emergency generator |
1x Doosan ADO86T1 diesel generatorset |
|
Number of tanks |
4x Bi-lobe |
|
Cargo tank capacity |
22.550 m³ |
|
Deck tanks |
2x Each 155 m³ |
|
Number of pumps |
6x Cargo pumps each 350 m³/h |
|
Tank capacities |
HFO: 1.969 m³ MGO: 271 m³ Fresh water: 385 m³ Ballast: 9.349,1 m³ |
|
Anchor equipment |
Length: 605,00 m Diameter: 62 mm |
|
Commercial manager |
Navigator Gas LLC The Verde, 10, Bressenden Place London, SW1E 5DH United Kingdom |
|
ISM manager |
Northern Marine Management Limited Alba House, 2, Central Avenue, Clydebank Business Park Clydebank, G81 2QR United Kingdom |
|
Registered owner |
Navigator Yauza LLC Care of Navigator Gas LLC The Verde, 10, Bressenden Place London, SW1E 5DH United Kingdom |
|
Latest data adjustment |
27 May 2024 |
