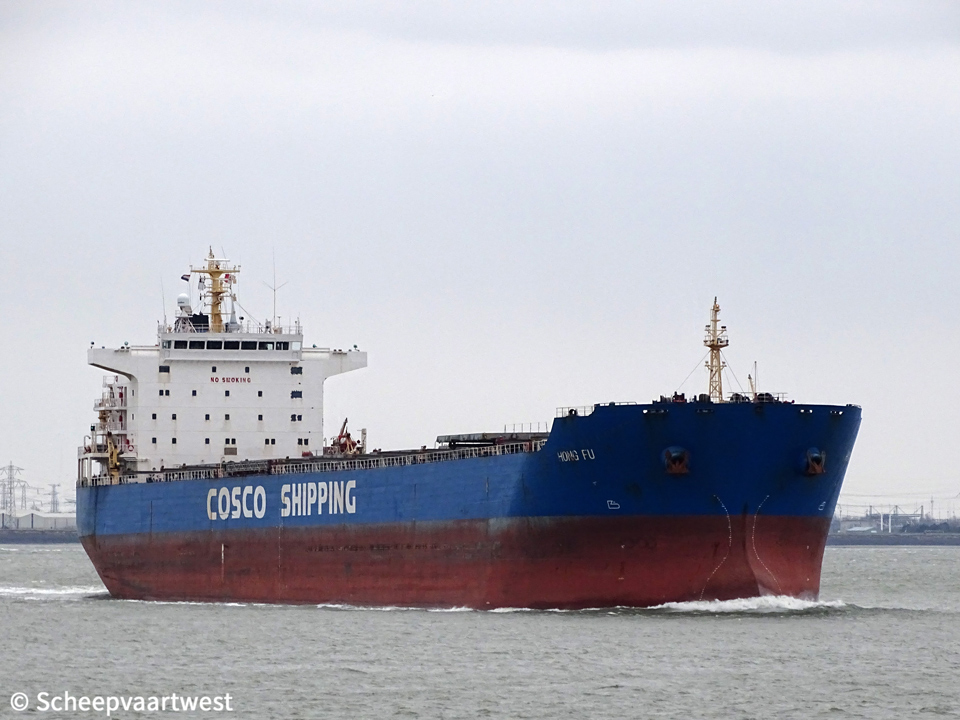

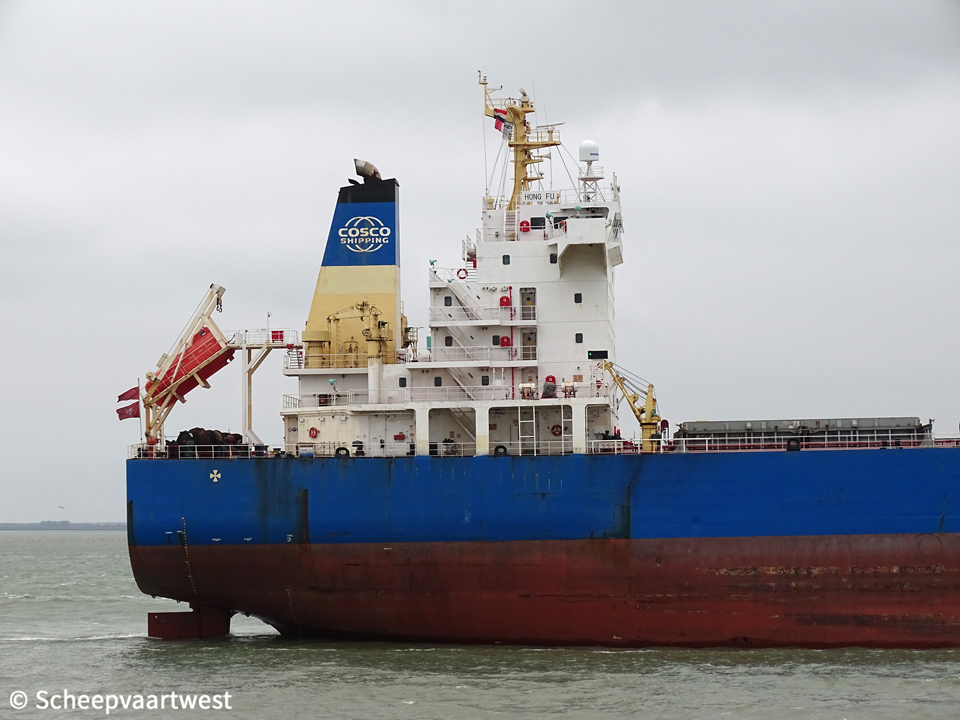

Westerschelde 14 March 2020 |
 |
 |
|
| Westerschelde 14/03/20 | Westerschelde 14/03/20 |
|
Name |
HONG FU |
|
Type |
Bulk carrier - Strengthened for heavy cargoes |
|
IMO-number |
9548550 |
|
Call sign |
VRFX7 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
GT |
40.896 t |
|
DWT |
Summer: 76.402 t |
|
NT |
25.825 t |
|
Length |
225,00 m overall 217,00 m between perpendiculars |
|
Breadth |
32,26 m moulded |
|
Draught |
Max: 12,20 m |
|
Forecastle |
14,80 m |
|
Deckhouse |
22,80 m |
|
Freeboard |
5.420 mm |
|
Depth |
19,60 m moulded |
|
Speed |
14,5 knots |
|
Built |
2009 |
|
Date of completion |
20/11/2009 |
|
Builder |
Shanghai Jiangnan Changxing Shipbuilding Co.,Ltd. Shanghai China |
|
Yard number |
H2430 |
|
Hull material |
Steel |
|
Bulkheads |
9 |
|
Continuous decks |
1x Upper deck |
|
Main engine |
1x Hudong/MAN-B&W 5S60MC MK6 - 5 cylinder combustion engine 8.833 kW at 105,0 rpm Build: 28/04/2009 Manufacturer: Heavy Machinery Co., Ltd., Shanghai - China |
|
Propellers |
1 |
|
Boilers |
1x 7,0 bar Heating surface: 24 m² Heating surface: 255 m² Manufacturer: Zhake(Qingdao)Marine Boiler Co., Ltd. |
|
Generators |
3x MAN-B&W 5L23/30H - 4 stroke 5 cylinder 225 x 300 diesel generator sets each 650 kW connected with 3 Taiyo FE 547A generators each 560 kW / 450 Volt |
|
Number of holds |
7 |
|
Cargo hold capacity |
Grain: Hold 1: 10.632,70 m³ Hold 2: 13.607,41 m³ Hold 3: 13.264,39 m³ Hold 4: 13.196,74 m³ Hold 5: 13.272,16 m³ Hold 6: 13.260,58 m³ Hold 7: 12.865,90 m³ Total: 90.099,88 m³ |
|
Number of hatches |
7 Hatch 1: 14,60 x 13,20 m Hatches 2-6: 15,48 x 14,40 m each |
|
Tank capacities |
Ballast: 34.871 m³ |
|
Cargo gear |
Gearless |
|
Manager |
COSCO HK Shipping Co. ltd. |
|
Operator |
COSCO Shipping Bulk Co., Ltd. |
|
Registered owner |
Marienvoy Shipping Ltd. c/c COSCO Shipping Co. Ltd. 51st Floor, COSCO Tower 183 Queen’s Road Hong Kong - China |
|
Latest data adjustment |
01 August 2020 |
