Westerschelde 30 September 2015 |
|
Name |

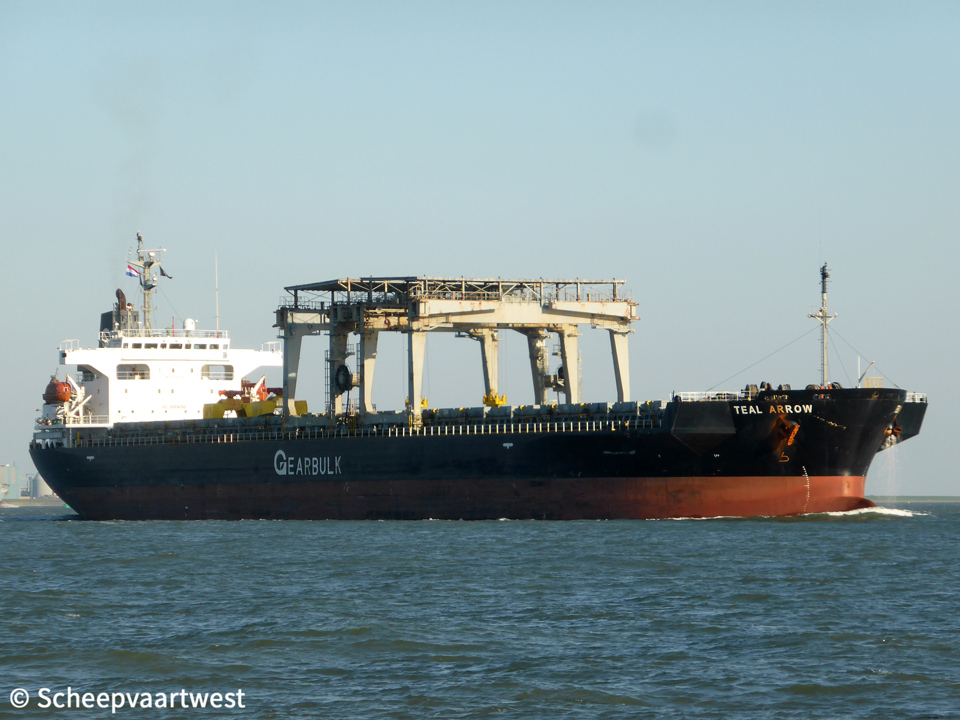

TEAL ARROW |
|
Previous names |
1999 - 10/2013 Pan Pic Spirit |
|
Type |
General cargo ship - Open hatch |
|
IMO-number |
9186780 |
|
Call sign |
3FAQ9 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
22.073 t registered |
|
DWT |
Summer: 36.466 t |
|
NT |
9.929 t registered |
|
Length |
173,00 m overall |
|
Breadth |
29,00 m moulded |
|
Draught |
Max: 10,98 m |
|
Moulded L x B x D |
165,00 x 29,00 x 15,50m |
|
Registered L x B x D |
165,06 x 29,00 x 15,50m |
|
Freeboard |
Summer: 4.566 mm |
|
Depth |
5,50 m moulded |
|
Speed |
Service: 14,5 knots Max: 15,8 knots |
|
Built |
1999 |
|
Keel laid |
26/06/1998 |
|
Launch date |
12/11/1998 |
|
Date of completion |
10/02/1999 |
|
Builder |
Oshima Shipbuilding Co., Ltd. Saikai Japan |
|
Yard number |
10254 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x Kawasaki/MAN-B&W 6S46MC- - 2 stroke single acting 6 cylinder 450 x 1.932 mm combustion 7.046 kW at 122,0 rpm Manufacturer: Kawasaki Heavy Industries, Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 456 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical boiler - 6,9 bar Evaporation: 2,20 t/h Manufacturer: Osaka Boiler Mfg., Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 900 kW |
|
Nuber of holds |
5 |
|
Cargo hold capacity |
Grain: 38.174 m³ |
|
Number of hatches |
5 |
|
Tank capacities |
Fuel oil: 1.865 m³ Fresh water: 390 m³ |
|
Cargo gear |
2x Cranes - SWL 22,4 t each |
|
Crew |
21 |
|
Manager |
Gearbulk Norway AS Damsgårdsveien 165 5160 Laksevåg Bergen Norway |
|
Registered owner |
Gearbulk Shipowning Limited |
|
Latest data adjustment |
08 August 2020 |
