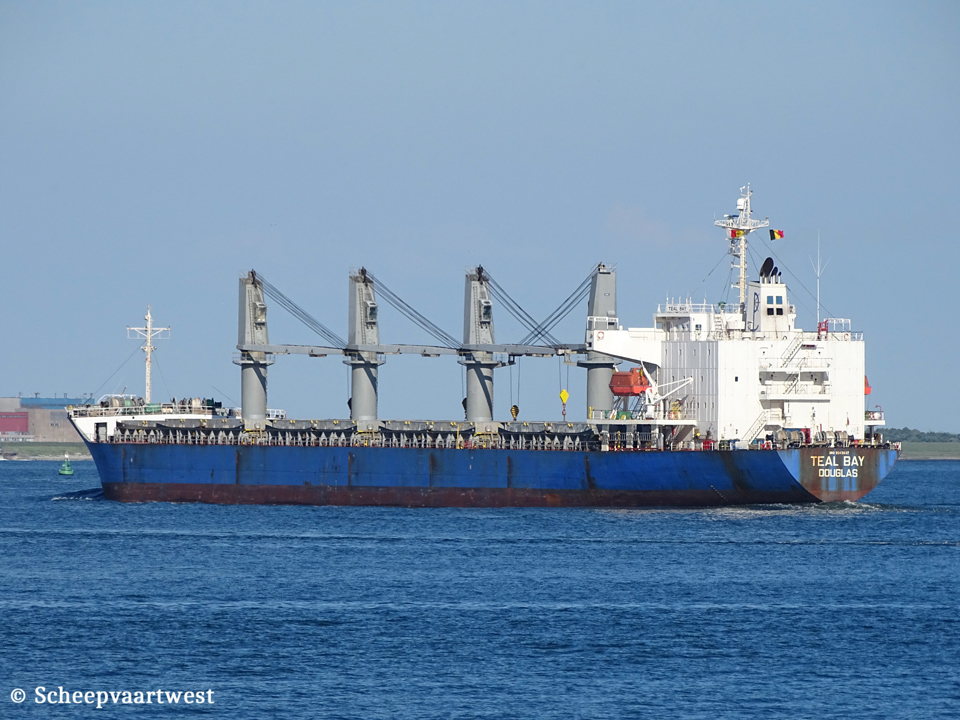

Westerschelde 21 June 2019 |
|
Name |
TEAL BAY |
|
Previous names |
2007 - 12/2009 Beacon SW Bulker 12/2009 - 01/2014 Beacon SW |
|
Type |
Open hatch general cargo (single deck) |
|
IMO-number |
9343637 |
|
Call sign |
2HDY3 |
|
Flag |
Isle of Man - United Kingdom |
|
Port of registry |
Douglas |
|
Previous flags |
2009 - 2018 Republic of Panama, Panama City - Call sign: 3EMX3 |
|
GRT |
20.236 t |
|
DWT |
Summer: 32.327,29 t Winter: 31.415,50 t |
|
NRT |
10.947 t |
|
Displacement |
Summer: 39.677,82 t Winter: 38.766,03 t |
|
Length |
177,13 m overall 168,50 m between perpendiculars |
|
Breadth |
28,40 m extreme |
|
Draught |
Summer: 10,02 m Winter: 9,81 m |
|
Freeboard |
Summer: 4.292 mm Winter: 4.500 mm |
|
Depth |
14,25 m moulded |
|
Speed |
14,2 knots |
|
Built |
2007 |
|
Keel laid |
17/04/2006 |
|
Launch date |
19/07/2007 |
|
Date of completion |
13/11/2007 |
|
Builder |
Kanda Zosensho K.K. Kawajiri Japan |
|
Yard number |
482 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x Mitsubishi-Kobe Hatsudoki 6UEC52LA - 2 stroke 6 cylinder combustion engine 6.620 kW at 125,0 rpm Manufacturer: Mitsubishi Heavy Industries, Ltd., Kobe Shipyard & Machinery Works |
|
Propellers |
1x Fixed mono-block propeller |
|
Boilers |
1x Auxiliary boiler, composite Manufacturer: Osaka Boiler Mfg. Co. Ltd. |
|
Generators |
3x Yanmar 6N18(A)L-DV - 4 stroke 6 cylinder 180 x 280 mm main diesel each 500 kW connected with generators each 440 ekW Manufacturer: Yanmar Power Technology Co., Ltd. |
|
Number of holds |
5 |
|
Cargo hold capacity |
Grain: 42.595 m³ Bale: 41.124 m³ |
|
Number of hatches |
5 Hatch 1: 13,60 x 18,80 m Hatches 2,3,4: 20,80 x 24,00 m Hatch 5: 19,20 x 24,00 m |
|
Tank capacities |
Fuel oil: 1.934 m³ Fresh water: 230 m³ Ballast: 12.360,32 m³ |
|
Anchor equipment |
Length: 605,00 m Diameter: 64 mm |
|
Cargo gear |
4x Hydraulic deck cranes - SWL 30,0 t each |
|
Crew |
22 |
|
Manager |
V Ships Ship Management (India) Pvt. Ltd. |
|
ISM manager |
Pioneer Marine Advisers Pte 19-08, Prudential Tower, 30 Cecil Street Singapore 049712 Republic of Singapore |
|
Operator |
Pioneer Marine Inc. 130 Vouliagmenis Av & 1 Themistokleous Street 16674 Glyfada, Athens Greece |
|
Owner |
PNR Marine Trading VIII LLC Care of Pioneer Marine Advisers Pte Ltd. 3 Harbourfront Pl Singapore 099254 Republic of Singapore |
|
Latest data adjustment |
11 July 2021 |
