Westerschelde 24 December 2019 |
|
Name |

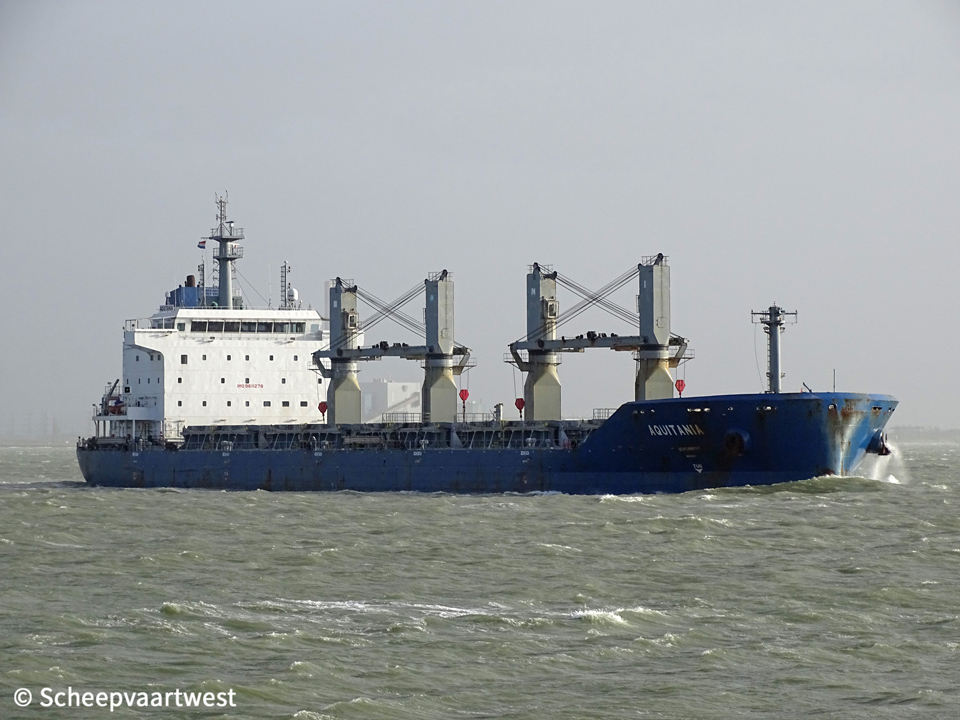

AQUITANIA |
|
Type |
Bulk carrier - Carriage of dangerous goods - Single deck bulk carrier, partly box shaped |
|
IMO-number |
9611278 |
|
Call sign |
9V9349 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
GT |
24.166 t Suez: 25.328,49 t |
|
DWT |
35.938 t |
|
NT |
11.556 t Suez: 22.347,97 t |
|
Displacement |
46.141 t |
|
Length |
179,96 m overall 176,75 m between perpendiculars |
|
Breadth |
30,00 m moulded |
|
Draught |
Summer: 10,10 m |
|
Keel to highest point |
47,00 m |
|
Freeboard |
4.414 mm |
|
Depth |
14,71 m moulded |
|
Speed |
13,5 knots fully laden 14,0 knots ballast |
|
Built |
2012 |
|
Keel laid |
18/03/2011 |
|
Delivery date |
07/05/2012 |
|
Builder |
ZCHI Shipbuilding Co., Ltd. Xinggang Industrial Park Zhoushan, 316013 China |
|
Yard number |
ZC3001 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W 5S50ME-B8 - 2 stroke 5 cylinder 500 x 2.000 mm combustion engine 8.725 kW at 99,0 rpm Manufacturer: Jiangsu Antai Power Machinery Co., Ltd. |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Fired exhaust gas boiler - 9,0 MPa Manufacturer: Saacke Qingdao Marine Boiler Co.,Ltd. |
|
Generators |
3x Daihatsu 5DK-20 main diesel generatorsets each 650 kW Builder: Daihatsu Diesel Mfg Co., Ltd. |
|
Number of holds |
5 Hold 1: 27,50 x 15,69/26,60 m Hold 2,3,4,5: 28,30 x 26,60 m |
|
Cargo hold capacity |
Grain: Hold 1: 7.948 m³ Hold 2: 9.790 m³ Hold 3,4: 9.791 m³ Bold 5: 9.428 m³ Total: 36.957 m³ Bale: Hold 1: 7.819 m³ Hold 2,3,4: 9.525 m³ Hold 5: 9.276 m³ Total: 26.620 m³ |
|
Number of hatches |
5 Hatch 1: 16,00 x 15,00/18,70 m Hatches 2,3,4,5: 19,20 x 20,30 m |
|
Hatch type |
Folding type hatches |
|
Max permitted loads |
Tanktop: 22,0 t/m² Main deck: 2,5 t-m² Hatch covers: 2,5 t/m² |
|
Tank capacities |
Fresh water: 249,30 m³ Ballast: 12.948,90 m³ Diesel oil: 213,80 m³ Fuel oil: 1.734,6 m³ Lub oil: 100,40 m³ |
|
Lifting equipment |
Engine room crane Provision crane |
|
Cargo gear |
4x Deck cranes - SWL 30,0 t each 4x Grabs each 12,0 m³ |
|
Manager |
FH Bertling Reederei GmbH Willy-Brandt-Straße 49 20457 Hamburg Germany |
|
Registered owner |
FH Bertling Alentejo Shipping Pte. Ltd. (Aquitania Shipping Pte Ltd.) |
|
Latest data adjustment |
22 September 2020 |
