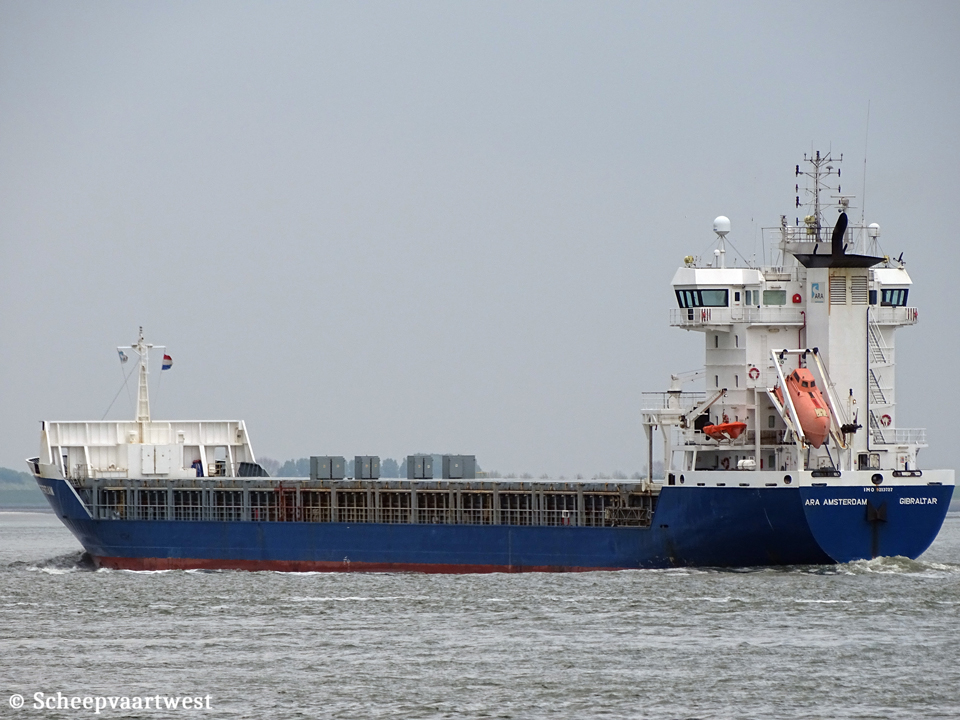

| Westerschelde 05 May 2017 |
|
Name |
ARA AMSTERDAM |
|
Previous names |
2000 - 2003 Malte Rambow 2003 - 2013 Annalisa 2013 - 2018 ARA Amsterdam |
|
Type |
General cargo ship - Strengthened for heavy cargo - Equipped for carriage of containers |
|
IMO-number |
9213727 |
|
Call sign |
ZDNR5 |
|
Flag |
Gibraltar |
|
Port of registry |
Gibraltar |
|
Previous flags |
06/2000 - 12/2003 Germany 12/2003 - 08/2013 Antigua & Barbuda, St. John’s - Call sign: V2BQ4 |
|
GT |
6.154 t |
|
DWT |
8.733,71 t with grain bulkheads |
|
NT |
3.424 t |
|
Number of 20ft containers |
In Hold: 264 On deck: 288 Total: 552 |
|
Container capacity 14t |
356 |
|
Reefer capacity |
50 |
|
Length |
132,20 m overall 123,84 m between perpendiculars |
|
Breadth |
15,92 m extreme 15,87 m moulded |
|
Draught |
Summer: 7,05 m |
|
Depth |
9,65 m moulded |
|
Speed |
Laden: 12,0 knots Eco: 11,0 knots Ballast: 13,0 knots |
|
Built |
2000 |
|
Keel laid |
30/06/1998 |
|
Launch date |
17/04/2000 |
|
Date of completion |
01/06/2000 |
|
Builder |
Bodewes Scheepswerf 'Volharding' Foxhol B.V. Scheepswervenweg 14 9607 PX Hoogezand The Netherlands |
|
Yard number |
351 |
|
Hull material |
Ship building steel (higher tensile) |
|
Hull type |
Partly double bottom (e.g. interrupted in way of machinery space) |
|
Movable bulkheads |
2x Moveable bulkheads, 8 store positions |
|
Continuous decks |
2 |
|
Main engine |
1x Wärtsilä 6L38B - 4 stroke 6 cylinder 380 x 475 mm combustion engine 4.199 kW at 600 rpm Year of manufacture: 2000 Manufacturer: Wärtsilä Netherlands B.V. Hanzelaan 95 8017 JE Zwolle The Netherlands |
|
Propellers |
1x Controllable pitch propeller - aft at 148,0 rpm |
|
Boilers |
1x Thermal oil heater, oil fired - 13,0 bar Heating surface: 17,5 m² Year of manufacture: 1999 Manufacturer: Apparate- und Kesselbau AKB GmbH Baiertaler Str. 98 69168 Wiesloch Federal Republic of Germany 1x Thermal oil heater, exhaust gas heated - 13,0 bar Heating surface: 55,0 m² Year of manufacture: 1999 Manufacturer: W.L. Feenstra Noorderkade 13 8861 HJ Harlingen The Netherlands |
|
Electric installations |
2x Plant 440/220 V - 244 kVA 1x Plant 440 V - 813 kVA 1x Plant 440 V - 50 kVA |
|
Shaft generator |
1x 600 kW / 813 kVA |
|
Generators |
2x Scania DI 1245M04E main diesel generatorsets each 244 kVA |
|
Emergency generator |
1x Sisu/Valmet420 DSG diesel generator set 50 kVA |
|
Compressed air receivers |
2x Receivers each 250 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster - 500 kW, forward |
|
Number of holds |
2 Hold 1: 39,96 x 13,20 x 10,89 m Hold 2&3: 26,20 x 13,20 x 10,89 m |
|
Hold capacity |
Grain & bales:12.813 m³ / 448.500 ft |
|
Number of hatches |
3 Hatch 1: 39,96 x 13,20 m Hatch 2&3: 26,20 x 13,20 m |
|
Hatch type |
Steel hatch covers pontoon type with handling crane - 14 panels |
|
Max permitted loads |
Tanktop: 15,0 t/m² Hatches: 1,75 t/m Tweendeck: 3,50 t/m² |
|
Tank capacities |
Fuel oil: 465 m³ Gas oil: 47,27 m³ Fresh water: 71,0 m³ Water ballast: 3.718,5 m³ |
|
Anchor equipment |
3x Anchors weight each 3.300 kg Chain length: 495,00 m Diameter: 46 mm |
|
Lifting equipment |
1x Coops & Nieborg - SWL 20 t Gantry crane |
|
Manager |
ARA Shipmanagement B.V. Sijlweg 18 - 20 4251 NS Werkendam The Netherlands |
|
Renamed |
2018 Airisto Finland - Call sign: OJSK Owner & manager: Aalto Shipping Company Oy - Finland |
|
Latest data adjustment |
15 September 2022 |
