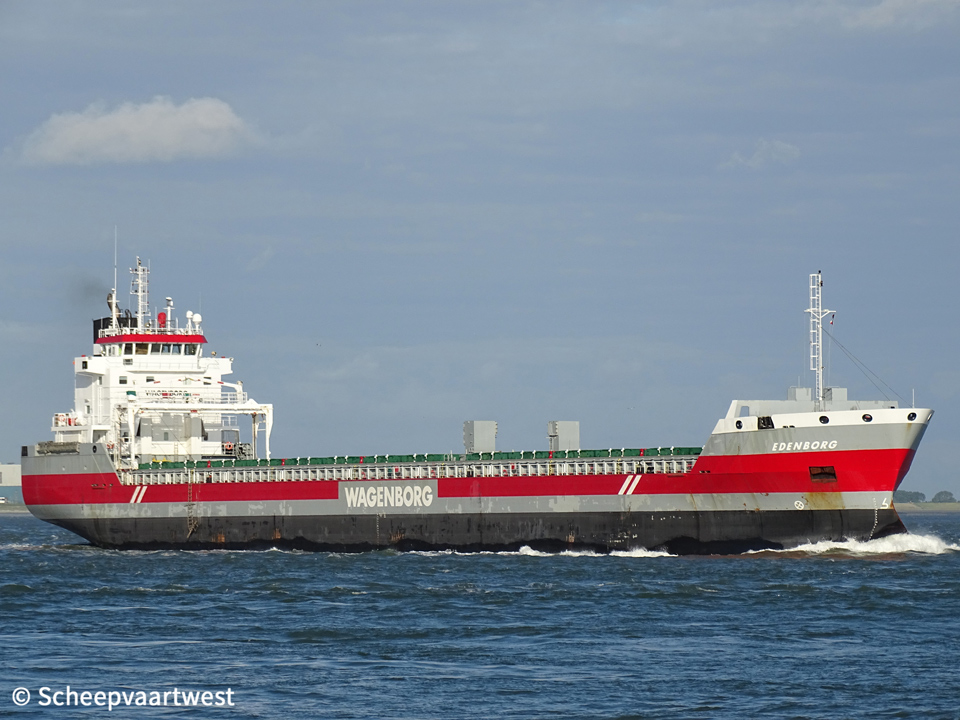

Edenborg 01

Westerschelde 05 July 2016

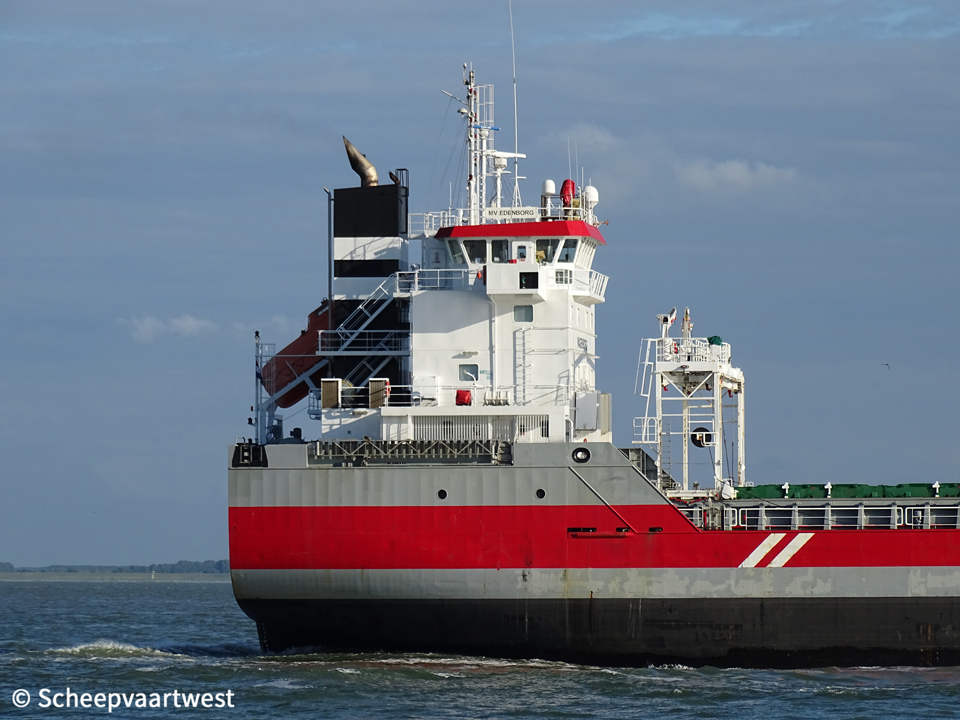

Edenborg 02
Westerschelde 05/07/16









Name

EDENBORG

Type

Multi-purpose general cargo ship - Box shaped/ Single-decker

IMO-number

9463449

Call sign

PCCW

Flag

The Netherlands

Port of registry

Delfzijl

GT

7.196 t

DWT

Summer: 10.750 t

DWCC

Summer: 10.200 t

NT

3.607 t

Number of 20ft containers

432

Length

137,90 m overall

131,50 m between perpendiculars

Breadth

15,87 m

Draught

Summer: 7,98 m

Air draft

30,63 m in ballast

Depth

11,00 m moulded

Speed

Service: 13,7 knots

Economic: 12,0 knots

Built

2010

Keel laid

09/09/2008

Launch date

17/03/2010

Date of completion

04/06/2010

Builder

Koninklijke Niestern Sander B.V.

Delfzijl

The Netherlands

Yard number

840

Hull material

Steel

Hull type

Single hull

Movable bulkheads

2

Continuous decks

1

Main engine

1x Wärtsilä 9L32C - 4 stroke single acting - cylinder 320 x 400 mm combustion engine 4.500 kW at 750 rpm

Propellers

1x Controllable pitch propeller - 4 blades

Diameter: 4.200 mm

Shaft generator

1x 956 kVA / 765 kW

Generators

2x Main diesel generatorsets 330 kVA - 264 kW - 380 hp

Emergency generator

1x Diesel generatorset 155 kVA - 124 kW - 177 hp

Bow thruster

700 kW

Number of holds

2

Hold 1: 41,44 x 13,20 x 11,23 m

Hold 2: 54,76 x 13,20 x 11,23 m

Both holds are open hatch, no understow, double skinned

Holds are fully box and square except box structures in fore and aft part due to vessel's outer shape

Cargo hold capacity

Grain/bale:

Hold 1: 197.987 ft³

Hold 2: 283.850 ft³

Total: 481.837 ft³

Hold ventilation

Holds are equipped with electrical ventilation, 12 air changes per hour basis empty holds

Both holds are fitted with de humidifier system

Number of hatches

2

Hatch 1: 41,44 x 13,20 m

Hatch 2: 54,76 x 13,20 m

Hatch type

Coops & Nieborg pontoon hatchcovers

Max permitted loads

Tanktop: 15,0 t/m²

Tween deck: 3,5 t/m²

Weatherdeck: 1,75 t/m²

Tank capacities

HFO: 881 m³

MGO: 72 m³

Water ballast: 4.222 m³

Fresh water: 56 m³

Manager

Wagenborg Shipping B.V.

Delfzijl

The Netherlands

Registered owner

Scheepvaartonderneming Edenborg B.V.,

Delfzijl

The Netherlands

Latest data adjustment

02 October 2020
