Westerschelde 22 July 2019 |
|
Name |

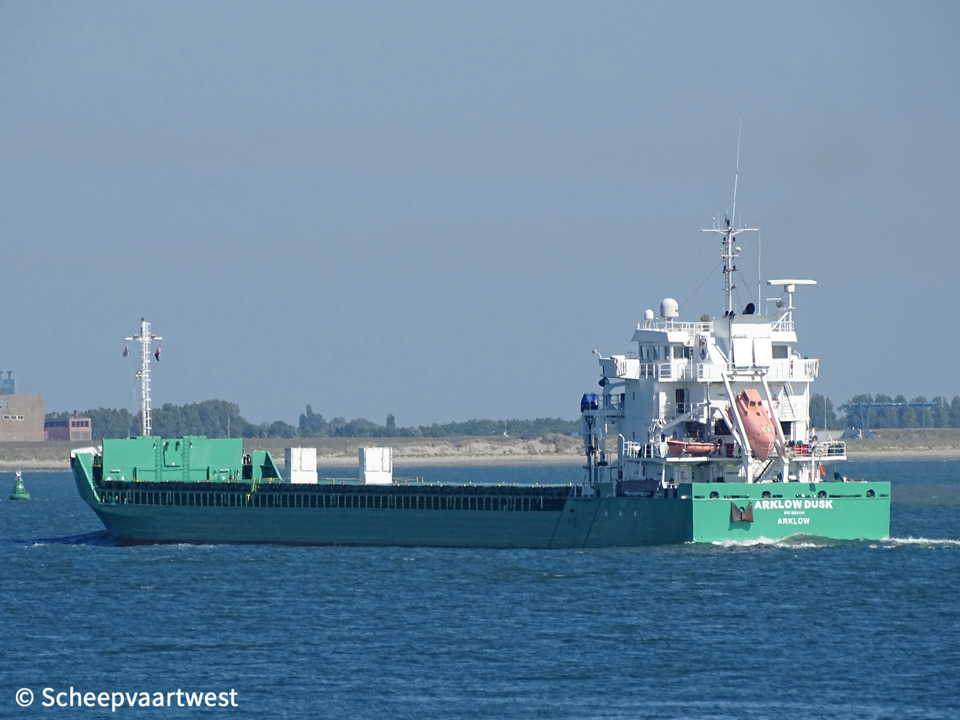

ARKLOW DUSK |
|
Previous names |
05/2010 - 01/2017 Flinter America 01/2017 - 05/2018 America |
|
Type |
General cargo ship - Container ship - Heavy cargo |
|
IMO-number |
9504114 |
|
Call sign |
PDTS |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
Previous flags |
2010 - 2018 The Netherlands, Rotterdam- Call sign: PBNH 2018 - 2020 Ireland, Arklow - Call sign: EITT7 |
|
GT |
6.621 t |
|
DWT |
Summer: 10.806 t Winter: 10.539 t |
|
NT |
3.448 t |
|
Number of 20ft containers |
360 |
|
Container capacity 14t |
296 |
|
Length |
132,60 m overall 126,35 m between perpendiculars |
|
Breadth |
15,87 m moulded |
|
Draught |
Summer: 7,83 m Winter: 7,67 m Ballast: 7,53 m |
|
Air draft |
Min: 34,40 m |
|
Freeboard |
2.955 mm |
|
Depth |
10,78 m to main deck |
|
Speed |
Max: 14,1 knots |
|
Built |
2010 |
|
Launch date |
10/04/2010 |
|
Date of completion |
07/05/2010 |
|
Builder |
Scheepswerf Ferus Smit B.V. Westerbroek The Netherlands |
|
Yard number |
397 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 8M32 - 4 stroke single acting 8 cylinder 320 x 480 mm combustion engine 4.000 kW / 5.435 hp at 600 rpm Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Propellers |
1x Screw propeller controllable pitch - aft at 159 rpm |
|
Shaft generator |
1x 850 kVA - 680 kW |
|
Generators |
2x Mitsubishi main diesel generatorsets each 388 kVA - 310 kW |
|
Emergency generator |
1x Diesel generatorset 131 kVA - 105 kW |
|
Bow thruster |
1x Electric Bow thruster 573 kW |
|
Number of holds |
2 Hold 1: 32,50 x 13,20 x 10,62 m Hold 2: 64,00 x 13,20 x 10,62 m |
|
Cargo hold capacity |
Bale & Grain: Hold 1: 4.157,71 m³ / 146.828 ft³ Hold 2: 8.851,08 m³ / 312.573 ft³ Total: 13.008,79 m³ / 459,401 ft³ |
|
Hold ventilation |
Mechanical ventilation: 6 changes per hour in empty holds |
|
Number of hatches |
2 Hatch 1: 32,52 x 13,20 m Hatch 2: 64,00 x 13,20 m |
|
Hatch type |
Pontoon |
|
Max permitted loads |
On hatches: 1,75 t/m² Tanktop: 15,0 t/m² |
|
Tank capacities |
HFO: 372 m³ (90%) MGO: 105 m³ (90%) Fresh water: 52 m³ Water ballast: 4.356 m³ |
|
Lifting equipment |
Gantry Crane fitted with two derricks |
|
ISM & commercial manager |
Arklow Shipping Nederland B.V. Hoofdweg 18 3067 GH Rotterdam The Netherlands |
|
Previous managers |
05/2010 - 01/2017 Flinter Management B.V., Barendrecht - The Netherlands 01/2017 - 05/2018 Thorco Shipping A.S., Hellerup - Denmark 05/2018 - 07/2020 Arklow Shipping Ltd., Arklow - Ireland |
|
Registered owner |
Arklow Shipping Nederland B.V. Hoofdweg 18 3067 GH Rotterdam The Netherlands |
|
Previous names & owners |
05/2010 - 01/2017 Flinter America - Flinter America B.V., Rotterdam - The Netherlands 01/2017 - 05/2018 America - America Shipping B.V., Rotterdam - The Netherlands 05/2018 - - 07/2020 Arklow Dusk - Kilbride Shipping Ltd., Arklow - Ireland |
|
Renamed |
20/01/2022 Launkalne Cyprus, Limassol - Call sign: 5BYP5 Manager: Grona Shipmanagement G.m.b.H. & Co. K.G., Leer - Germany Owner: Imavere Shipping Company Limited, Limassol - Cyprus |
|
Latest data adjustment |
15 March 2022 |
